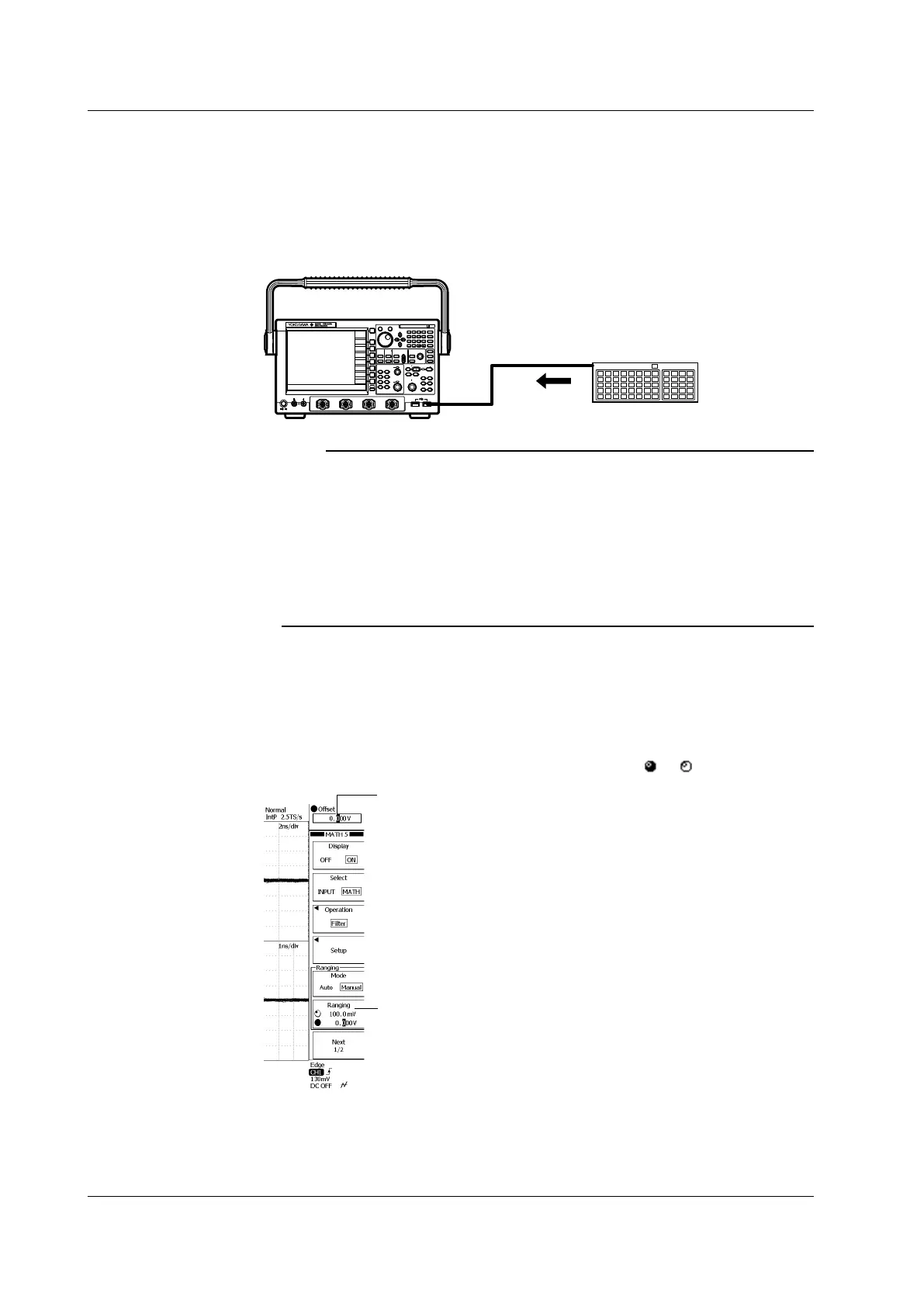

Connection Procedure
When connecting a USB keyboard, directly connect the keyboard to the DL9000
using a USB cable as shown below. You can connect the USB cable regardless of
whether the power to the DL9000 is ON or OFF (supports hot-plugging). Connect the
type A connector of the USB cable to the DL9000; connect the type B connector to
the keyboard. When the power switch is ON, the keyboard is detected and enabled
approximately six seconds after it is connected.
USB keyboard
USB cable
ESC
SNAP
SNAP CLEAR
RESET SET
7 8 9 BS
PRINT
FILE
SHIFT
SYSTEM
EXP
CLEAR
M
MENU
FILE UTILITY
D E F X
k m
u n p
4 5 6
1 2 3
0
+/-
CA B
CURSOR
PARAM
TELECOM TEST
WINDOW 1
WINDOW 2
FORM
ACCUM CLEAR
ZOOM 1
ZOOM 2
DISP 2 HISTORY CLEAR
DISP 1
MAG
INTENSITY
SETUP
HELP
HISTORY
MEASURE ANALYSIS
XY
DISPLAY ZOOM
ACCUM
PUSH FINTE
CH 1
CH 2
CH 3
CH 4
M 1
M 2
M 3
M 4
VERTICAL POSITION
PUSH
FINTE
SCALE
ACQ START STOP
TRIG MODE
HOLD OFF
POSITION
DELAY
EDGE
STATE
ACQUIRE
HORIZONTAL
TRIGGER
T DIV
ACQ COUNT ACTION
TRIG’D
LEVEL
COUPLING
EVENT
INTERVAL
WIDTH
SOURCE
ENHANCED
SAMPLING
LENGTH
CH 1
POWER
COMP
CH 2 CH 3 CH 4
DL9000
Note
• Do not connect USB devices other than a compatible USB keyboard, USB mouse, USB
printer, and USB storage to the USB connector for connecting peripheral devices.
• Do not connect multiple keyboards. Only 1 keyboard, 1 mouse, and 1 printer can be
connected.
• Do not connect and disconnect multiple USB devices successively. Allow at least ten
seconds between the connection and disconnection of a USB device and the connection
and disconnection of the next USB device.
• Do not disconnect the USB cable after the power is turned ON until key operation becomes
possible (approximately 20 to 30 s).
Entering File Names, Comments, and Other Items
When a keyboard is displayed on the screen, you can enter the file name, comment, and
other items using a USB keyboard.
Entering Values from a USB Keyboard
You can enter values from a USB keyboard for items with the or mark.
Press the corresponding soft key, and then enter
the value using the USB keyboard.
Press the Enter key to enter the value.
Value entered using the keyboard
4.3 Operating the DL9000 Using a USB Keyboard or a USB Mouse
