5-20
IM MV1000-01E

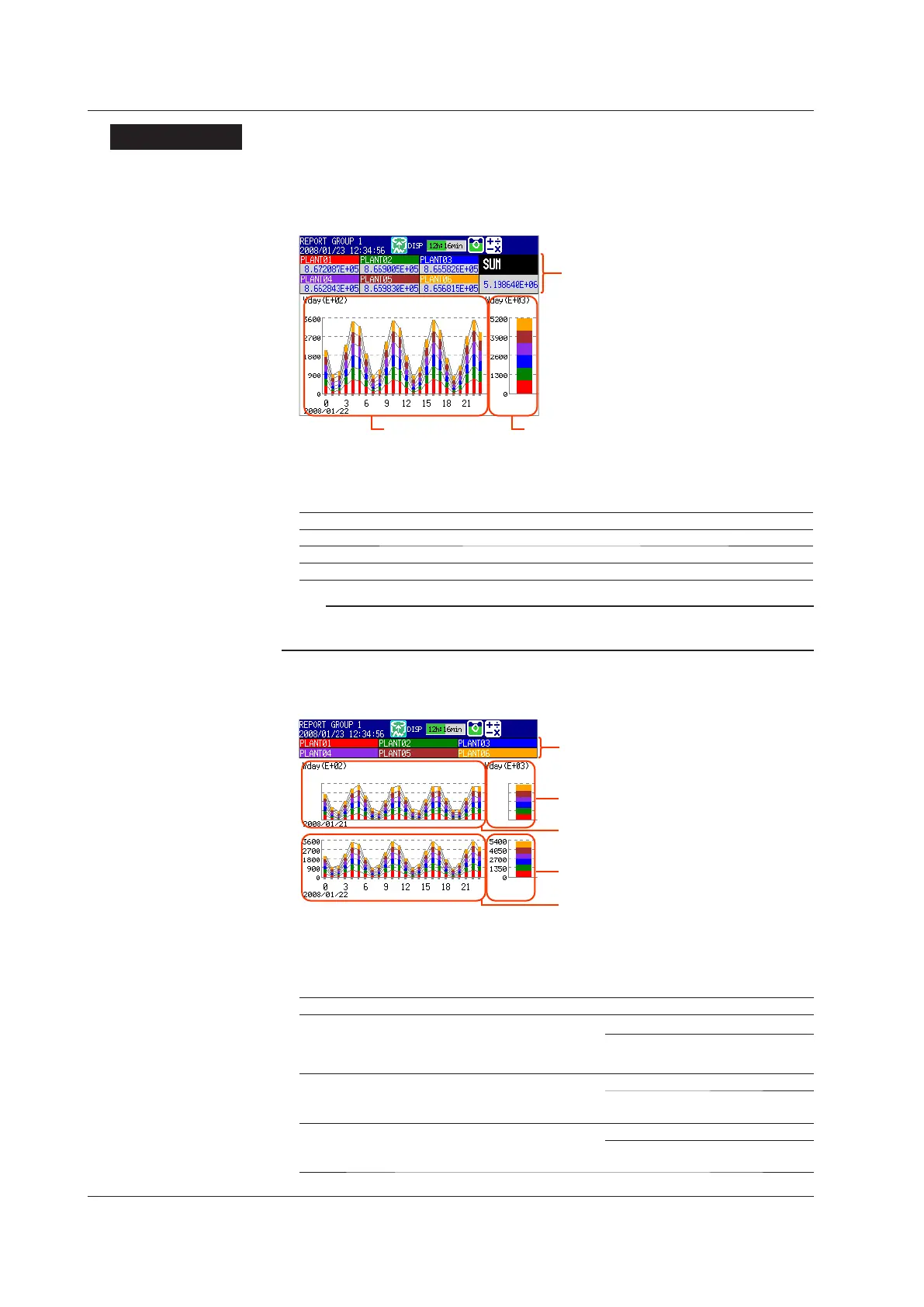

Explanation
• SINGLE GRAPH/DUAL GRAPH
You can display one or two bar graphs. The periodic sums of the rst channel in a
group and of all other channels that have the same unit as it are displayed.
• SINGLE GRAPH display
Numeric display section
Display area 1
Display area 2
The report data displayed in display areas 1 and 2 vary depending on the report
type (Report kind).
Report kind Display Area 1 Display Area 2
Hourly, or hourly + daily Hourly data Daily data
Daily + weekly Daily data Weekly data
Daily, or daily + monthly Daily data Monthly data
Note
When in 4-panel display, the numeric display section only contains channel names or tag
names.
• DUAL GRAPH display
Shows the data from two consecutive periods at the top and bottom of the display.
Channel number or tag name
Numbers are abbreviated.
Display area 1
Display area 3
Display area 4
Display area 2
The data type shown in display areas 1, 2, 3, and 4 are determined based on the
report type (Report kind) set in the report function. Display areas 1 and 2 contain
the same report data listed above for SINGLE GRAPH display.
Report kind Display Area 1 Display Area 2 Display Area 3 Display Area 4
Hourly, or
hourly + daily
Hourly data Daily data Hourly data Daily data
The data of the day before the data
in display area 1 and 2
Daily + weekly Daily data Weekly data Daily data Weekly data
The data of the week before the
data in display area 1 and 2
Daily, or daily
+ monthly
Daily data Monthly data Daily data Monthly data
The data of the month before the
data in display area 1 and 2
5.6 Displaying Stacked Bar Graphs (COLUMN BAR)
