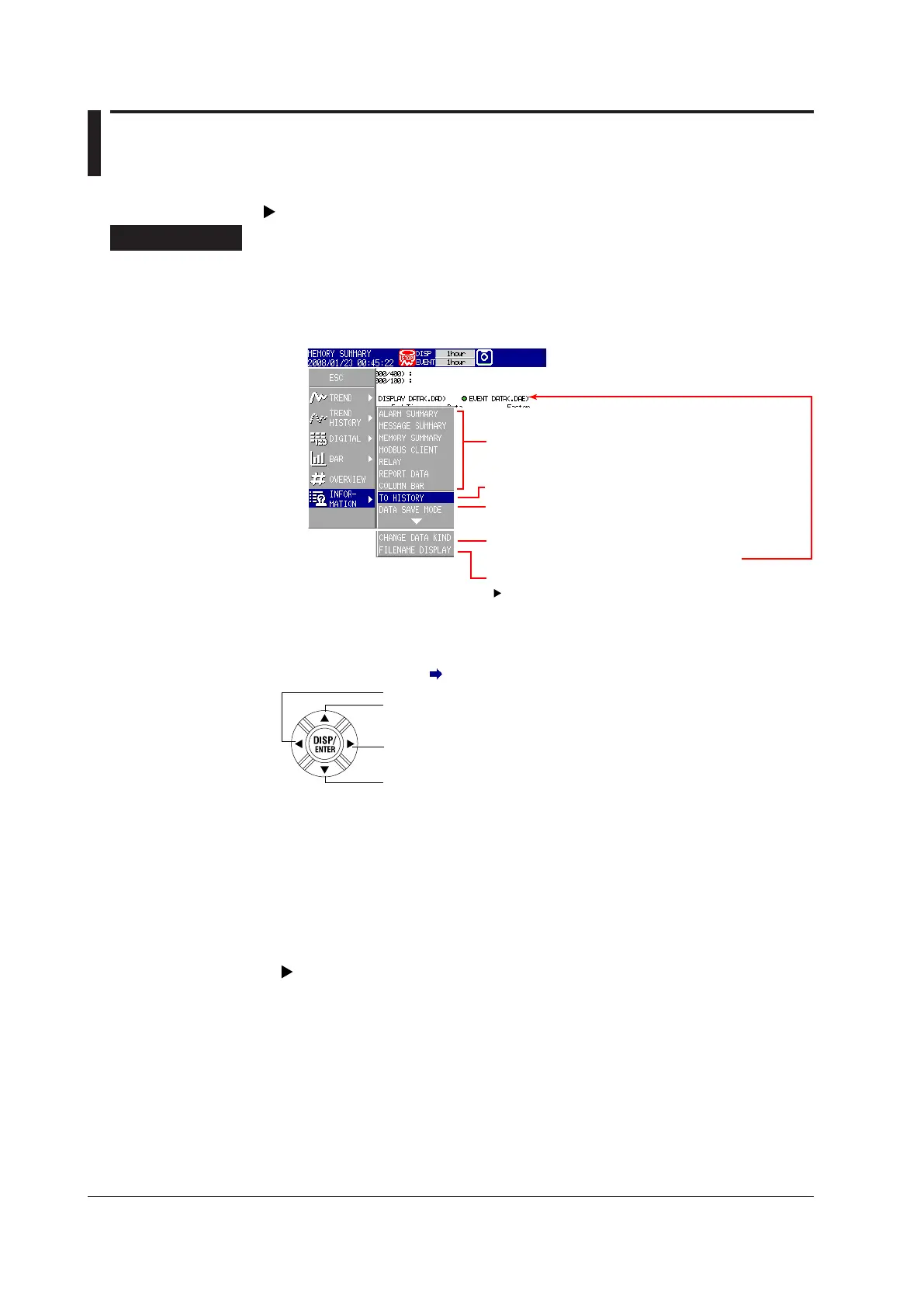

5.9 Using the Memory Summary
This section explains how to use the memory summary.
For an explanation of this display, see section 1.4.
Procedure
• Changing Display Settings
1.
Press DISP/ENTER to open the display selection menu.
2.
Press the right arrow key to open the submenu.
3.
Select a submenu item with the up and down arrow keys.
FILENAME DISPLAY: Displays the file name.
For a description of file names, see section 1.5.
TO HISTORY: Switches to the historical trend display.
DATA SAVE MODE: Switches to the data save mode
display.
CHANGE DATA KIND: Switches between display
data and event data.
Display name: Switches to the specified display.
The displayed data type is indicated
with a green mark.
4.
Press DISP/ENTER to change the display setting.
To close the menu without changing the display, press ESC.
• Moving the Cursor ( ) and Scrolling through Memory Information
Scrolls the memory information up by half a page
Moves the cursor up
Scrolls the memory information down by half a page
Moves the cursor down
• Opening the Historical Trend of the Specified Data
1.
Select the data with the cursor.
2.
Use the operations outlined in “Changing Display Settings” to open the historical
trend display.
• Saving Data
To save the data in the internal memory to a CF card or to USB ash memory
For an explanation of this function, see section 1.4.
1.
Press DISP/ENTER to open the display selection menu.
2.
Press the right arrow key to open the submenu.
3.
Select DATA SAVE MODE with the up and down arrow keys.
4.
Press DISP/ENTER.
The display switches to DATA SAVE MODE.
To Next Page
