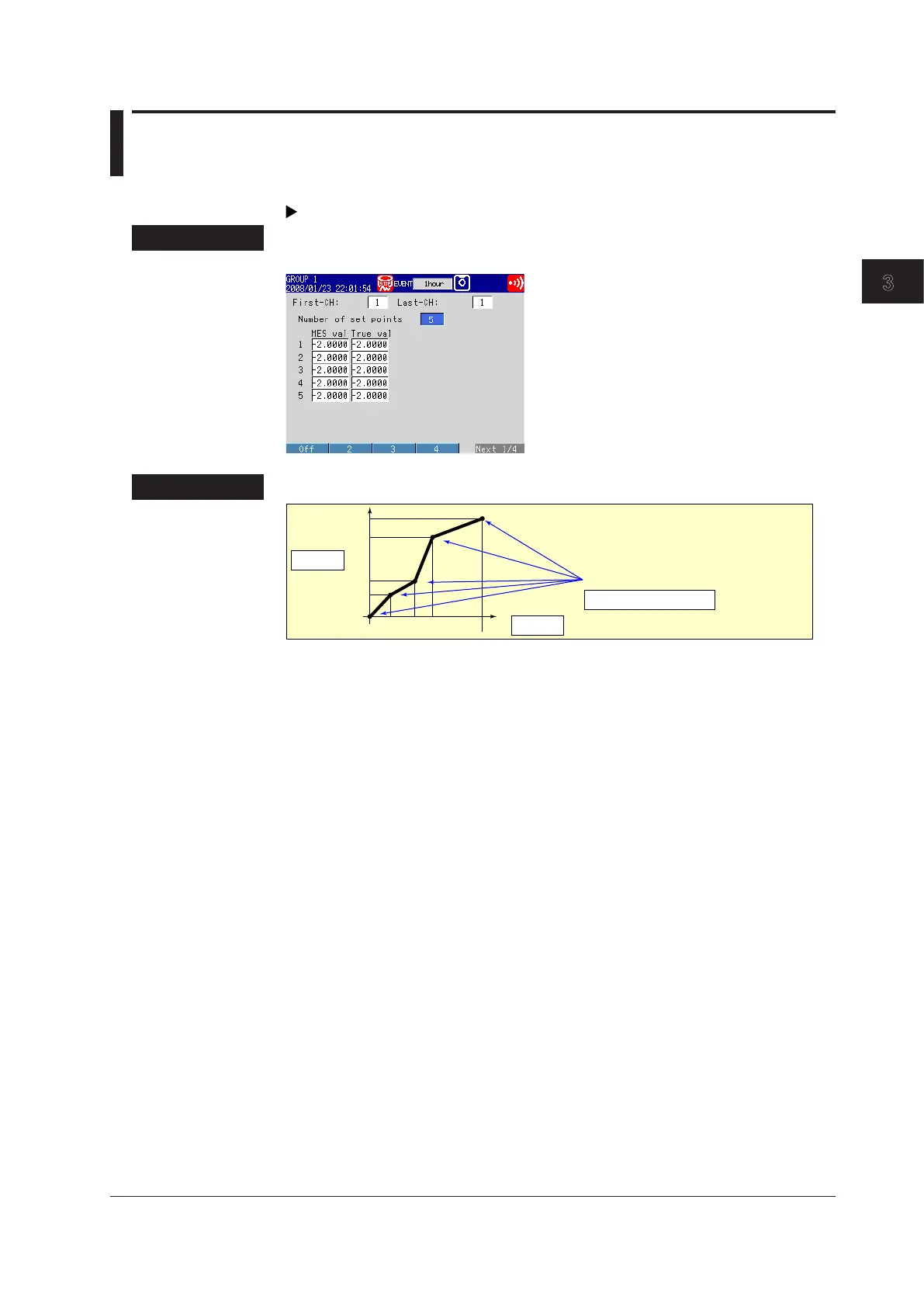

3.9 Calibrating Input Values (/CC1 option)
This section explains how to calibrate input values to produce measured values.
For an explanation of this function, see section 1.2.
Display
Press MENU and then select > Menu tab > Meas channel > Calibration correction.
Settings
True val
Number of set points
Calibration set points
Y5
Y4
Y3
Y2
Y1
MES val
X1 X2 X3 X4 X5
Condition
X1 < X2 < X3 < X4 < X5
• First-CH, Last-CH
Select the target channels. You can set consecutive channels whose range is set to
the same value as that of the rst channel.
• Number of set points
Select the number of points (including the start and end points) that will be used to
divide segments, from within the range of 2 to 16.
To disable calibration correction, select Off.
