Chapter 5 Screen Operations
5.1 Switching Between Displays
Switching between Displays Using the Arrow Keys and DISP/ENTER
Using DISP/ENTER and the arrow keys, you can open the display selection menu and its

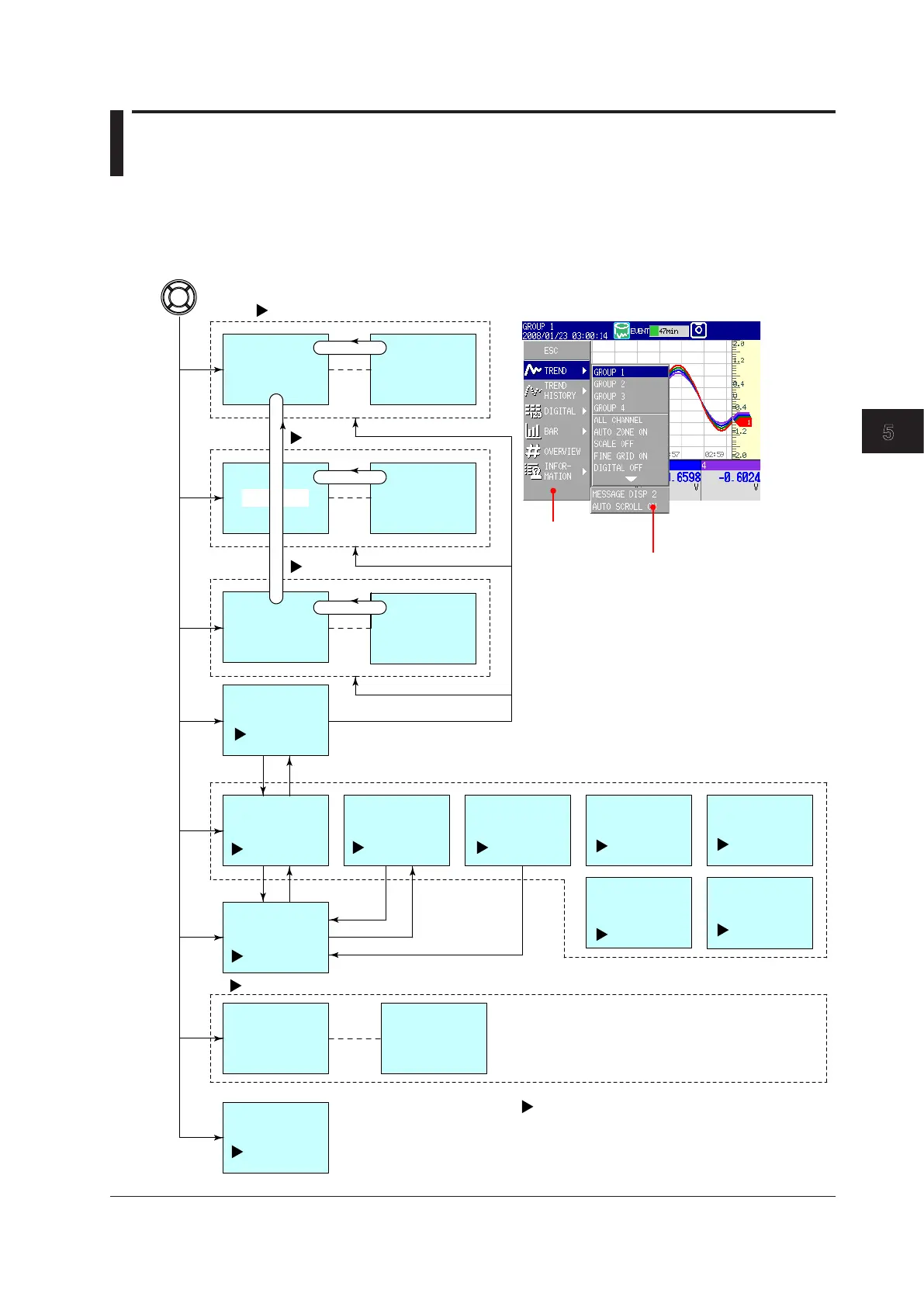

submenus and switch between displays. The following flowchart illustrates the operations
that you can perform.
TREND
GROUP 1
GROUP n
GROUP n
GROUP 1 GROUP n
DIGITAL
BAR
OVERVIEW
INFORMATION
TREND HISTORY
4-PANEL
LOG
Login log, error log, communication log, FTP log,
Web log, e-mail log, SNTP log, DHCP log, and
Modbus status log
ALARM
SUMMARY
MESSAGE
SUMMARY
MEMORY
SUMMARY
REPORT DATA
MODBUS
MASTER
MODBUS CLIENT
RELAY
GROUP 1
DISP/ENTER key and arrow keys
Section 5.2
Sec 5.2
Sec 5.2
Section 5.5
Display selection
menu
Submenu
Section 5.7
Section 5.8 Section 5.9
Section 5.5
Section 5.5
COLUMN BAR
Section 5.6
Section 5.11
Section 5.4
Section 5.3
Section 5.10
About tag name display
Long tag names may not fit into their display areas.
When this is the case, they are displayed as follows:
• After the screen is displayed, the tag name
automatically scrolls through the display area
once.
• Press ESC to scroll the tag name through the
display area once.
(Not displayed with the default settings.
To display, see section 6.17.
