11-4

IM MV1000-01E

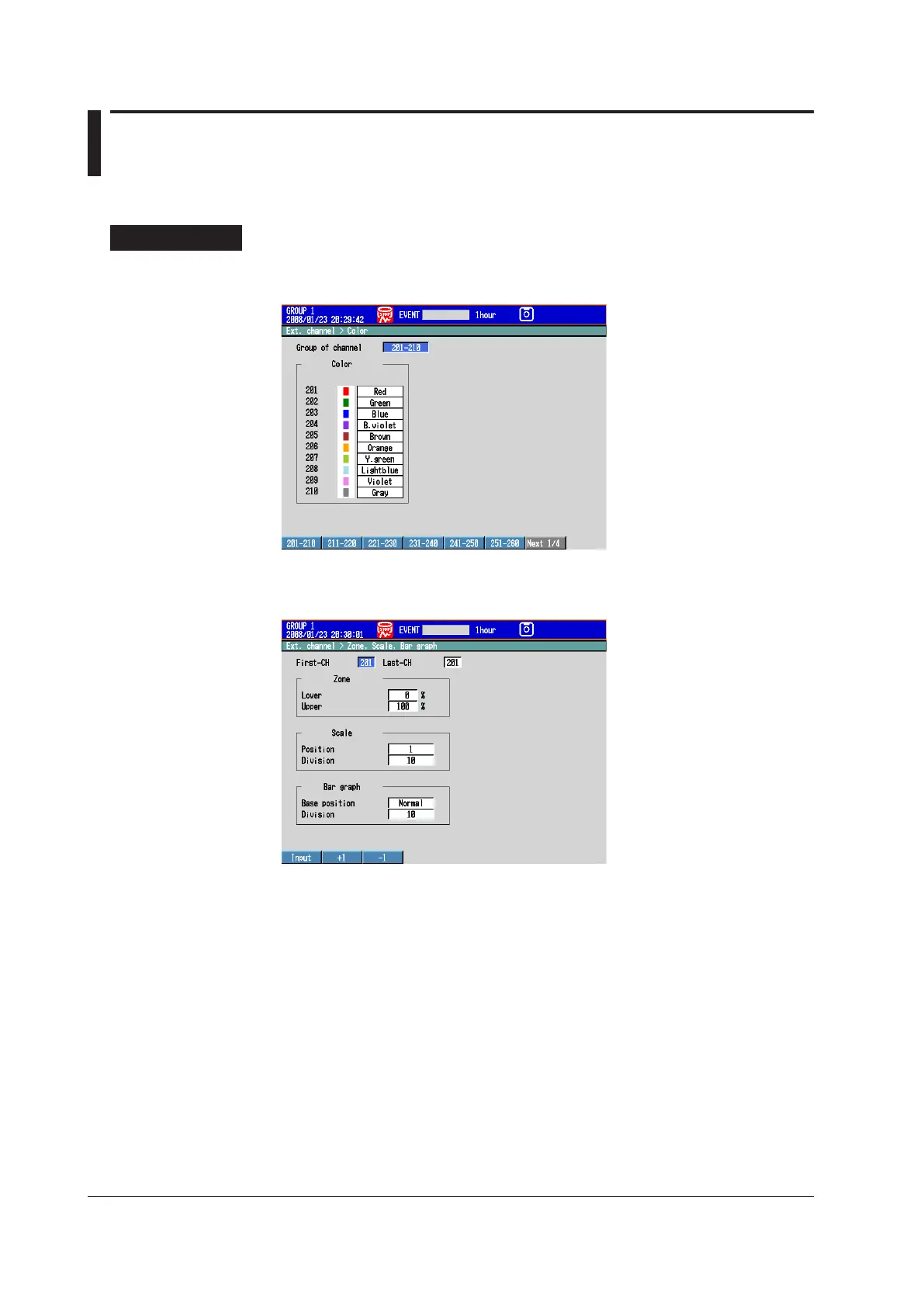

11.2 Displaying External Input Channels

You can assign external input channels to groups and display them just like measurement

channels. See chapter 6 for details.

Display

• Channel Display Color

Press MENU and then select Menu tab > Ext. channel > Color.

• Showing the Zone Display, Scale Display, and Bar Graph display

Press MENU and then select Menu tab > Ext. channel > Zone, Scale, Bar graph.
