6.10 Changing the Display Layout, Clearing of the
Waveform at Start, Message Display Direction,
Waveform Line Width, and Grid
This section explains how to change the display layout, waveform line width, and grid. It
also explains how to clear waveforms when memory sampling starts.
For an explanation of these functions, see section 1.4.

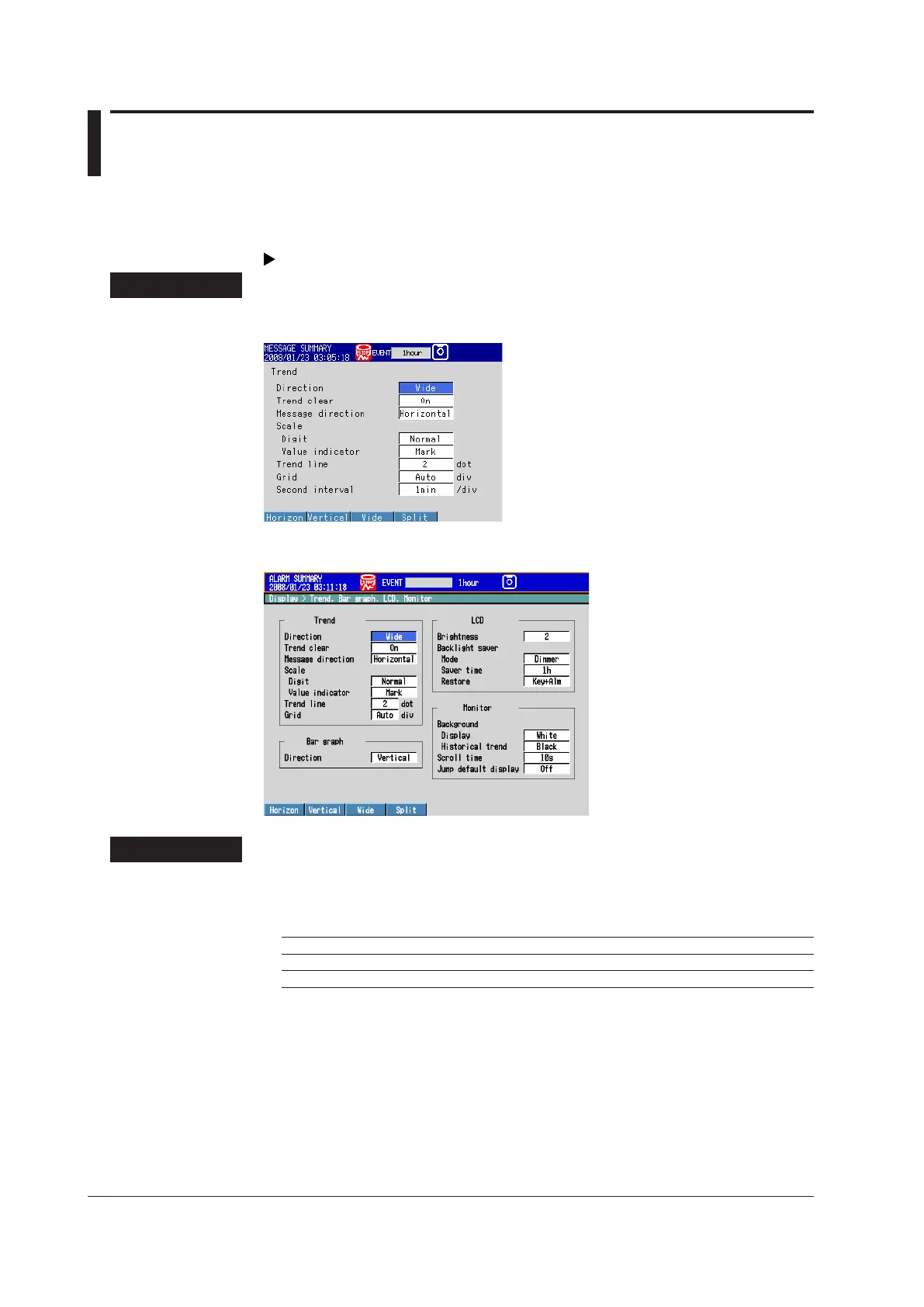

Display
MV1000
Press MENU and then select Menu tab > Display > Trend.
MV2000
Press MENU and then select Menu tab > Display > Trend, Bar graph, LCD, Monitor.
Settings
• Trend > Direction
Set the trend waveform display direction to Horizontal, Vertical, Wide, or Split.
• Trend > Trend clear
Setting Description
On Clears the displayed waveforms when memory sampling starts.
Off Does not clear the displayed waveforms when memory sampling starts.
• Trend > Message direction
Sets the message display direction to Horizontal or Vertical. The message direction is
xed to Horizontal if Trend Direction is set to Vertical.
• Trend > Trend line
Sets the line width of trends in dots (1 to 3).
