YOKOGAWA MVAdvanced MV1000 Series User Manual

7-1
IM MV1000-01E
Event Action
1
2
3
4
5
6
7
8
9
10
11
12
13
App
Index

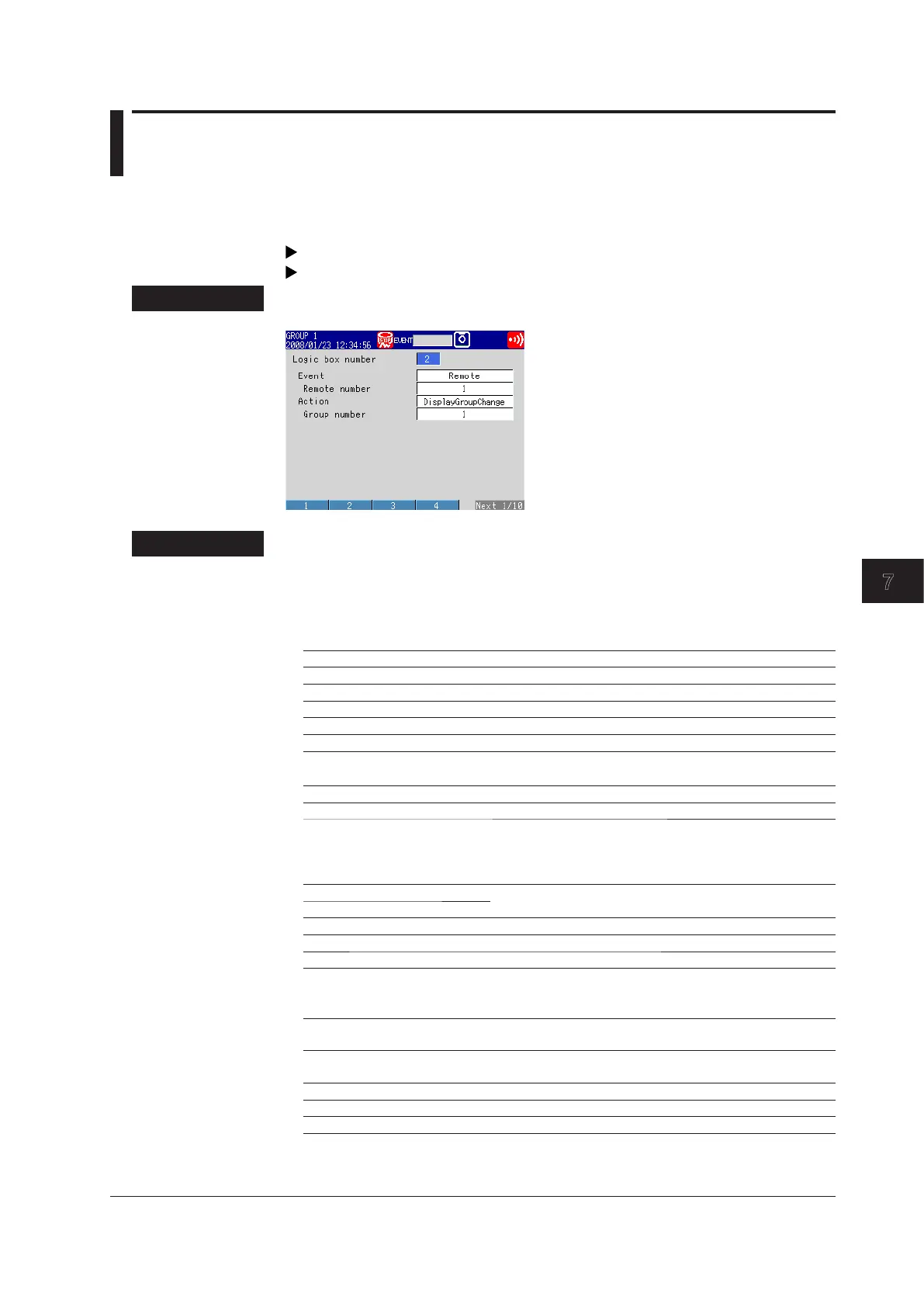

Chapter 7 Event Action
7.1 Configuring the Event Action Function
This section explains how to configure the MV to execute a specified action when a
given event occurs. This function is called event action. This section also explains how to
configure the remote control function (/R1 option) and the USER key.
For an explanation of these functions, see section 1.7.
For event action configuration examples, see appendix 2.
Display
Press MENU and then select Menu tab > Timer, Event action > Event action.
Settings
• Logic box number
You can set up to 40 event actions.
• Event
An event is a condition for executing an action.
Setting Description
None —
Remote Select a remote control input terminal number.
Relay Select an alarm output relay number.
Switch Select an internal switch number.
Timer Select a timer number.
Match T A match time timer.
Select a match timer number.
Alarm —
UserKey —
• Action
An action that is executed when an event occurs.
Setting Description
MV1000 MV2000
Memory Memory Memory start/stop
Start Start Memory start
Stop Stop Memory stop
Trigger Trigger An event trigger.
You can specify this when the MV is configured to record
event data.
AlarmACK AlarmACK You cannot specify this when the event is set to Relay,
Switch, or Alarm.
Math Math Computation start/stop. You can specify this on models with
the /M1 or /PM1 option.
MathStart MathStart You can specify this on models with the /M1 or /PM1 option.
MathStop MathStop You can specify this on models with the /M1 or /PM1 option.
MathReset MathReset You can specify this on models with the /M1 or /PM1 option.
