6.2 Displaying Tags or Channel Numbers
This section explains how to display channels using tags or channel numbers.

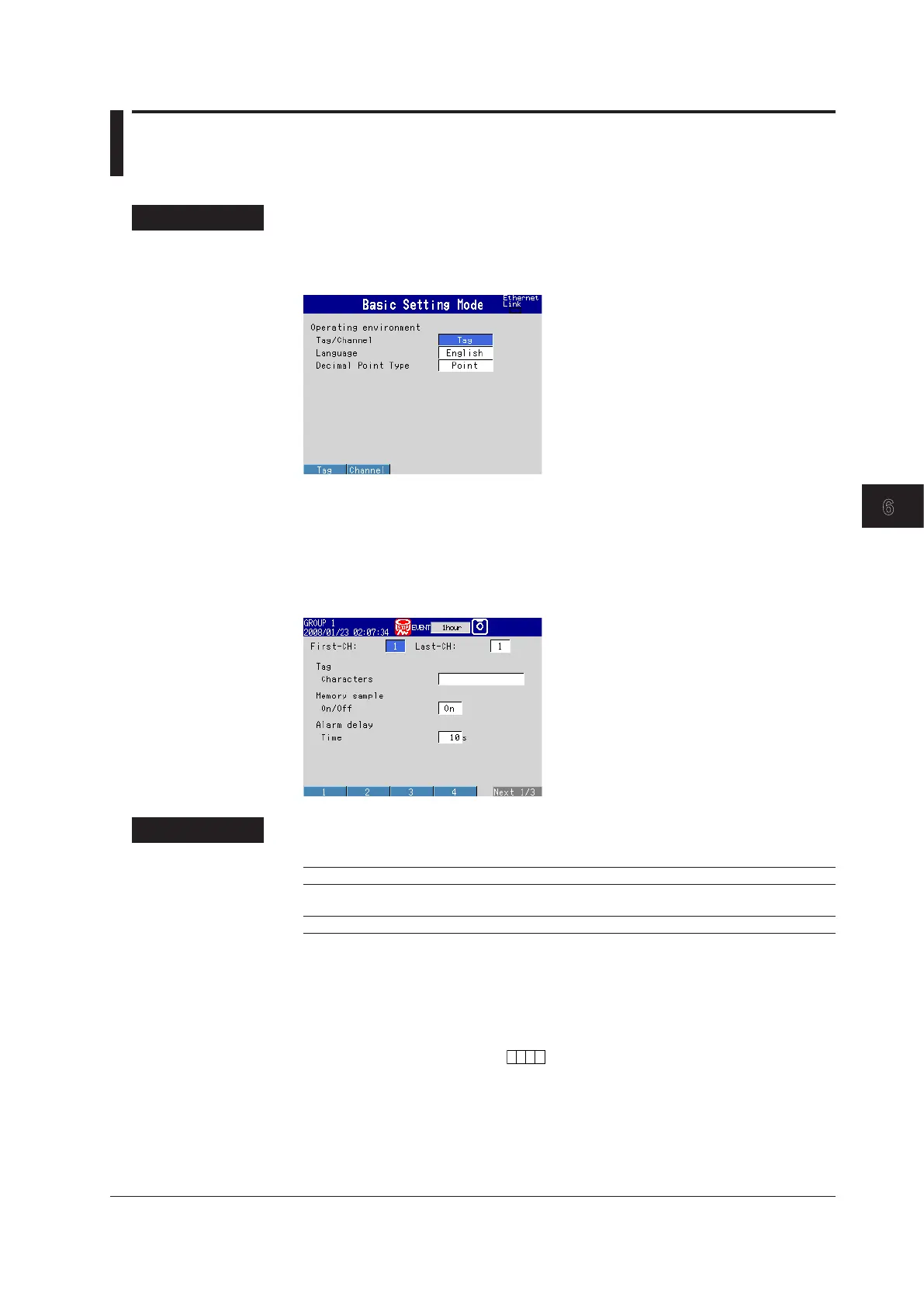

Display
• Tag/Channel
Press MENU and then select Menu tab > Basic setting mode > Environment tab >
Operating environment.
• Tag
MV1000
Press MENU and then select Menu tab > Meas channel > Tag, Memory, Delay.
MV2000
Press MENU and then select Menu tab > Meas channel > Tag, Memory sample,
Alarm delay.
Settings
• Operating environment > Tag/Channel
Setting Description
Tag Displays tags. Channel numbers are displayed for channels that do not have
tags set.
Channel Displays channel numbers.
• First-CH, Last-CH
Select the target channels. The settings selected here will be applied to these
channels.
• Tag > Characters
Set the tag (up to 16 characters,
A
a
#
1
).
