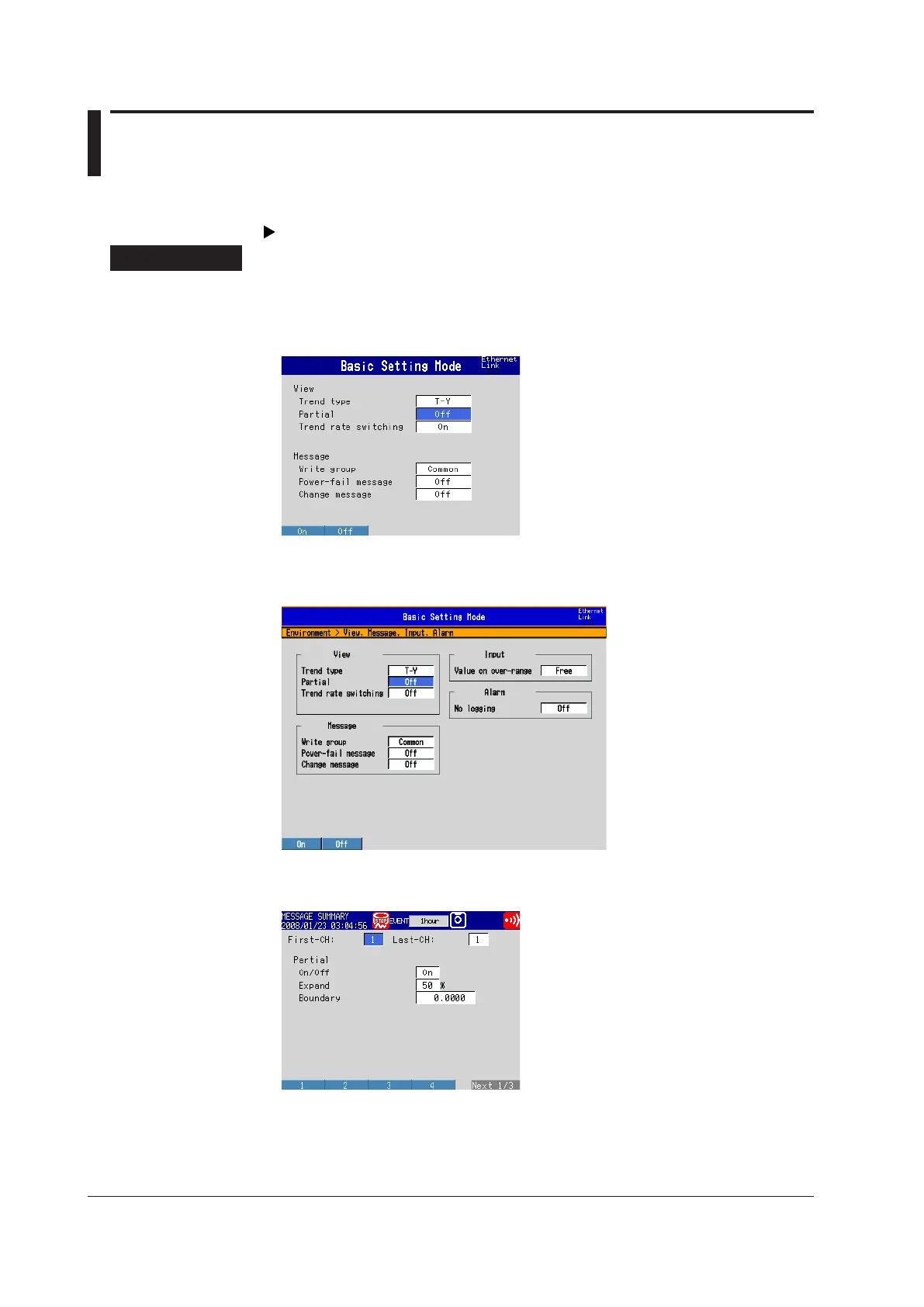

6.9 Partially Expanding a Waveform

This section explains how to expand a portion of a waveform (and shrink the other

portion).

For an explanation of this function, see section 1.4.

Display

• Turning ON/OFF the Partially Expanded Display Function

MV1000

Press MENU and then select Menu tab > Basic setting mode > Environment tab >

View, Message.

MV2000

Press MENU and then select Menu tab > Basic setting mode > Environment tab >

View, Message, Input, Alarm.

• Partially Expanded Display Settings

Press MENU and then select Menu tab > Meas channel > Partial.
