6-1
IM MV1000-01E
Display Configuration
1
2
3
4
5
6
7
8
9
10
11
12
13
App
Index
Chapter 6 Display Configuration
6.1 Setting a Display Group
This section explains how to assign channels to a display group and how to name the
group. It also explains how to set lines at specified positions in the waveform display
range on the trend display.

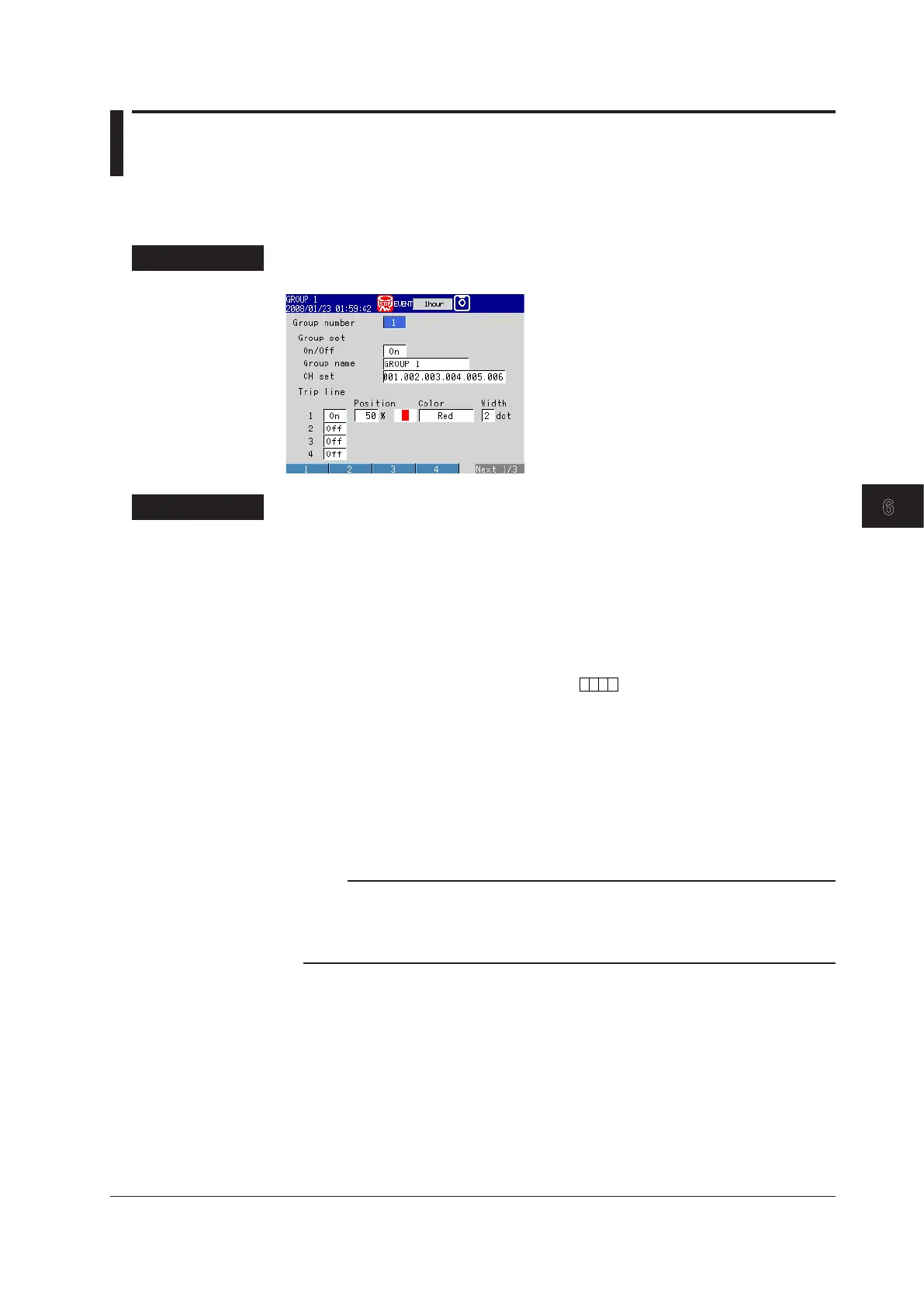

Display
Press MENU and then select Menu tab > Group set, Trip line.
Settings
• Group number
Select the target group number (from 1 to 10 on the MV1000 and 1 to 36 on the
MV2000).
• Group set
• On/Off
Select On to use the group.
• Group name
Set the group name (up to 16 characters,
).
• CH set
Select measurement channels, computation channels (/M1 and /PM1 options), and
external input channels (/MC1 option) that you want to assign to the group. You can
set up to 6 channels on the MV1000 and up to 10 channels on the MV2000.
•
Enter channel numbers using two or three digits.
• Separate each channel number with a period.
•
To specify a range of consecutive channels numbers, use a hyphen.
Example: To assign channel 1 and channels 5 through 8, enter “001.005-008.”
Note
• The MV displays the channels in the specified order on the trend, digital, and bar graph
displays.
• You can assign a channel to multiple groups.
• You cannot assign a channel twice to the same group.
To Next Page
