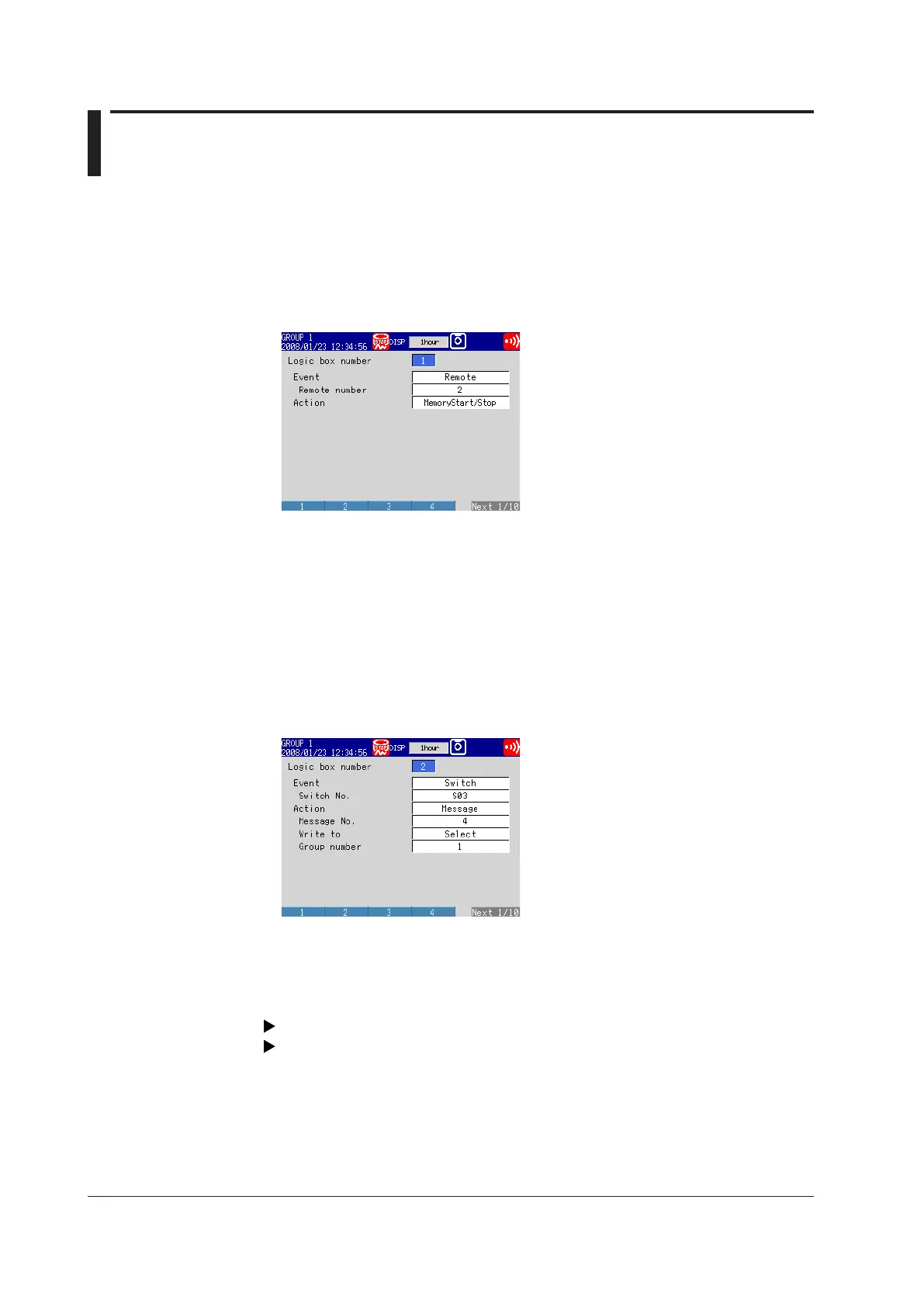

Appendix 2 Event Action Configuration Examples
Example 1: To Start/Stop Memory Sampling by Using the Remote Control
Function (/R1 Option)
We will configure the MV so that it starts or stops memory sampling when a signal is
applied to remote control input terminal 2. We will use event action number 1.
• Display and Settings
Press MENU and then select Menu tab > Timer, Event action > Event action.
<Operation>
If you turn ON the input to remote control input terminal 2, the MV will start memory
sampling (if it isn’t already). If you turn OFF the input, the MV will stop memory sampling.
Example 2: To Write a Message When an Alarm Occurs
We will configure the MV so that it will write the message “Channel 1 Alarm” to group 1
when an alarm occurs on channel 1. We will use event action number 2.
• Display and Settings
Press MENU and then select Menu tab > Timer, Event action > Event action.
<Other Settings>
• Assign an alarm to channel 1, and configure the MV so that alarm events are sent to
internal switch 3.
• Register “Channel 1 Alarm” to message number 4.
For alarm configuration instructions, see section 3.7.
For message registration instructions, see section 6.4.
