5-19
IM MV1000-01E
Screen Operations
1
2
3
4
5
6
7
8
9
10
11
12
13
App
Index

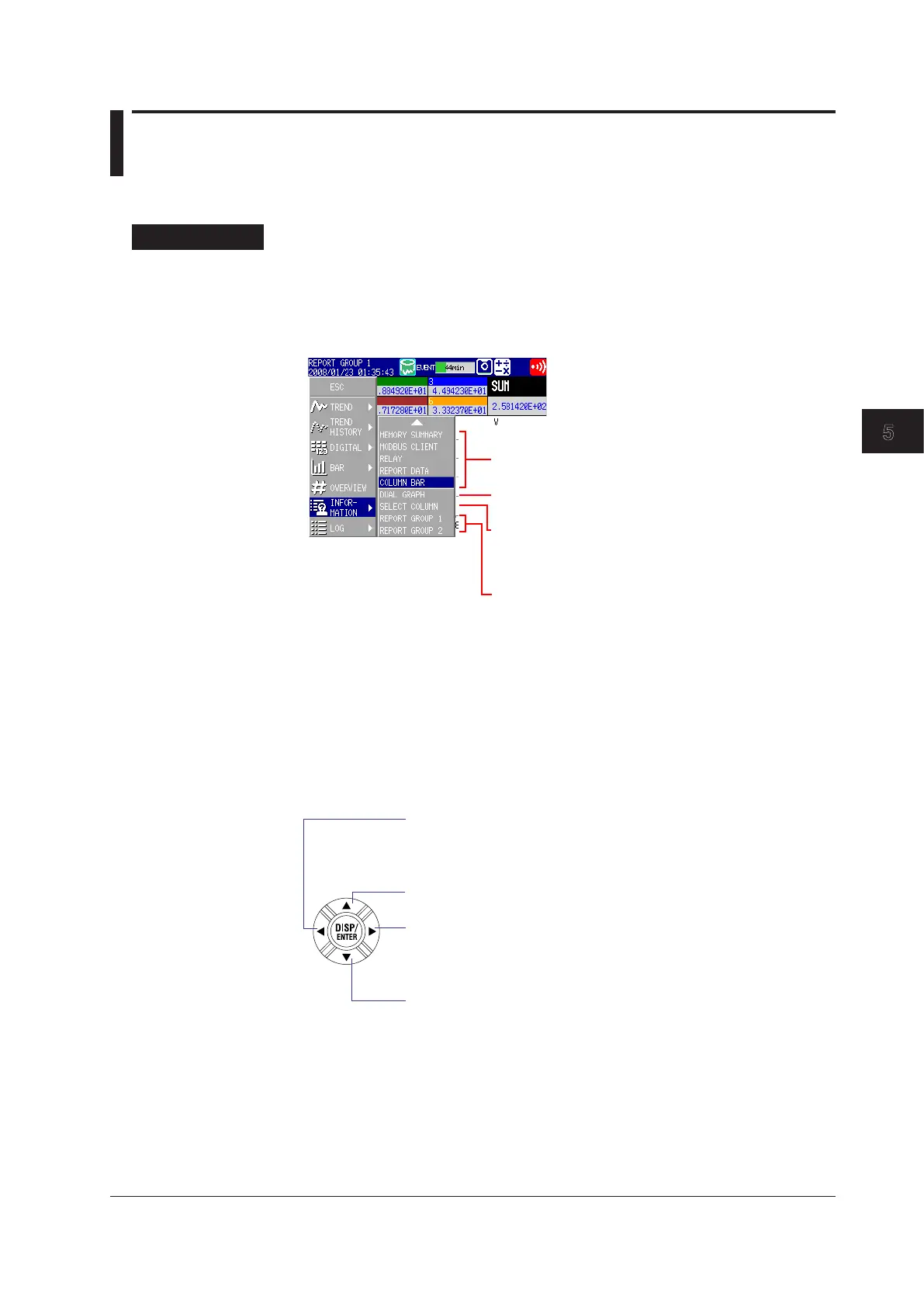

5.6 Displaying Stacked Bar Graphs (COLUMN
BAR)
This section explains how to use the bar graph display (COLUMN BAR).
Procedure
• Changing Display Settings
1.
Press DISP/ENTER to open the display selection menu.
2.
Press the right arrow key to open the submenu.
3.
Select a submenu item with the up and down arrow keys.
REPORT GROUP 1 to 6*: Switch between displayed
report groups.
* Varies according to model. For more information about report
channels, see section 10.5.
SELECT GROUP: Use the arrow keys to switch between
displayed report groups.
SELECT COLUMN: Use the arrow keys to select a bar graph.
SINGLE GRAPH: Displays a single graph.
DUAL GRAPH: Displays two graphs.
Display name: Switches to the specified display.
4.
Press DISP/ENTER to change the display setting.
To close the menu without changing the display, press
ESC
.
• Changing Groups, Selecting Bar Graphs, and Moving the Cursor
The amount of data that the up and down arrow keys scroll through depends on the
type of report data. For example, with an hourly + daily (Hour+Day) report, you can
use the arrows to scroll through the data one day at a time.
If set to SELECT GROUP: Switches to the display for the report
group with the next smallest number.
If set to SELECT COLUMN: Moves the bar graph selection cursor
to the left.
Switches to the previous day, week or month's data.
If set to SELECT GROUP: Switches to the display for the report
group with the next highest number.
If set to SELECT COLUMN: Moves the bar graph selection cursor
to the right.
Switches to the next day, week or month's data.
To Next Page
