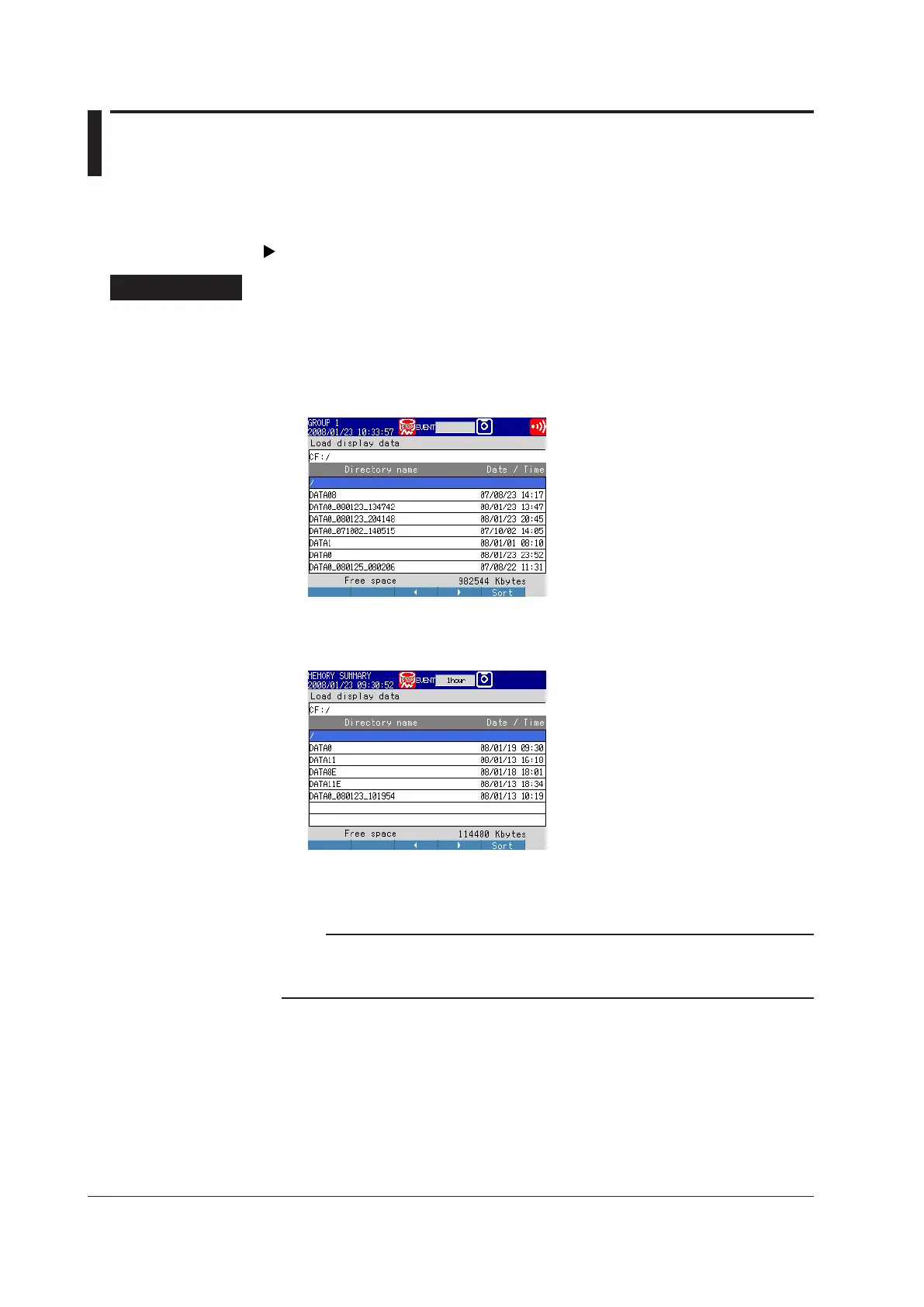

4.8 Loading and Displaying Measured Data from
External Storage Media
This section explains how to display the waveforms of display and event data that have
been saved in binary format to external storage media. Loaded data will be displayed on
the historical trend display.
For historical trend display operating instructions, see section 5.3.
Procedure
• Loading a File
1.
To access the display:
Press MENU and then select File
tab > Load display data or Load Event data.
Press the CF or USB soft key
*
and then DISP/ENTER.
* When using a CF card and USB flash memory.
2.
Use the arrow keys to select a directory, and then press DISP/ENTER. The files in
the directory will appear in a list. / is the root directory.
3.
Select a file using the arrow keys, and then press DISP/ENTER.
The MV loads the file and displays its historical trend.
Note
• The extension for display data files saved in binary format is .DAD. The extension for binary
event data is .DAE.
• For details on using the Sort soft key, see section 4.7.
To Next Page
