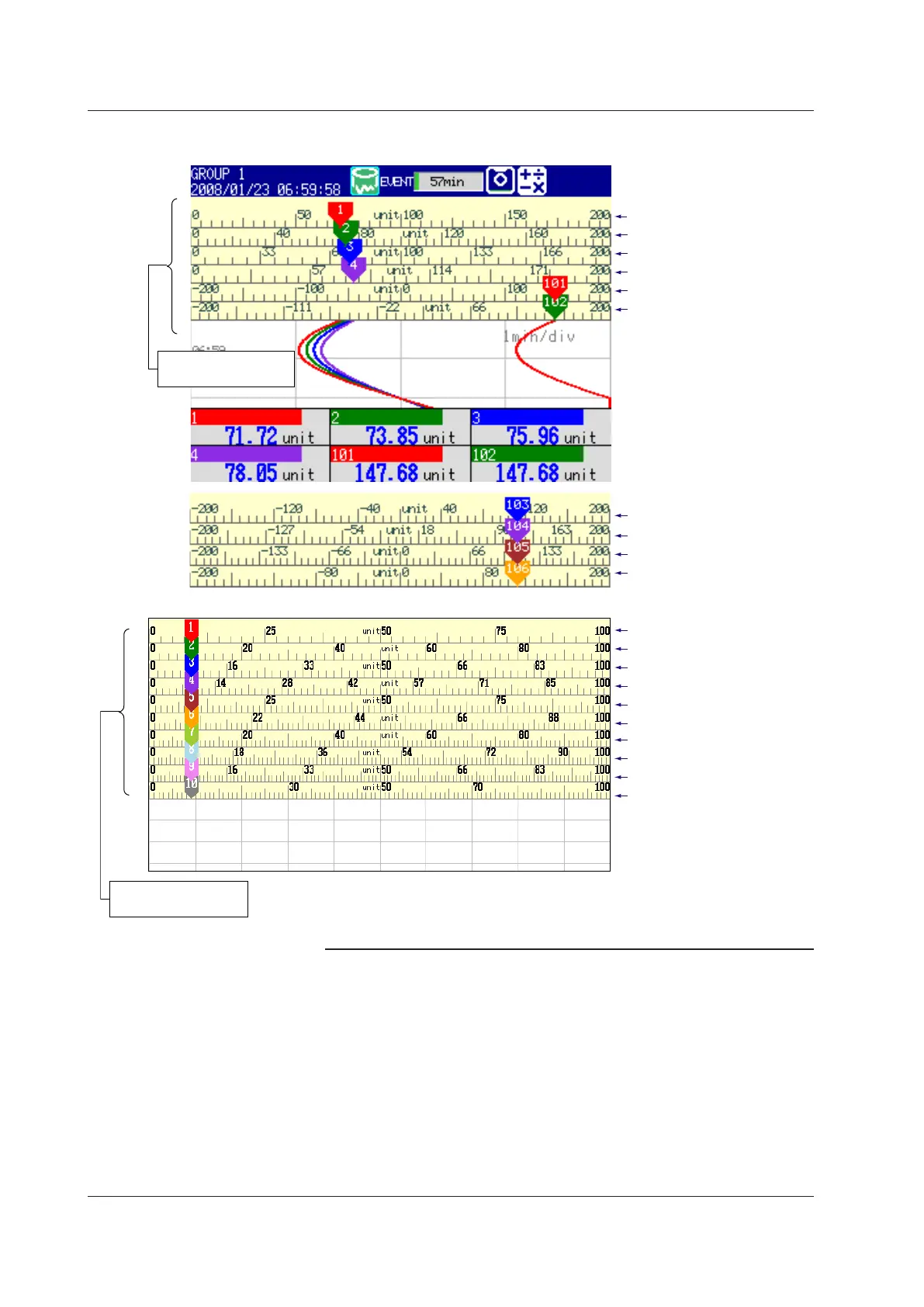

Vertical Trend Display
MV1000
Number of scale divisions: 4
Number of scale divisions: 5
Number of scale divisions: 6
Number of scale divisions: 7
Number of scale divisions: 8
Number of scale divisions: 9
Number of scale divisions: 10
Number of scale divisions: 11
Number of scale divisions: 12
Number of scale divisions: C10
Scale display position
1
2
3
4
5
6
MV2000
Number of scale divisions: 4
Number of scale divisions: 5
Number of scale divisions: 6
Number of scale divisions: 7
Number of scale divisions: 8
Number of scale divisions: 9
Number of scale divisions: 10
Number of scale divisions: 11
Number of scale divisions: 12
Number of scale divisions: C10
Scale display position
1
2
3
4
5
6
7
8
9
10
Note
• If the scales of multiple channels are set to the same position, the scale of the channel
assigned to the group first is displayed.
Example: If the channel assignment order to a group is 003.002.001, and the scale display
position is set to 1 for all channels, the scale of channel 3 is displayed at display
position 1.
• Even if some of the scale display positions are skipped, the positions are shifted towards 1
so that there are no empty positions.
Example: Suppose the channel assignment to a group is 001.002.003, and the display
positions of the scales are set to 1, 3, and 6, respectively. The scales will actually
appear at positions 1, 2, and 3, respectively.
6.7 Displaying a Scale on the Trend Display
