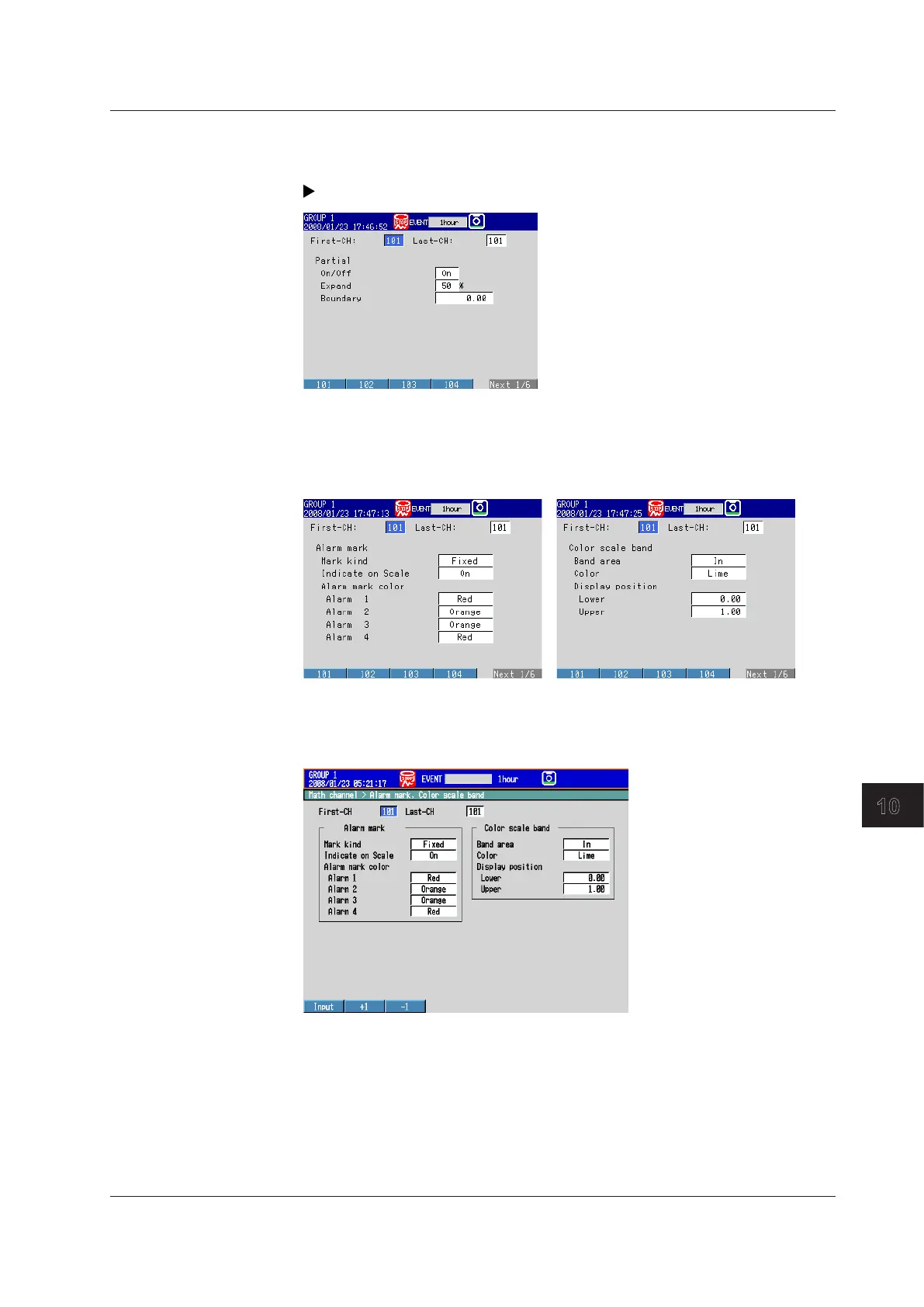

• Partially Expanded Display
Press MENU and then select Menu tab > Math channel > Partial.
* The Partial command appears in the menu if you set Partial to On in Basic Setting Mode.
For conguration instructions, see section 6.9.
• Alarm Mark and Color Scale Band
MV1000
Press MENU and then select Menu tab > Math channel > Alarm mark or Color
scale band.
MV2000
Press MENU and then select Menu tab > Math channel > Alarm mark, Color scale
band.
