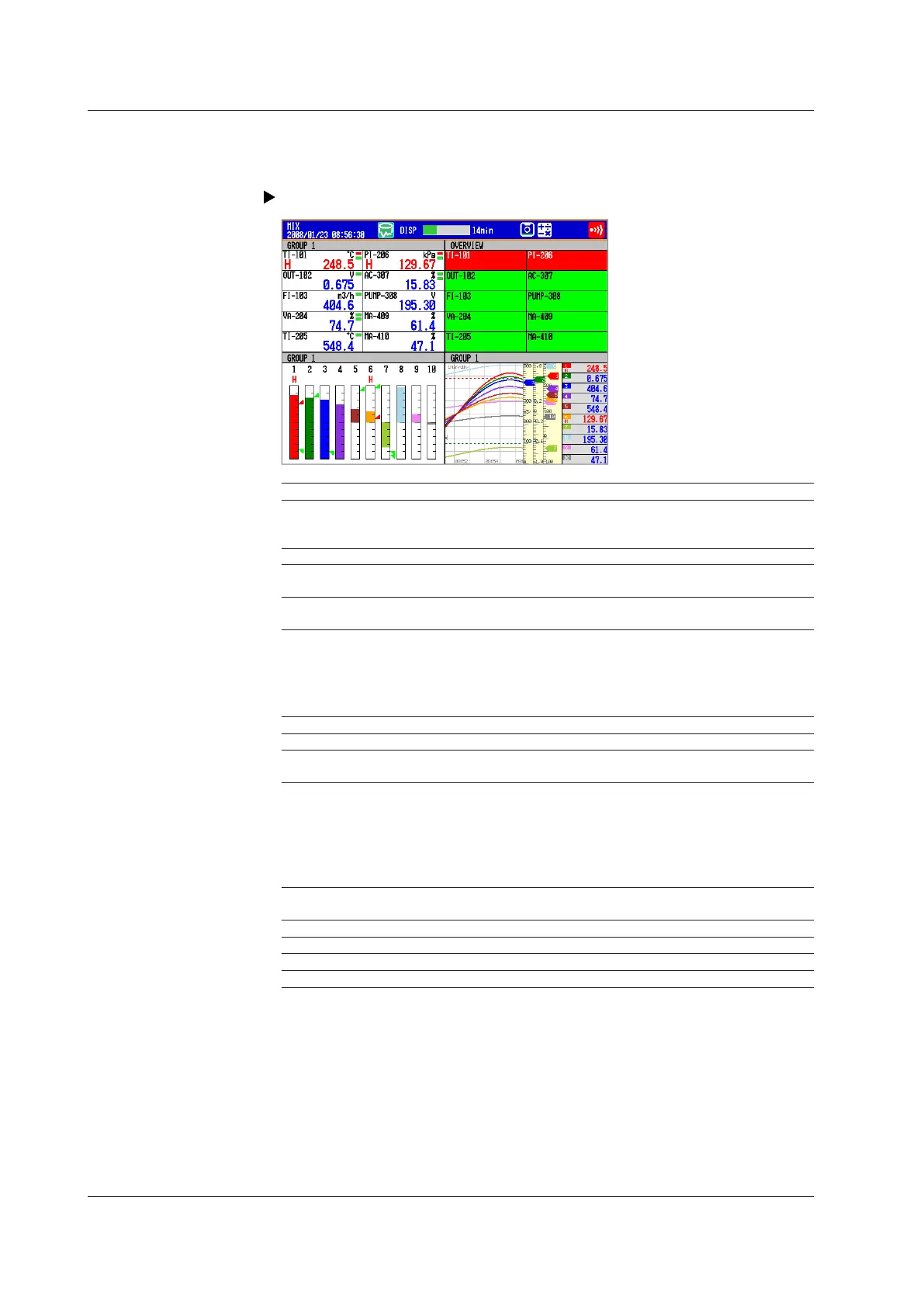

4-Panel Display (only with the MV2000)
You can view four different displays on one screen. The displays are all 1/4 of their
ordinary size, so they have content, format, and command limitations.
For operating instructions, see section 5.11.
Displayable Screens Limitations
Trend No automatic group switching. Cannot display all channels.
No message display. Number of displayable scales is six or
less.
Digital No automatic group switching.
Bar graph display No automatic group switching. No numeric value display.
Displays one representative alarm letter.
Overview No operations. No numeric display for more than 260
channels.
Alarm summary
Message summary
Memory summary
Cannot use the cursor.
Modbus client status display
Modbus master status display
Relay status display -
Report display Cannot use the cursor.
Stacked bar graph display Sums of each channel (numeric value display), report group
sums (numeric value display)
• Registering Display Configurations
You can name and register up to four 4-panel display congurations. You can access
the registered congurations by their names.
The default congurations are as follows:
Configuration
Name
Displays
MIX Trend (group 1), digital (group 1), bar graph (group 1), overview
ALL TREND All trend displays (groups 1 through 4)
ALL DIGITAL All digital displays (groups 1 through 4)
ALL BAR All bar graph displays (groups 1 through 4)
1.4 Display
