• How Numeric Values Are Displayed and Recorded
The range of displayable values for computed data, ignoring the decimal point, is –
9999999 to 99999999. The decimal place is determined by the location of the decimal
point on the computation channel’s minimum span value. Regardless of maximum and
minimum span value settings, all computed values within the aforementioned range
of displayable values will be displayed. Non-numeric values are displayed in these
circumstances.
Display/Recorded Value Computed Data Status
+Over • +Display range-out: When the computed result exceeds 99999999
•
+Computation range-out: When the value exceeds approximately 3.4
×10
38
in the middle of computation.
• When a computation error* occurs (You can select +Over or –Over.)
-Over • –Display range-out: When the computed result is less than -9999999
•
–Computation range-out: When the value goes below approximately
–3.4×10
38
in the middle of computation.
• When a computation error* occurs (You can select +Over or –Over.)
* Computation errors occur when the following computations are carried out.
• X/0, SQR(–X), or LOG(–X)
• When a channel number set to Skip or Off is used in an expression
• Rolling Average
The computation channel’s computed value is the rolling average of the computed
result of the expression specied for the channel. The number of samples and the
sampling interval can be specied for each computation channel. The rolling average
is applied over the time corresponding to: the number of data samples × the sampling
interval. The maximum sampling interval is 1 hour, and the maximum number of
samples is 1500.
• Starting Computation Operations
You can congure the MV to start computation operations when you press START/
STOP.
• TLOG Computation
TLOG computation determines the sum, maximum value, minimum value, average,
or the difference between the maximum and minimum values of a specic channel for
each interval determined by a timer.
Timer Assignment
Timers are assigned separately to each channel.
Units in Sum Operations
When using the sum operation (TLOG.SUM), set the unit (referred to as sum scale) of
the values to be summed.
You can select from Off, /s, /min, and /h. For details, see the n
ext page.
Resetting the TLOG Computed Value
You can select whether or not to reset the TLOG computed value at every interval.

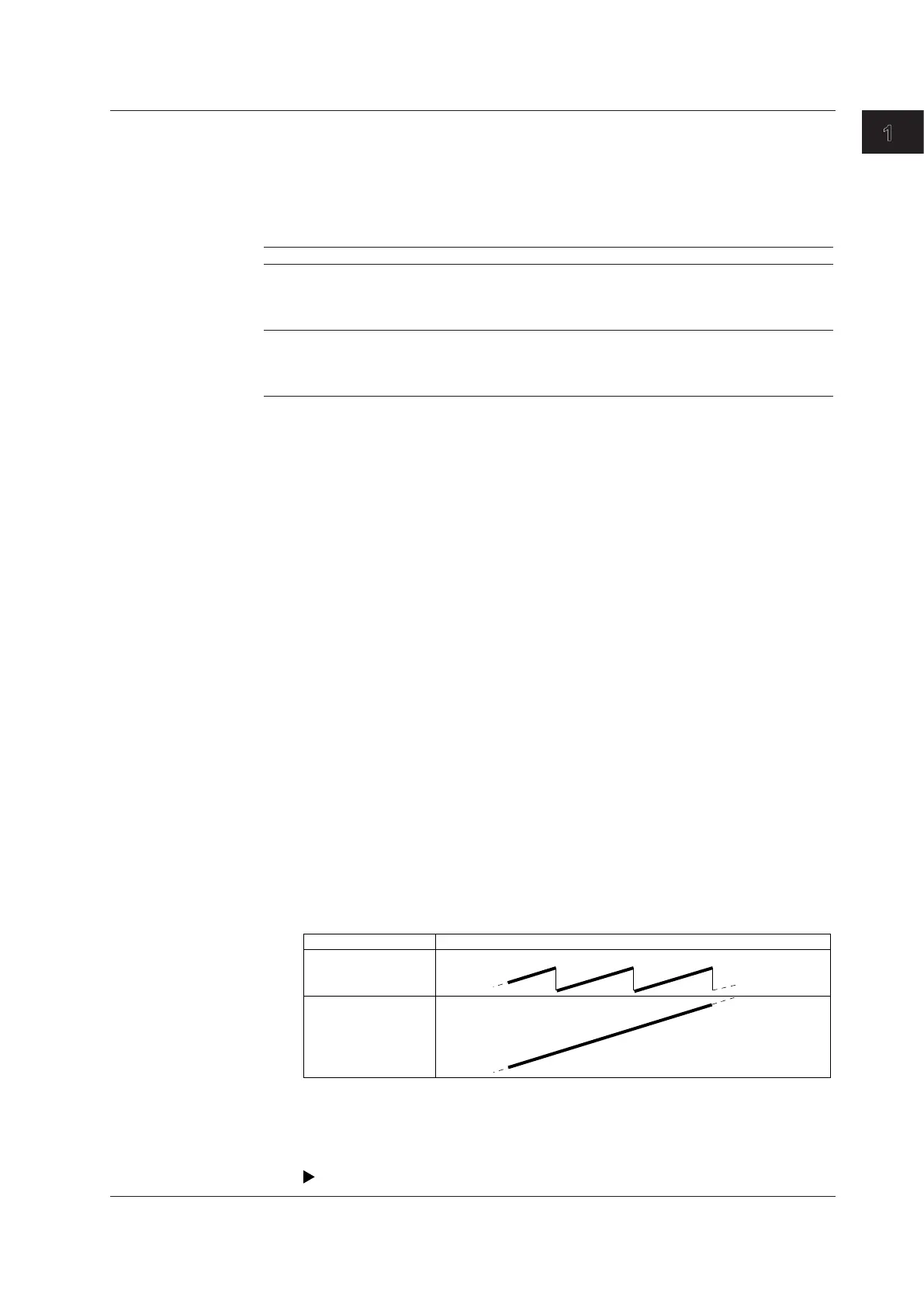

The gure below illustrates the reset operation for sum computation (TLOG.SUM).
Example: Result of the TLOG.SUM computation
1 2 3
ResetReset Reset
Reset: On
Timer timeout
Reset: Off
When reset is On, the sum is calculated over each interval. When reset is Off, the sum
of all values since the beginning of computation is calculated.
Power Failure Operation, Handling of Abnormal Data, and Handling of
Overflow Data
See “Special Data Handling Cases and Exceptions” in this section.
