• Turning ON/OFF Cursor Measurement

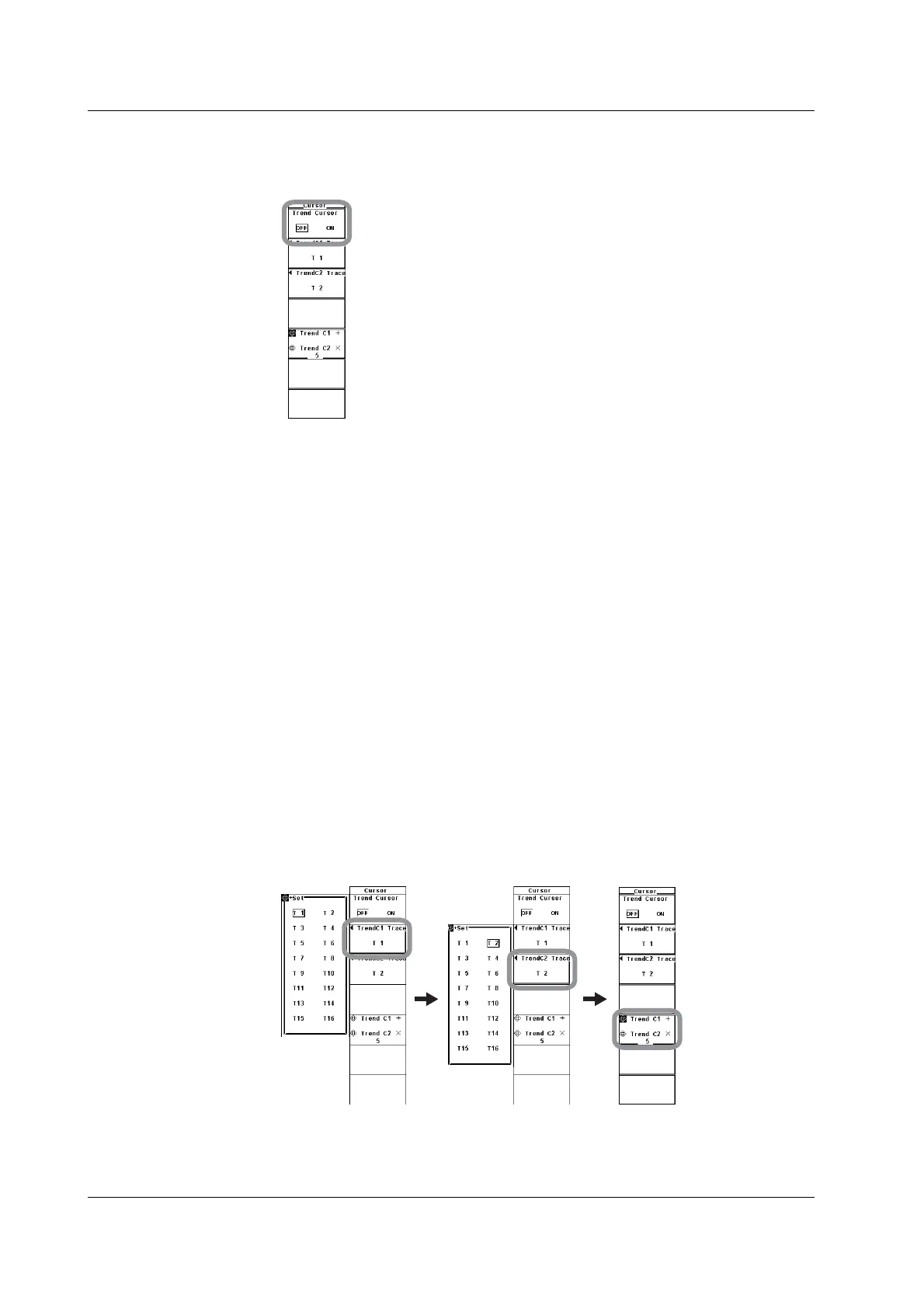

3. Press the Trend Cursor soft key to select ON or OFF.
If ON is selected, the result of the cursor measurement is displayed.
• Selecting the Target Trend for Cursor Measurement
• Selecting the Target Trend for Cursor +
4. Press the TrendC1 Trace soft key. A box used to select the target trend
appears.
5. Press the cursor keys to select a value between T1 and T16.
6. Press SET to confirm the new target trend.
• Selecting the Target Trend for Cursor x
4. Press the TrendC2 Trace soft key. A box used to select the target trend
appears.
5. Press the cursor keys to select a value between T1 and T16.
6. Press SET to confirm the new target trend.
• Moving the Cursors
7. Press the Trend C1 +/Trend C2 x soft key to set the cursor target to Trend C1
+, Trend C2 x, or both Trend C1 + and Trend C2 x.
• If you select Trend C1 +, the position of cursor + can be moved.
• If you select Trend C2 x, the position of cursor x can be moved.
• If you select both Trend C1 + and Trend C2 x, the two cursors can be moved without
changing the spacing between the two. The value of the digit being specified by Trend
C1 + changes.
8. Press the cursor keys to move the cursor.
