Measurement Conditions
4.5 Setting the Scaling Function When Using VT/
CT
Procedure
START STOP
REMOTE
CAL
MOTOR
SET
CURSOR NULL
MENU STORE SET
MENU
LOWER ITEM LOWER FORM ALL
USER SET
DISPLAY ITEM & ELEMENT
RESET SET
PAGE PAGE
SCALING
HRM SET MEASURE SYNC SOURCE
AVG LINE FILTER
FREQ
FILTER
FILE
PRINT
MISC
STORE IMAGE SAVE
HELP
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
To exit the menu during operation, press ESC located above
the soft keys.
In the procedural explanation below, the phrase “press the
cursor keys” may be used. This phrase refers to the
procedures for selecting items and entering values and
character strings. For details on the procedures, see section
3.14.
Cursor keys

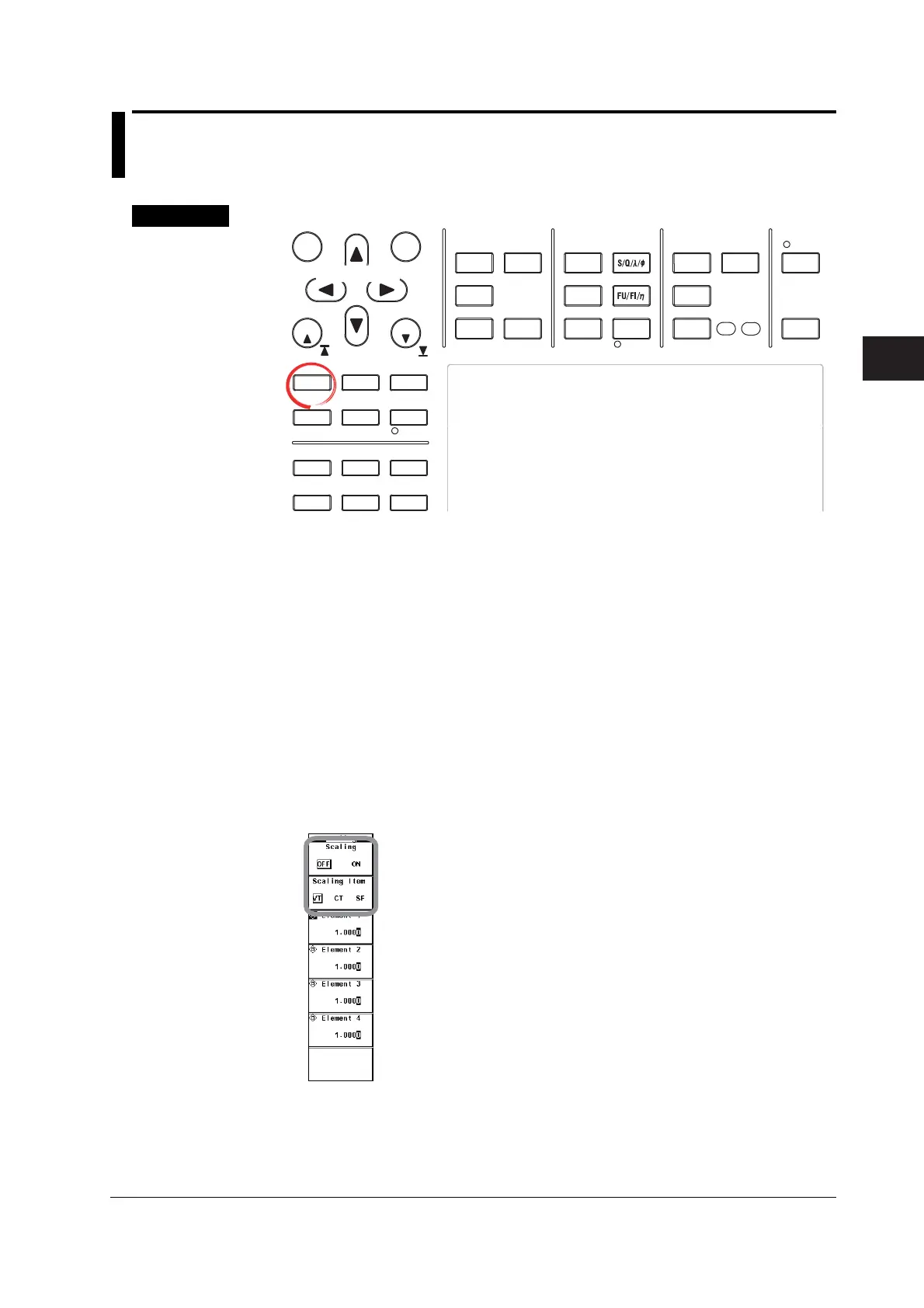

1. Press SCALING to display the Scaling menu.
• Turning ON/OFF the Scaling Function
2. Press the Scaling soft key to select ON or OFF. The SCALING key illuminates
when ON is selected.
• Setting the VT Ratio
3. Press the Scaling Item soft key to select VT.
• Selecting the Target Element
4. Press one of the soft keys corresponding to the displayed element to select the
target element.
5. Press the cursor keys to set the VT ratio.
6. Repeat steps 4 and 5 to set the VT ratio for all elements.
