YOKOGAWA wt3000 User Manual

4-24 IM 760301-01E

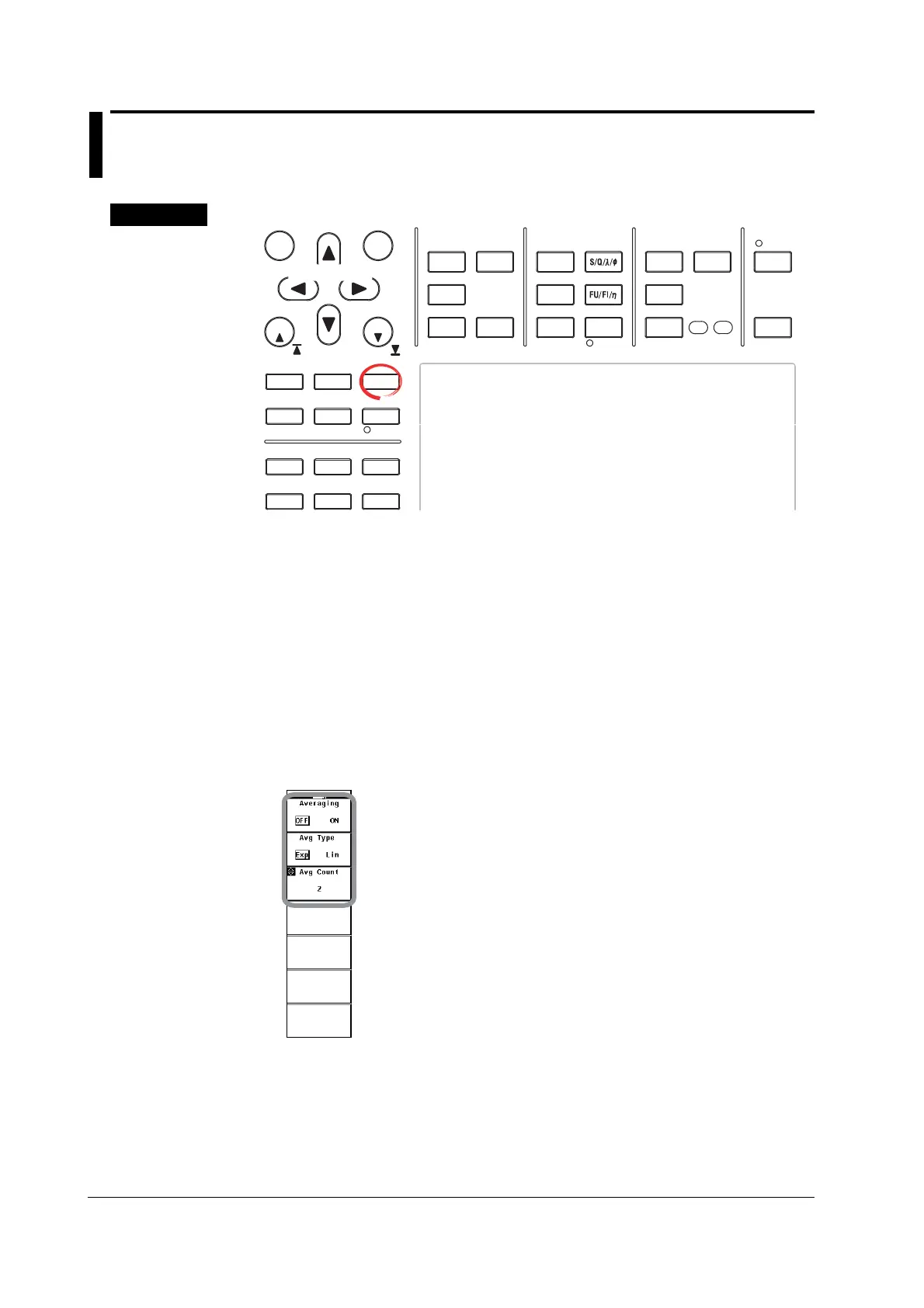

4.9 Selecting the Averaging Function
Procedure
START STOP
REMOTE
CAL
MOTOR
SET
CURSOR NULL
MENU STORE SET
MENU
LOWER ITEM LOWER FORM ALL
USER SET
DISPLAY ITEM & ELEMENT
RESET SET
PAGE PAGE
SCALING
HRM SET MEASURE SYNC SOURCE
AVG LINE FILTER
FREQ
FILTER
FILE
PRINT
MISC
STORE IMAGE SAVE
HELP
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
To exit the menu during operation, press ESC located above
the soft keys.
In the procedural explanation below, the phrase “press the
cursor keys” may be used. This phrase refers to the
procedures for selecting items and entering values and
character strings. For details on the procedures, see section
3.14.
Cursor keys
1. Press AVG to display the Avg menu.
• Turning ON/OFF the Averaging Function
2. Press the Averaging soft key to select ON or OFF.
• Selecting the Averaging Type
3. Press the Avg Type soft key to select Exp or Lin.
• Setting the Attenuation Constant or Average Count
4. Press the cursor keys to set the attenuation constant or the average count.
If the averaging type is Exp (exponential averaging), set the attenuation constant. If the
averaging type is Lin (moving averaging), set the average count.

YOKOGAWA wt3000 Specifications

General

Frequency Range	DC, 0.1 Hz to 1 MHz
Number of Input Elements	Up to 4 elements
Harmonic Measurement	Up to 500th order
Interfaces	USB, Ethernet, RS-232
Sampling Rate	2 MS/s
Voltage Range	1.5 V to 1000 V
Display	8.4-inch LCD
