1.3 Display Screen

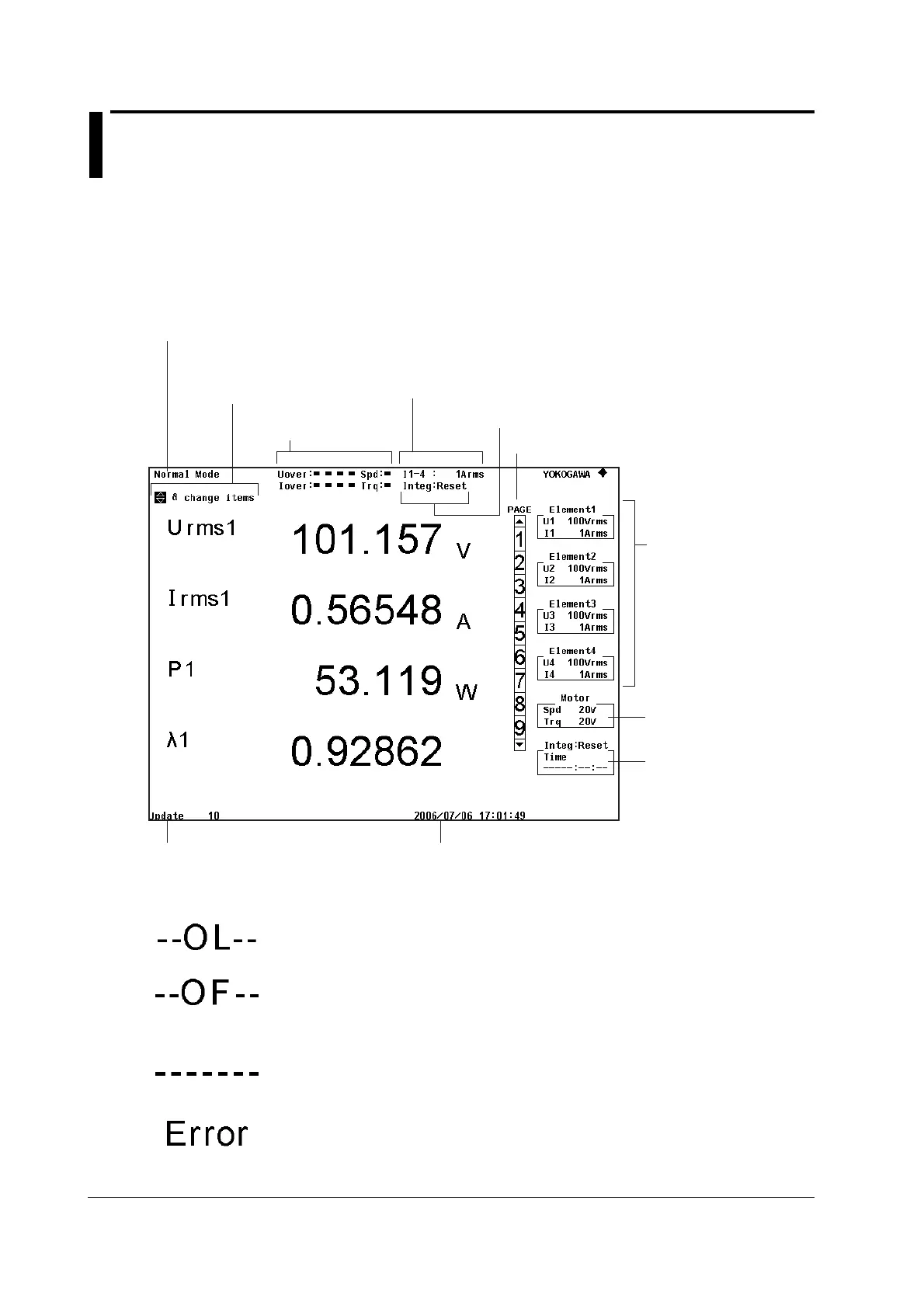

Screen Example When Measuring Power (Numeric Display) in Normal Measurement
Mode
For a description of the screens in other measurement modes and display modes other
than power measurement (numeric display), see the respective chapters covering each
mode.
Date/time (see section 3.11)
Input peak over-range
indicator (see section 5.1)
Measurement mode (see section 3.16)
Display indicating that the
display items can be changed
directly (see section 5.1)
Display of various settings
Measurement range (see section 4.3)
Data update rate (section 4.10)
Synchronization source (see section 4.7)
Integration status (see section 5.11)
Page bar (see section 5.1)
Input element settings
• Measurement range
(see section 4.3)
• Wiring system
(see section 4.1)
• Voltage/Current mode
(see section 5.2)
Measurement range of
motor input (motor version)
Integration setting/status
(see section 5.11)
Data update count (see section 5.1)
Displays Other than Values
Over-range display
Displayed if the measured value exceeds 140% of the measurement range.
Overflow display
Displayed if the measured or computed result cannot be displayed using the specified
decimal position or unit.
No data display
Displayed if a measurement function is not selected or if no numeric data is present.
Error display
Displayed such as when the measured value is outside a given range.
