5.3 Selecting the Frequency Measurement Source
Procedure
START STOP
REMOTE
CAL
SENSOR RATIO
MEASURING
RMS MEAN DC RMEAN
CURRENT RANGEVOLTAGE RANGE
MEASURING
RMS MEAN DC RMEAN
ALL
INPUT INFO.
LOWER ITEM LOWER FORM ALLUSER SET
DISPLAY ITEM & ELEMENT
2
34
COMPEN
ELEMENT
ELEMENT
1
WIRING
MODE AUTO MODE AUTO
EXT SENSOR
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
RESET SET
PAGE PAGE
Cursor keys
To exit the menu during
operation, press ESC
located above the soft
keys.
In the procedural
explanation below, the
phrase “press the cursor
keys” may be used. This
phrase refers to the
procedures for selecting
items and entering values
and character strings. For
details on the procedures,
see section 3.14.

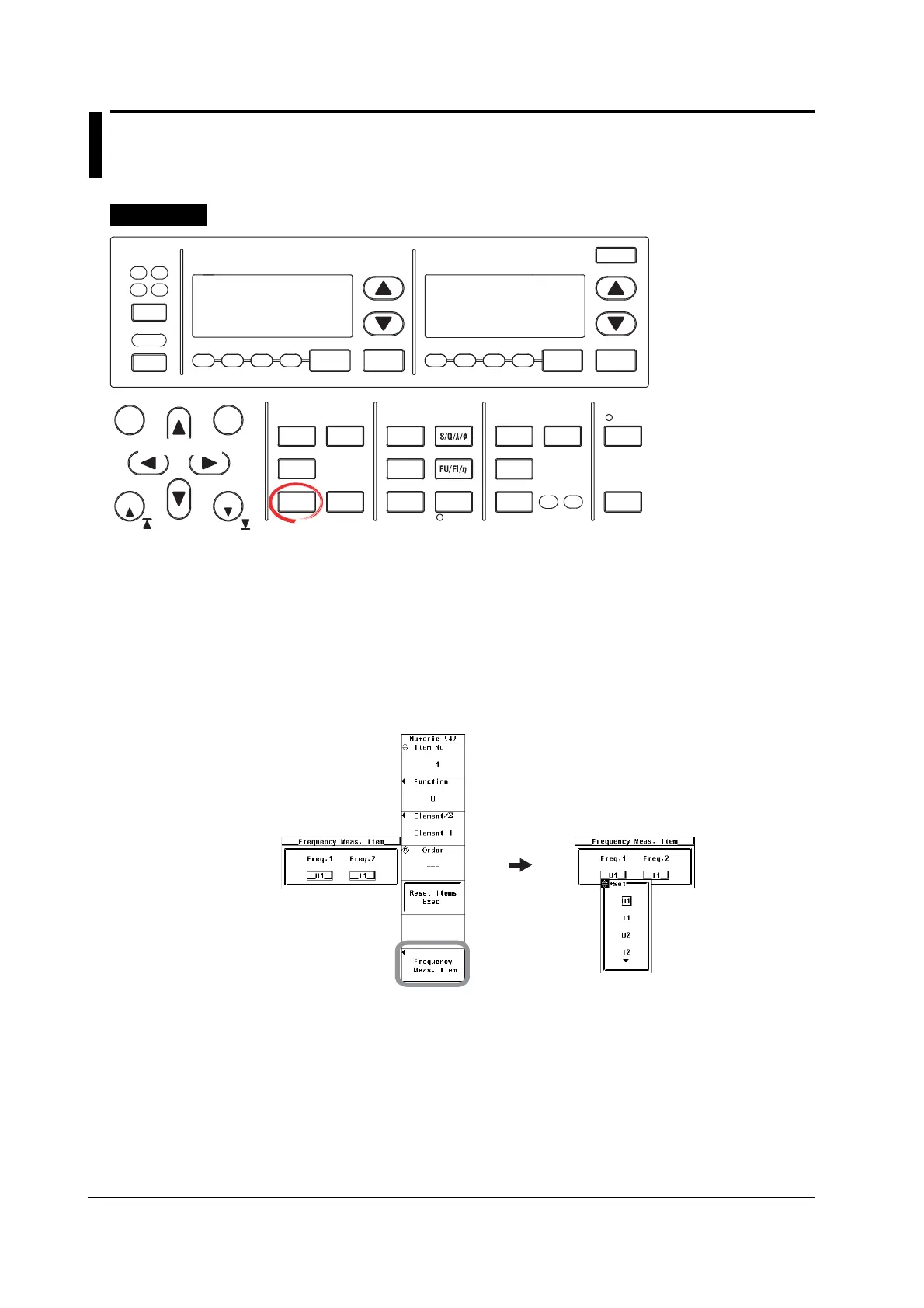

1. Press ITEM to display the Numeric menu.
2. Press the Frequency Meas Item soft key to display the Frequency Meas Item
dialog box.
Only the input signal of installed elements are displayed.
3. Press the cursor keys to select Freq1 or Freq2.
4. Press SET. A box used to select the frequency measurement source appears.
5. Press the cursor keys to select the input signal for measuring the frequency.
6. Press SET to confirm the frequency measurement source.
