7-16 IM 760301-01E
7.8 Restarting the Trend
Procedure
START STOP
REMOTE
CAL
SENSOR RATIO
MEASURING
RMS MEAN DC RMEAN
CURRENT RANGEVOLTAGE RANGE
MEASURING
RMS MEAN DC RMEAN
ALL
INPUT INFO.
LOWER ITEM LOWER FORM ALLUSER SET
DISPLAY
ITEM & ELEMENT
2
34
COMPEN
ELEMENT
ELEMENT
1
WIRING
MODE AUTO MODE
AUTO
EXT SENSOR
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
RESET SET
PAGE PAGE
Cursor keys
To exit the menu during
operation, press ESC
located above the soft
keys.
In the procedural
explanation below, the
phrase “press the cursor
keys” may be used. This
phrase refers to the
procedures for selecting
items and entering values
and character strings. For
details on the procedures,
see section 3.14.

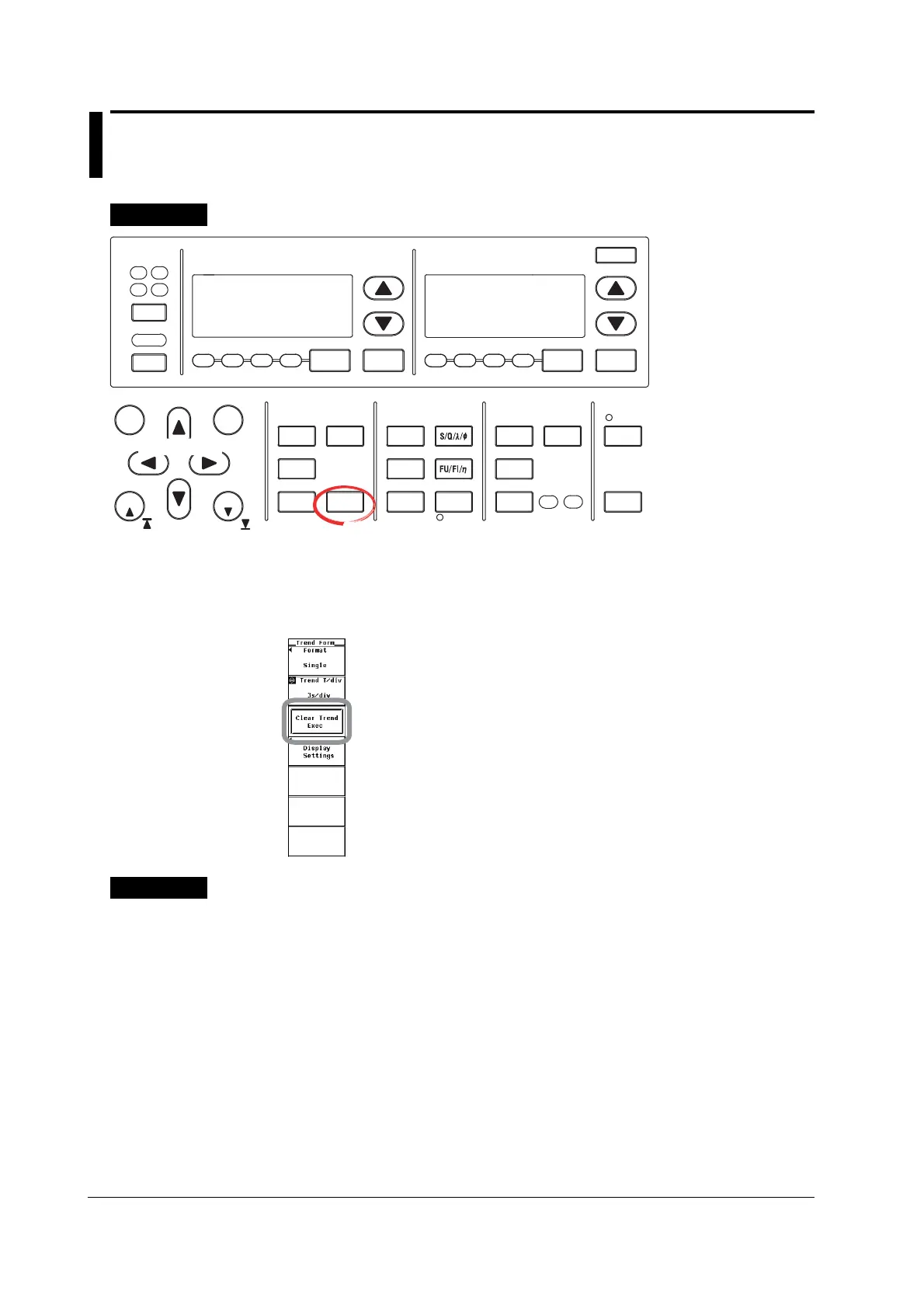

1. Press FORM to display the Trend Form menu.
If the trend display is at the lower section of the screen on the split display, press
SHIFT+FORM (LOWER FORM).
2. Press the Clear Trend Exec soft key to restart the trend.
Explanation
When the trend is restarted, the trend up to that point is cleared.
In addition to pressing the Clear Trend Exec soft key, the following operations cause the
trend to be restarted.
• Changing the trend display target
• Changing the time axis (horizontal axis) setting of the trend.
