3-34 IM 760301-01E
3.16 Switching the Measurement Mode and Display

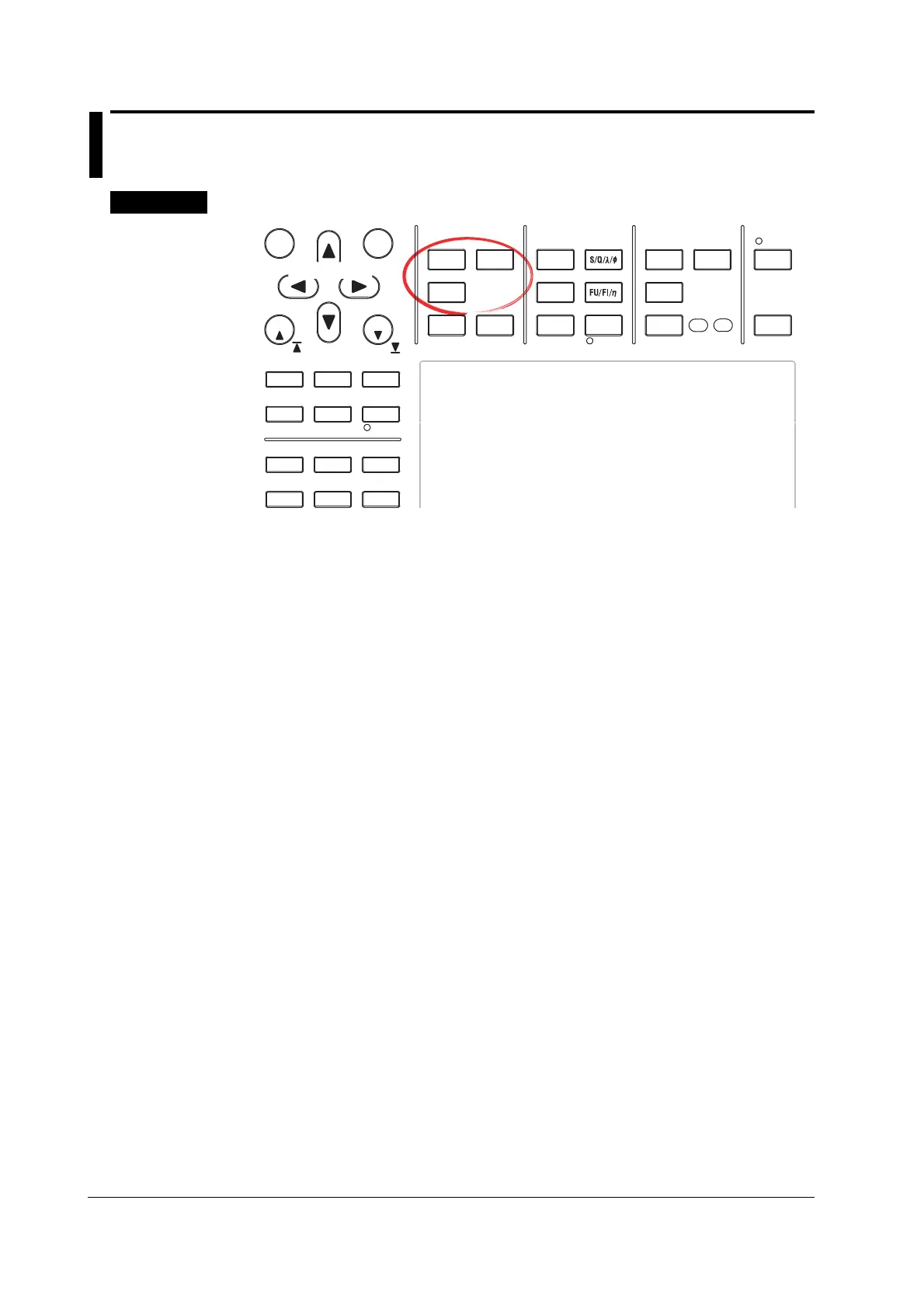

Procedure
START STOP
REMOTE
CAL
MOTOR
SET
CURSOR NULL
MENU STORE SET
MENU
LOWER ITEM LOWER FORM ALL
USER SET
DISPLAY
ITEM & ELEMENT
RESET SET
PAGE PAGE
SCALING
HRM SET
MEASURE
SYNC SOURCE
AVG
LINE FILTER
FREQ
FILTER
FILE
PRINT
MISC
STORE
IMAGE SAVE
HELP
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
To exit the menu during operation, press ESC located above
the soft keys.
In the procedural explanation below, the phrase “press the
cursor keys” may be used. This phrase refers to the
procedures for selecting items and entering values and
character strings. For details on the procedures, see section
3.14.
Cursor keys
Measurement modes other than normal measurement mode can be used on models with
the advanced computation (/G6), voltage fluctuation and flicker measurement (/FL), or
cycle-by-cycle measurement (/CC) option.
• Switching between Normal Measurement/Wide Bandwidth Harmonic
Measurement, IEC Harmonic Measurement, Waveform Computation, FFT,
Voltage Fluctuation and Flicker Measurement, and Cycle-by-Cycle Measurement
Modes
• Enabling Normal Measurement or Wide Bandwidth Harmonic Measurement
Mode
• Numeric Display
1. Press NUMERIC to display numeric values.
• Waveform Display
1. Press WAVE. The waveform is displayed in normal measurement mode.
* The waveform is not displayed in wide bandwidth harmonic measurement mode.
• Trend, Bar Graph, Vector, and Split Displays
1. Press OTHERS to display the Others menu.
2. Press a soft key to select the display mode.
* The trend is not displayed in wide bandwidth harmonic measurement mode.
• Enabling IEC Harmonic Measurement, Waveform Computation, FFT, Voltage
Fluctuation and Flicker Measurement, or Cycle-by-Cycle Measurement Mode
1. Press OTHERS to display the Others menu.
2. Press a soft key to select the measurement mode.
To Next Page
