Before Starting Measurements
Press the Next1/3
soft key.
Press the Next2/3
soft key.
Split display
Split display
IEC harmonic
Voltage fluctuation
and flicker
Cycle by cycle
Waveform computation
Split display
FFT
Bar graph
Trend
Vector
Split display

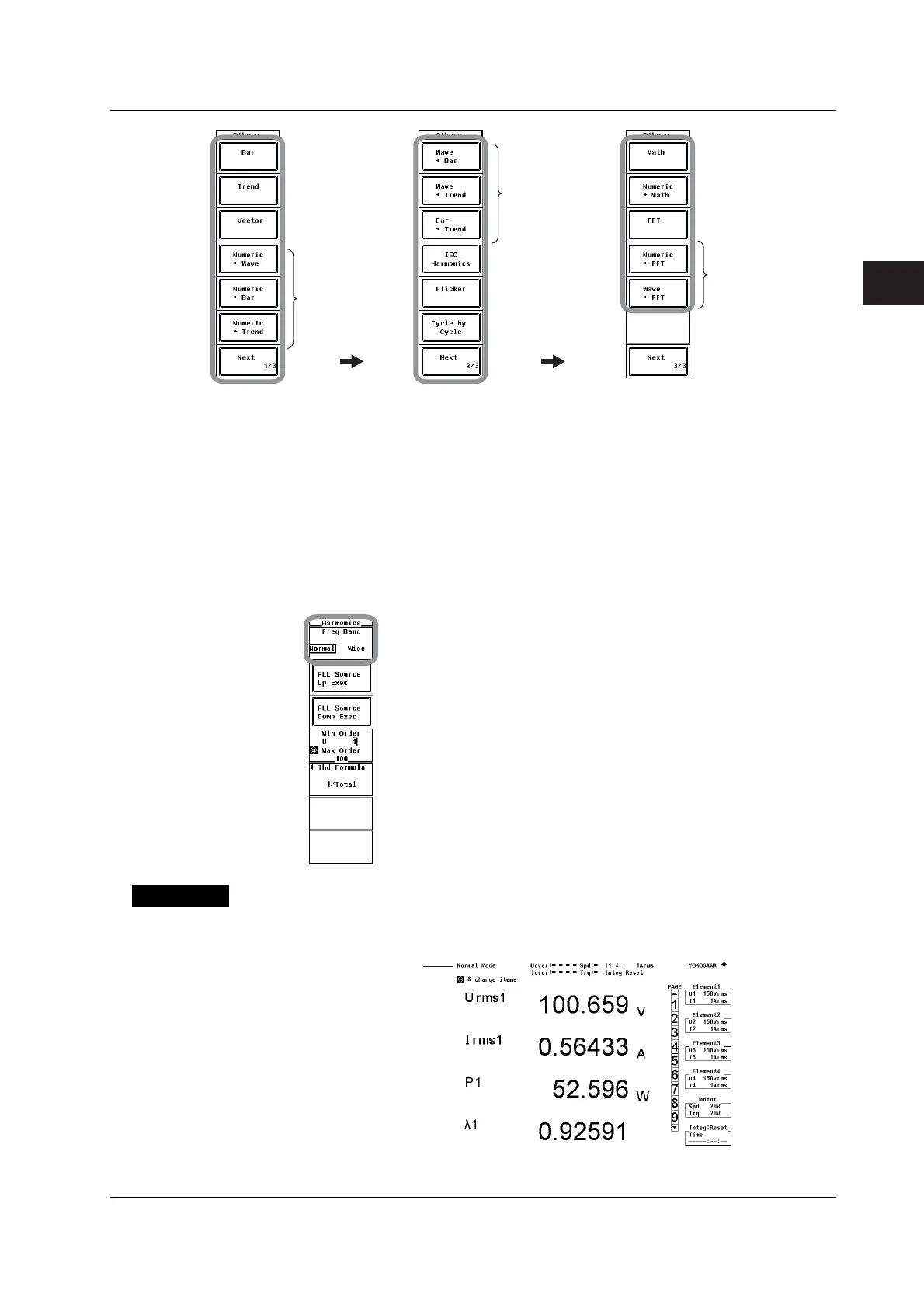

• Switching the Display in Normal Measurement Mode (or Wide Bandwidth
Harmonic Measurement Mode)
Carry out the procedure given in “Enabling Normal Measurement or Wide Bandwidth
Harmonic Measurement Mode” on the previous page.
• Switching between Normal Measurement Mode and Wide Bandwidth Harmonic
Measurement Mode
1. Press HRM SET to display the Harmonics menu.
2. Press the Freq Band soft key to select Normal or Wide.
Explanation
• Measurement Mode Indication
The measurement mode is displayed at the upper left of the screen as shown below.
Measurement mode
3.16 Switching the Measurement Mode and Display
