5.7 Setting the Equation for Efficiency
Procedure
START STOP
REMOTE
CAL
SENSOR RATIO
MEASURING
RMS MEAN DC RMEAN
CURRENT RANGEVOLTAGE RANGE
MEASURING
RMS MEAN DC RMEAN
ALL
INPUT INFO.
LOWER ITEM LOWER FORM ALLUSER SET
DISPLAY ITEM & ELEMENT
2
34
COMPEN
ELEMENT
ELEMENT
1
WIRING
MODE AUTO MODE AUTO
EXT SENSOR
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
RESET SET
PAGE PAGE
Cursor keys
To exit the menu during
operation, press ESC
located above the soft
keys.
In the procedural
explanation below, the
phrase “press the cursor
keys” may be used. This
phrase refers to the
procedures for selecting
items and entering values
and character strings. For
details on the procedures,
see section 3.14.

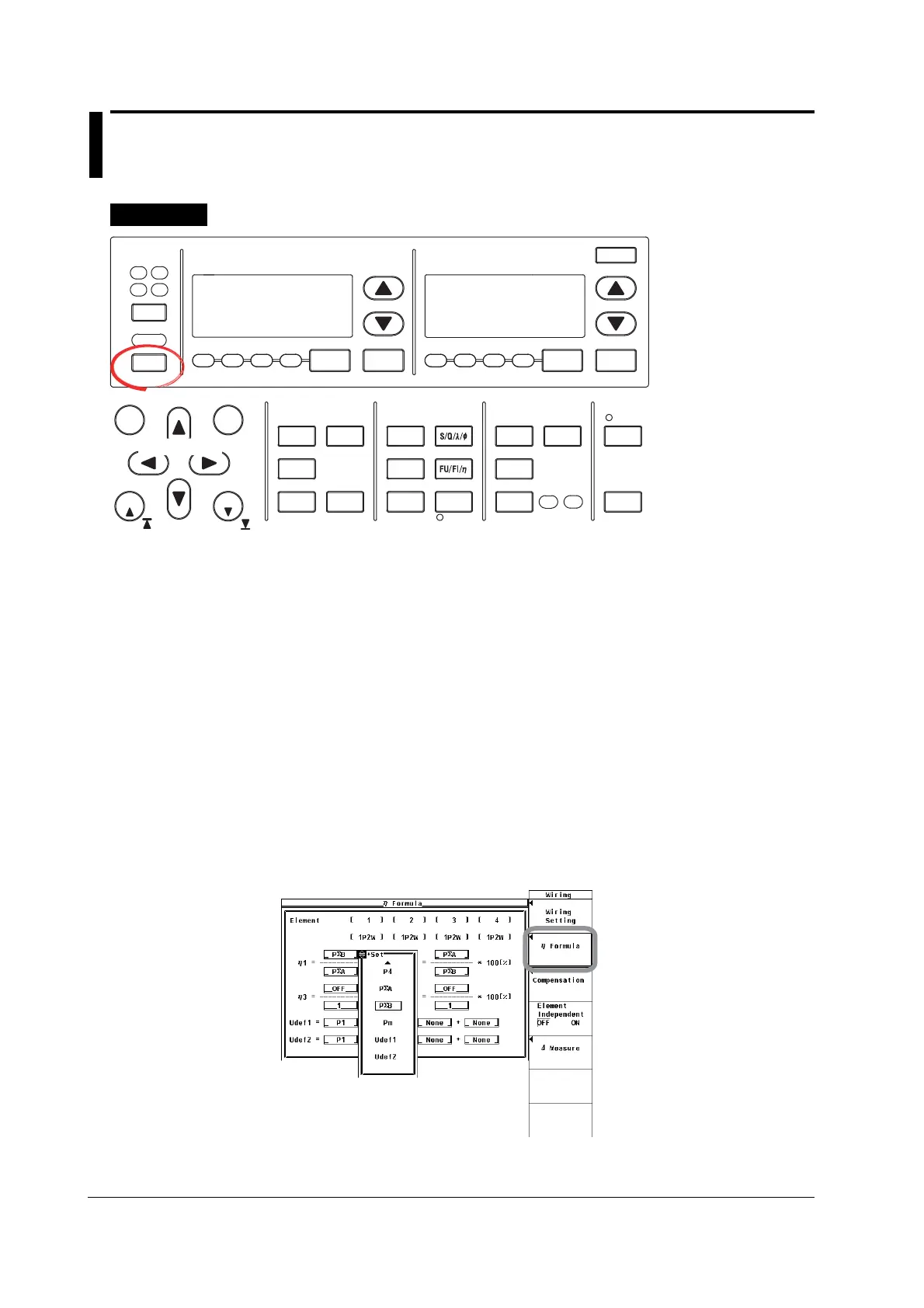

• Setting the Equation for Efficiency
1. Press WIRING to display the Wiring menu.
2. Press the
ηη
ηη
η Formula soft key to display the η Formula dialog box.
3. Press the cursor keys to set the numerator or denominator of the efficiency
equation from η1 to η4.
4. Press SET. A box used to select the parameters for computing the efficiency
appears.
5. Press the cursor keys to select the parameter for computing the efficiency.
To set the sum of multiple parameters to the numerator or denominator in the equation,
select Udef1 or Udef2.
6. Press SET to confirm.
• Setting the Parameters for Computing the Efficiency
1. Press the cursor keys to set the operand of the equation to Udef1 or Udef2.
2. Press SET. A box used to select the computation parameter appears.
3. Press the cursor keys to select the computation parameter.
4. Press SET to confirm.
