YOKOGAWA wt3000 User Manual

6-1
IM 760301-01E
1
2
3
4
5
6
7
8
9
10
11
12
App
Index

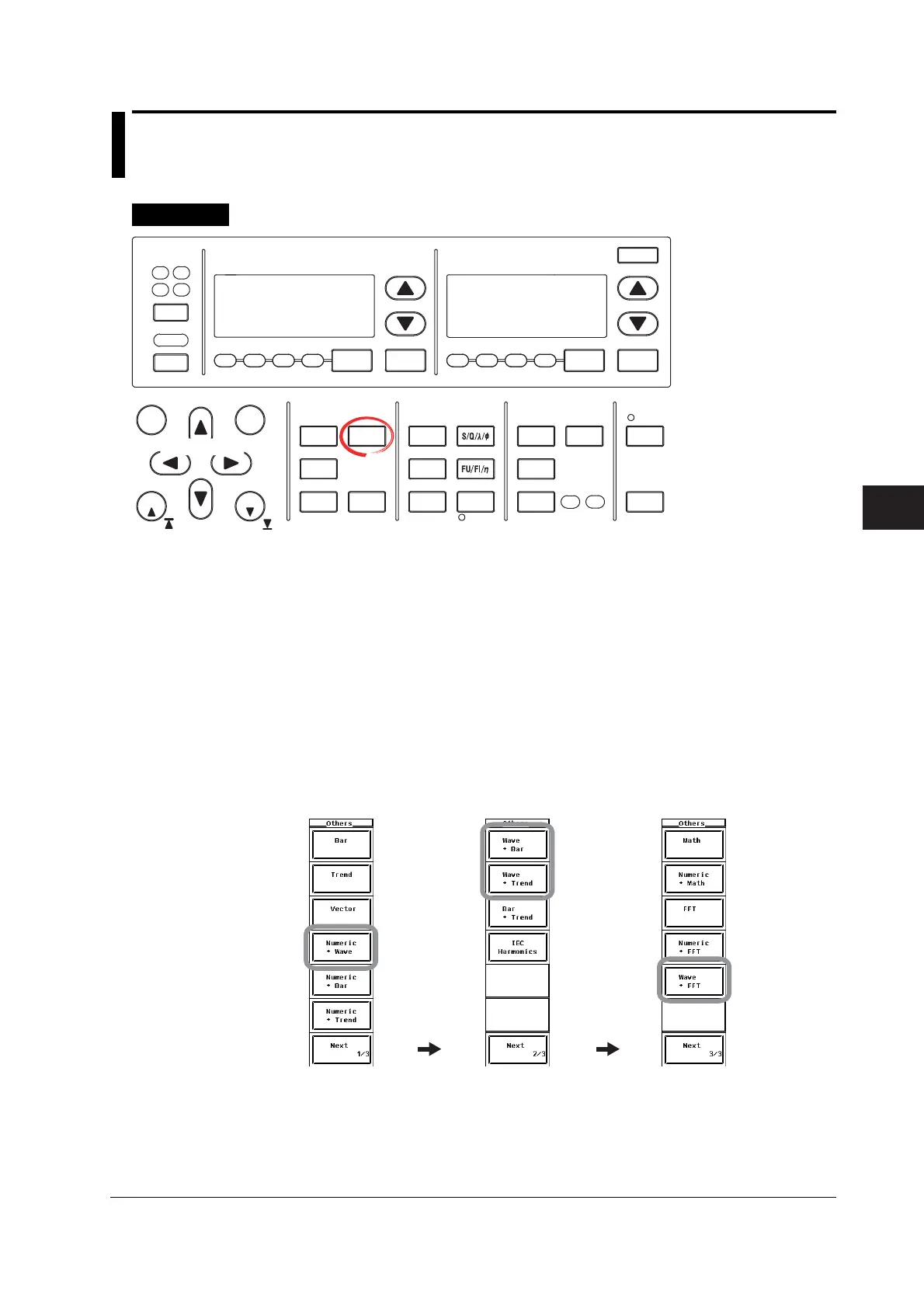

Waveform Display
6.1 Waveform Display
Procedure
START STOP
REMOTE
CAL
SENSOR RATIO
MEASURING
RMS MEAN DC RMEAN
CURRENT RANGEVOLTAGE RANGE
MEASURING
RMS MEAN DC RMEAN
ALL
INPUT INFO.
LOWER ITEM LOWER FORM ALLUSER SET
DISPLAY ITEM & ELEMENT
2
34
COMPEN
ELEMENT
ELEMENT
1
WIRING
MODE AUTO MODE AUTO
EXT SENSOR
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
RESET SET
PAGE PAGE
Cursor keys
To exit the menu during
operation, press ESC
located above the soft
keys.
In the procedural
explanation below, the
phrase “press the cursor
keys” may be used. This
phrase refers to the
procedures for selecting
items and entering values
and character strings. For
details on the procedures,
see section 3.14.
• Displaying the Waveform on the Entire Screen
1. Press WAVE to display the waveform screen.
If wide bandwidth harmonic measurement mode is enabled on models with
the advanced computation (/G6) option, switch to normal measurement
mode. For the procedure, see section 3.16.
• Displaying the Waveform by Dividing the Display into Halves (Split Display)
2. Press OTHERS to display the Others menu.
3. Press any of the soft keys from Numeric+Wave, Wave+Bar,
*1
Wave+Trend,
and Wave+FFT
*2
to select the display mode.
*1 Displayed only on models with the advanced computation (/G6) or harmonic
measurement (/G5) option.
*2 Displayed only to products with the advanced computation (/G6) option.
Press the Next1/3
soft key
Press the Next2/3
soft key
Chapter 6 Waveform Display
