Power Measurement
5.9 Setting the Equations for Apparent Power,
Reactive Power, and Corrected Power
Procedure
START STOP
REMOTE
CAL
MOTOR
SET
CURSOR NULL
MENU STORE SET
MENU
LOWER ITEM LOWER FORM ALL
USER SET
DISPLAY ITEM & ELEMENT
RESET SET
PAGE PAGE
SCALING
HRM SET MEASURE SYNC SOURCE
AVG LINE FILTER
FREQ
FILTER
FILE
PRINT
MISC
STORE IMAGE SAVE
HELP
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
To exit the menu during operation, press ESC located above
the soft keys.
In the procedural explanation below, the phrase “press the
cursor keys” may be used. This phrase refers to the
procedures for selecting items and entering values and
character strings. For details on the procedures, see section
3.14.
Cursor keys

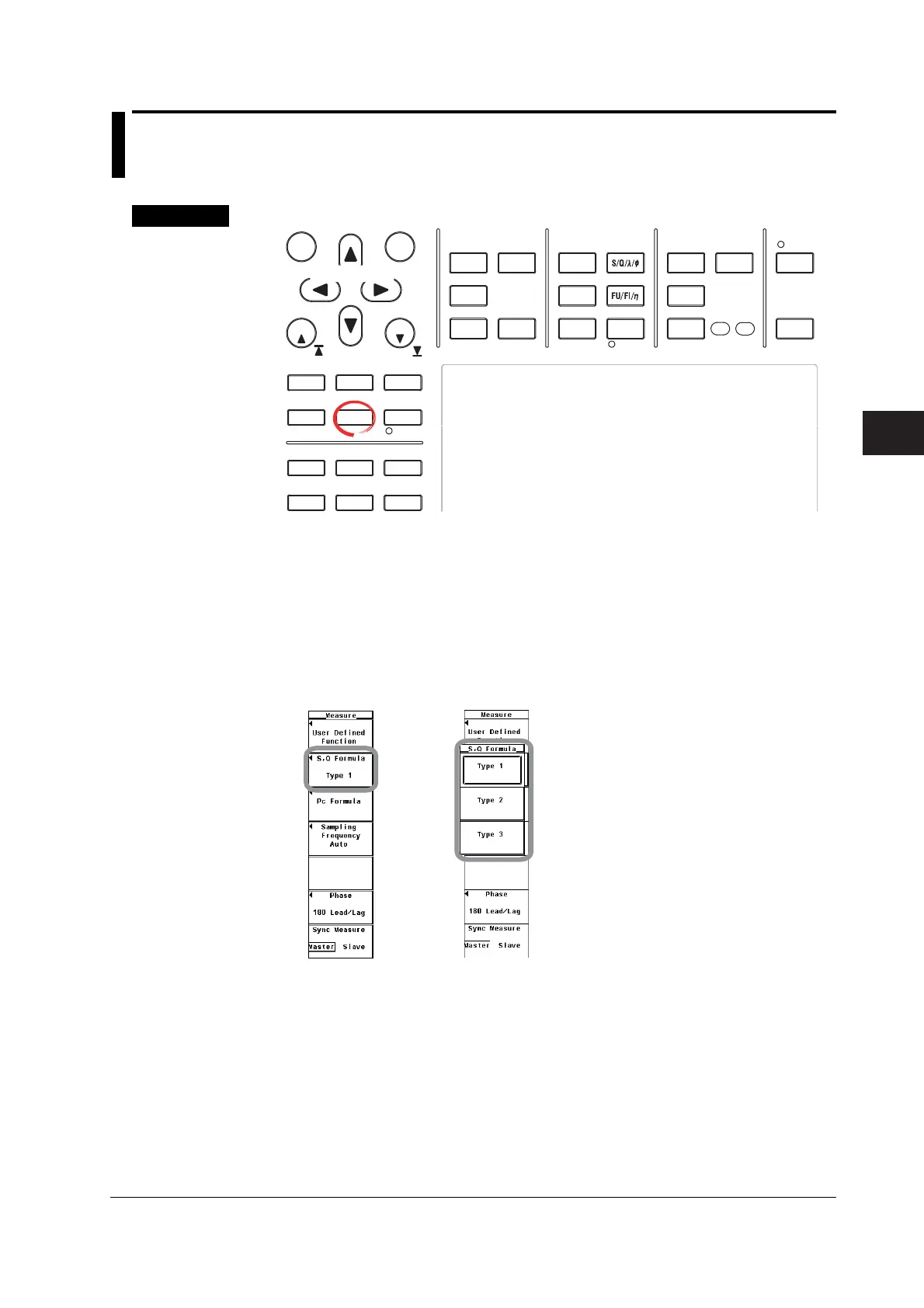

1. Press MEASURE to display the Measure menu.
• Selecting the Equation for Apparent Power and Reactive Power
2. Press the S, Q Formula soft key to display the S, Q Formula menu.
3. Press one of the soft keys from Type1, Type2, Type3
*
to select the equation for
apparent power.
* Displayed only on models with the advanced computation (/G6) or harmonic
measurement (/G5) option.
