3-10 IM 760301-01E
3.6 Assembling the Adapter to Be Connected to
the Voltage Input Terminal
Assembling the 758931 Safety Terminal Adapter
When connecting a measurement cable to the voltage input terminal of the WT3000, use
the 758931 Safety Terminal Adapter that comes with the package or the 758923 Safety
Terminal Adapter that is sold separately. When using the 758931 Safety Terminal
Adapter, assemble it according to the following procedure.

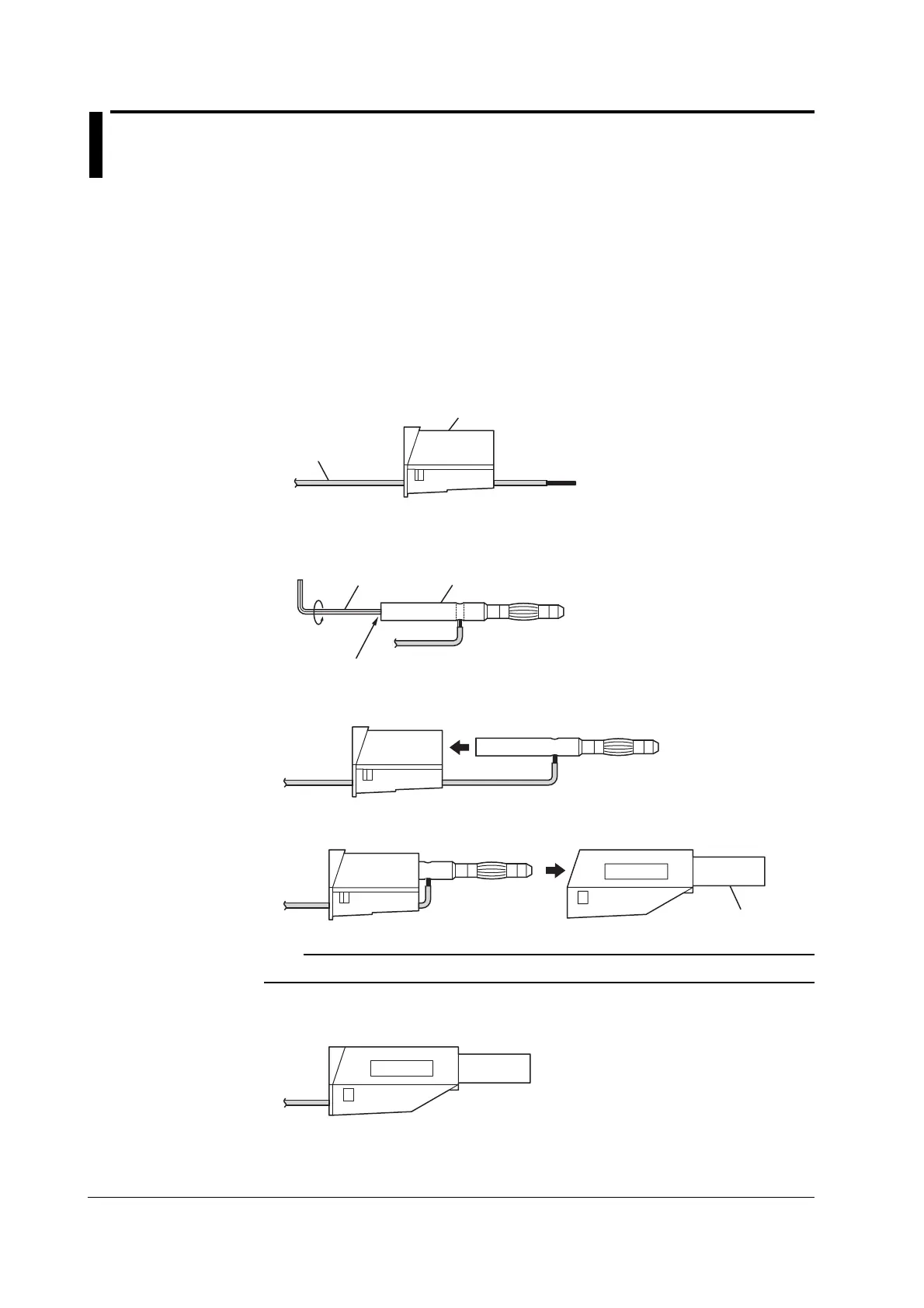

• Assembling the Safety Terminal Adapter
1. Remove approximately 10 mm of the covering from the end of the cable and pass it
through the internal insulator.
Cable
Internal insulator
Attachable cable
Covering: Max. diameter 3.9 mm
Core wire: Max. diameter 1.8 mm
2. Insert the tip of the cable into the plug. Fasten the cable in place using the
hexagonal wrench.
Insert the hexagonal wrench into the plug and tighten
PlugHexagonal wrench
3. Insert the plug into the internal insulator.
4. Attach the external cover. Check that the cover does not come off.
Cover
Note
Once the cover is attached, disassembly is difficult. Use care when attaching the cover.
Below is an illustration of the adapter when the work is completed.
To Next Page
