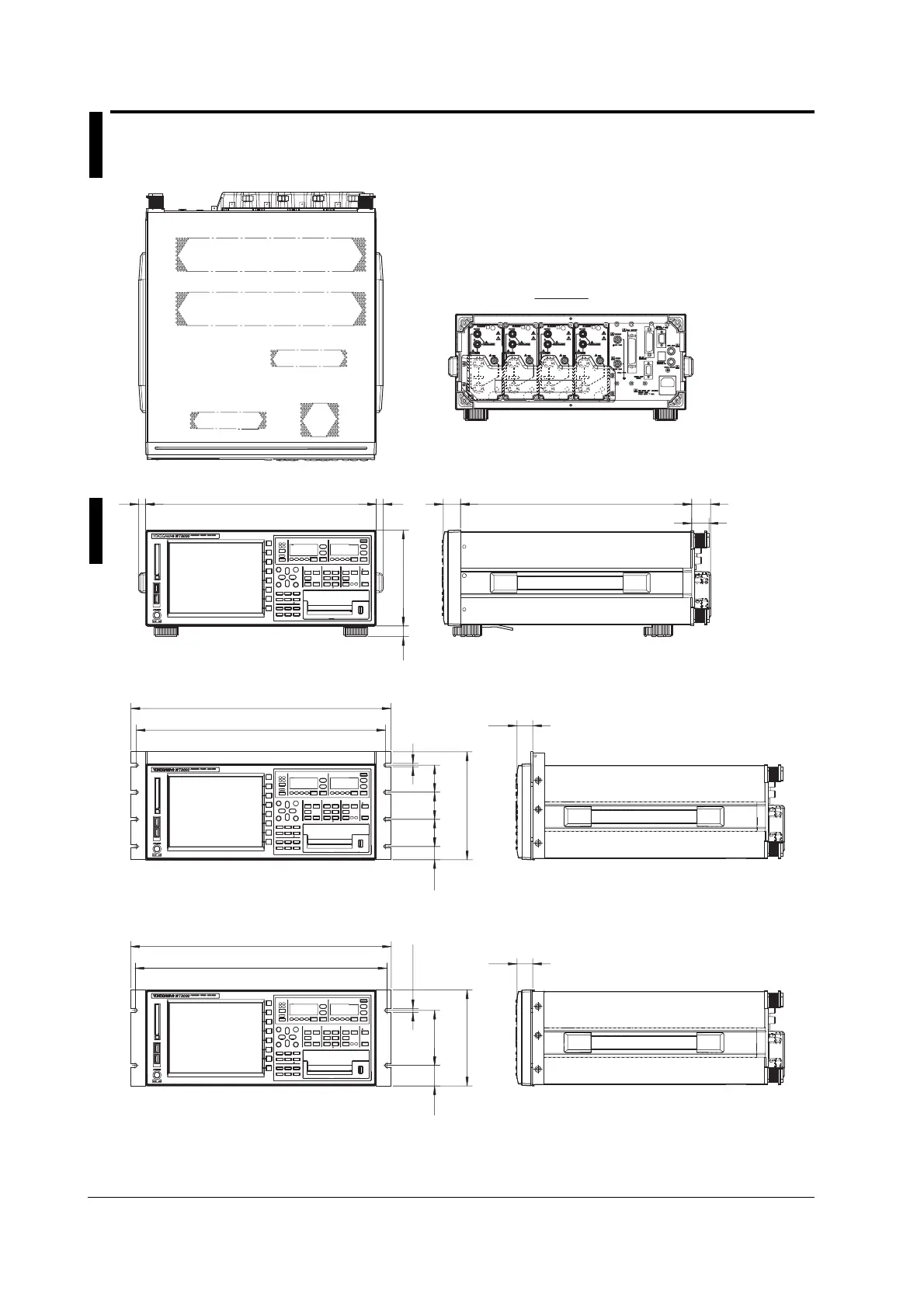

12.13 External Dimensions
13 426 13 32 427 35
17720
480
+
1
-
460
24.5 50 50 50
6
199
-
0.3
0
Dimensions with the JIS rack mount kit
Rack mount attachment plane
Dimensions with the EIA rack mount kit
481.1
+
0.4
-
465
7.1
+
0.3
-
177
-
0.3
0
101.637.7
Rack mount attachment plane
28.9
28.9
Unless otherwise specified, tolerance is ±3% (however, tolerance is ±0.3 mm when below 10 mm).
32
Rear View
Unit: mm

YOKOGAWA wt3000 Specifications

General

Frequency Range	DC, 0.1 Hz to 1 MHz
Number of Input Elements	Up to 4 elements
Harmonic Measurement	Up to 500th order
Interfaces	USB, Ethernet, RS-232
Sampling Rate	2 MS/s
Voltage Range	1.5 V to 1000 V
Display	8.4-inch LCD
