Storing and Recalling Data and Saving the Stored Data
8.2 Setting the Numeric Data and Waveform
Display Data to Be Stored
Procedure
START STOP
REMOTE
CAL
MOTOR
SET
CURSOR NULL
MENU STORE SET
MENU
LOWER ITEM LOWER FORM ALL
USER SET
DISPLAY ITEM & ELEMENT
RESET SET
PAGE PAGE
SCALING
HRM SET MEASURE SYNC SOURCE
AVG LINE FILTER
FREQ
FILTER
FILE
PRINT
MISC
STORE IMAGE SAVE
HELP
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
To exit the menu during operation, press ESC located above
the soft keys.
In the procedural explanation below, the phrase “press the
cursor keys” may be used. This phrase refers to the
procedures for selecting items and entering values and
character strings. For details on the procedures, see section
3.14.
Cursor keys

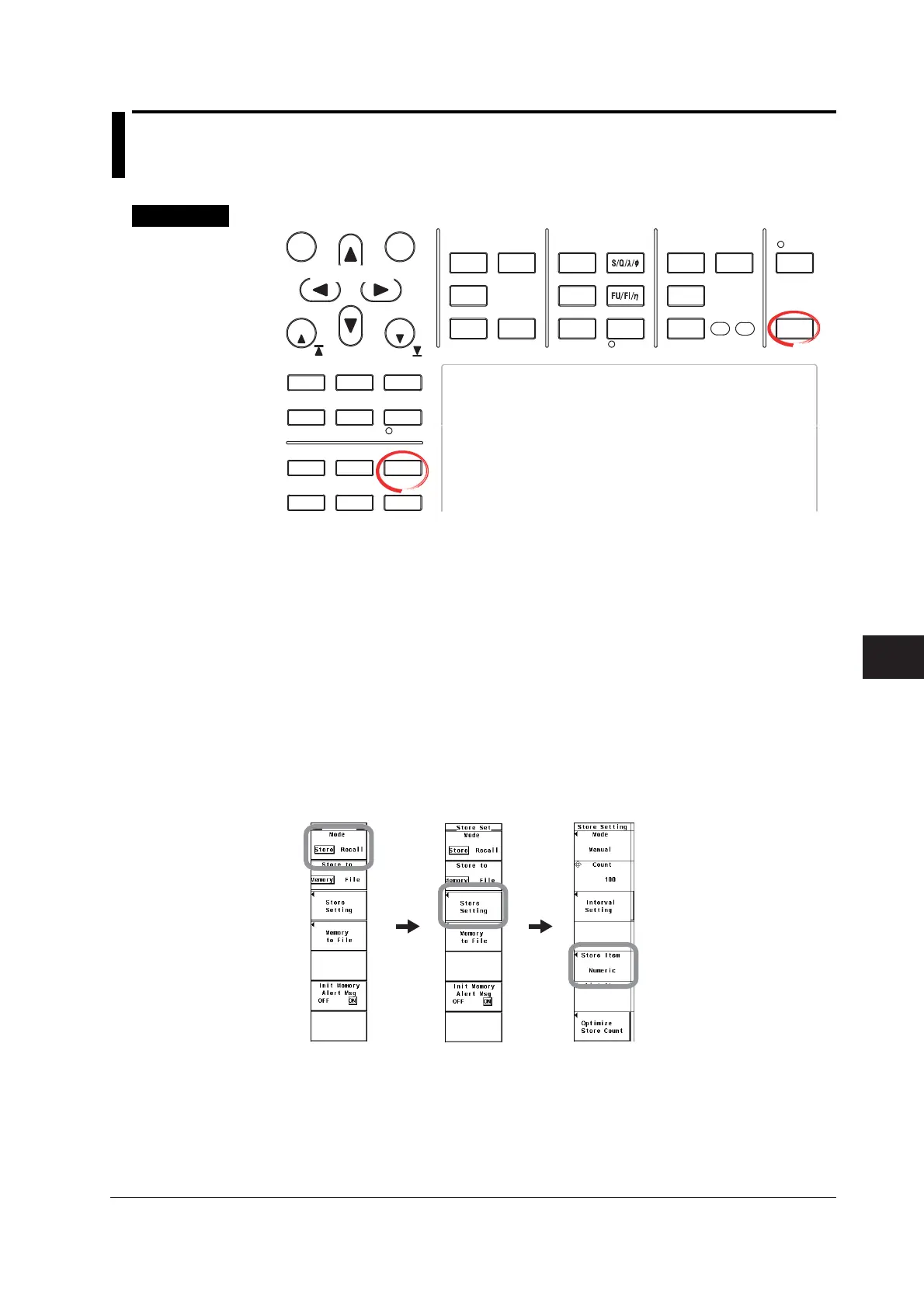

1. Press SHIFT+STORE(STORE SET) to display the Store Set menu.
2. Press the Mode soft key to select Store.
3. Press theStore Setting soft key to display the Store Setting menu.
• Selecting the Item to Be Stored
4. Press the Store Item soft key to display the Store Item menu.
5. Press any soft key from Numeric to Numeric+Wave to select the stored item.
• If you select Numeric, the stored item is the numeric data. Proceed to “Selecting the
Numeric Data to Be Stored” on the next page.
• If you select Wave, the stored item is the waveform display data. Proceed to “Selecting
the Waveform Data to Be Stored” on page 8-5.
• If you select Numeric+Wave, the stored item is both the numeric data and the
waveform display data. Proceed to “Selecting the Numeric Data and Waveform Data to
Be Stored” on page 8-5.
