10-14 IM 760301-01E

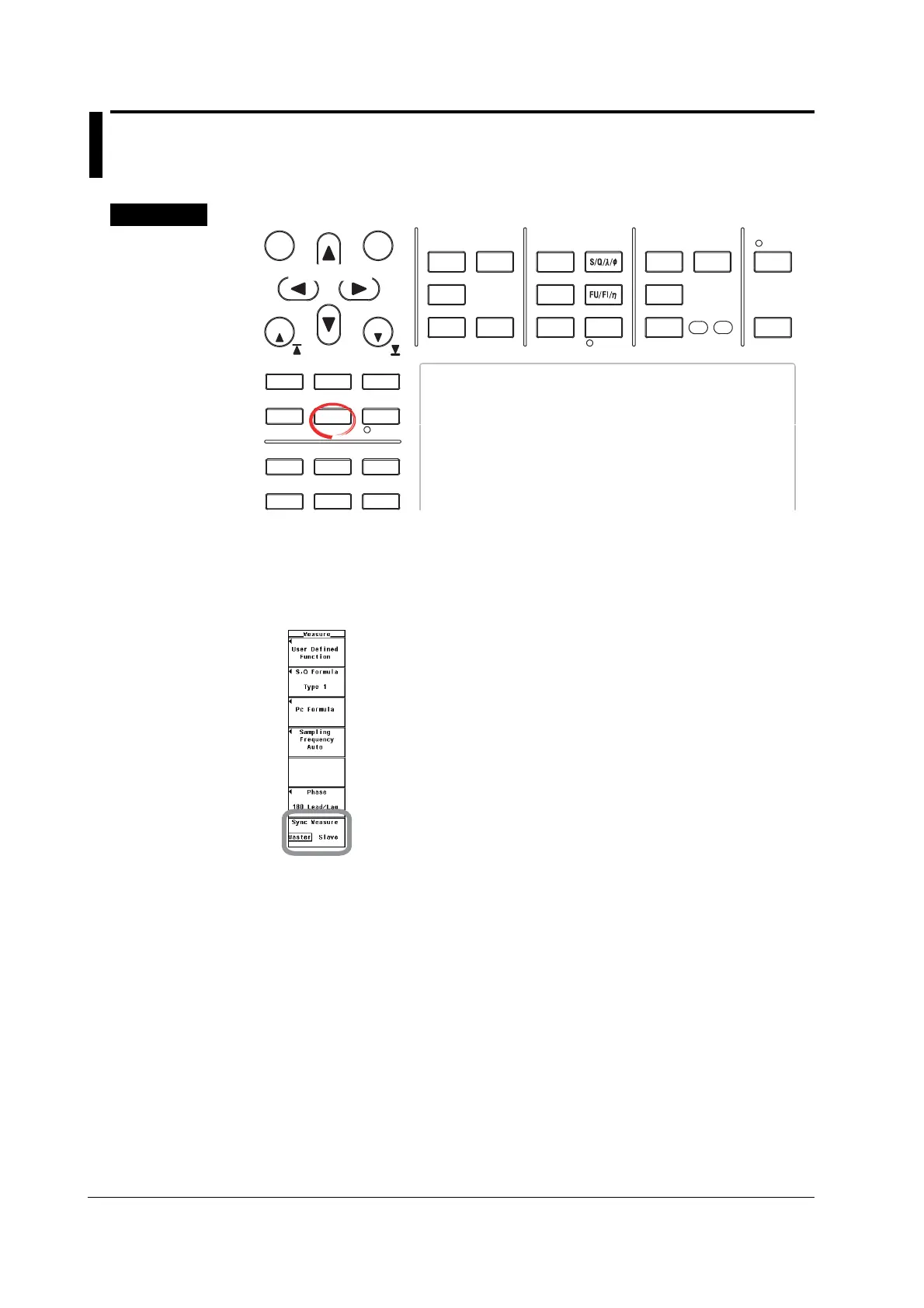

10.9 Master/Slave Synchronization Measurement
Procedure
START STOP
REMOTE
CAL
MOTOR
SET
CURSOR NULL
MENU STORE SET
MENU
LOWER ITEM LOWER FORM ALL
USER SET
DISPLAY
ITEM & ELEMENT
RESET SET
PAGE PAGE
SCALING
HRM SET
MEASURE
SYNC SOURCE
AVG
LINE FILTER
FREQ
FILTER
FILE
PRINT
MISC
STORE
IMAGE SAVE
HELP
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
To exit the menu during operation, press ESC located above
the soft keys.
In the procedural explanation below, the phrase “press the
cursor keys” may be used. This phrase refers to the
procedures for selecting items and entering values and
character strings. For details on the procedures, see section
3.14.
Cursor keys
• Selecting Master or Slave Mode
1. Press MEASURE to display the Measure menu.
2. Press the Sync Measure soft key to select Master or Slave.
Only a single master and a single slave can be specified.
• Performing Synchronized Measurements
Connect the external start signal input/output connectors between the master and
slave instruments using BNC cables (sold separately).
• The slave instrument starts its measurement at approximately the same time as the
start of the measurement on the master instrument.
• The slave instrument stops its measurement at approximately the same time as the
stop of the measurement on the master instrument.
To Next Page
