Troubleshooting, Maintenance, and Inspection
11.3 Self-Test
Procedure
START STOP
REMOTE
CAL
MOTOR
SET
CURSOR NULL
MENU STORE SET
MENU
LOWER ITEM LOWER FORM ALL
USER SET
DISPLAY ITEM & ELEMENT
RESET SET
PAGE PAGE
SCALING
HRM SET MEASURE SYNC SOURCE
AVG LINE FILTER
FREQ
FILTER
FILE
PRINT
MISC
STORE IMAGE SAVE
HELP
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
To exit the menu during operation, press ESC located above
the soft keys.
In the procedural explanation below, the phrase “press the
cursor keys” may be used. This phrase refers to the
procedures for selecting items and entering values and
character strings. For details on the procedures, see section
3.14.
Cursor keys

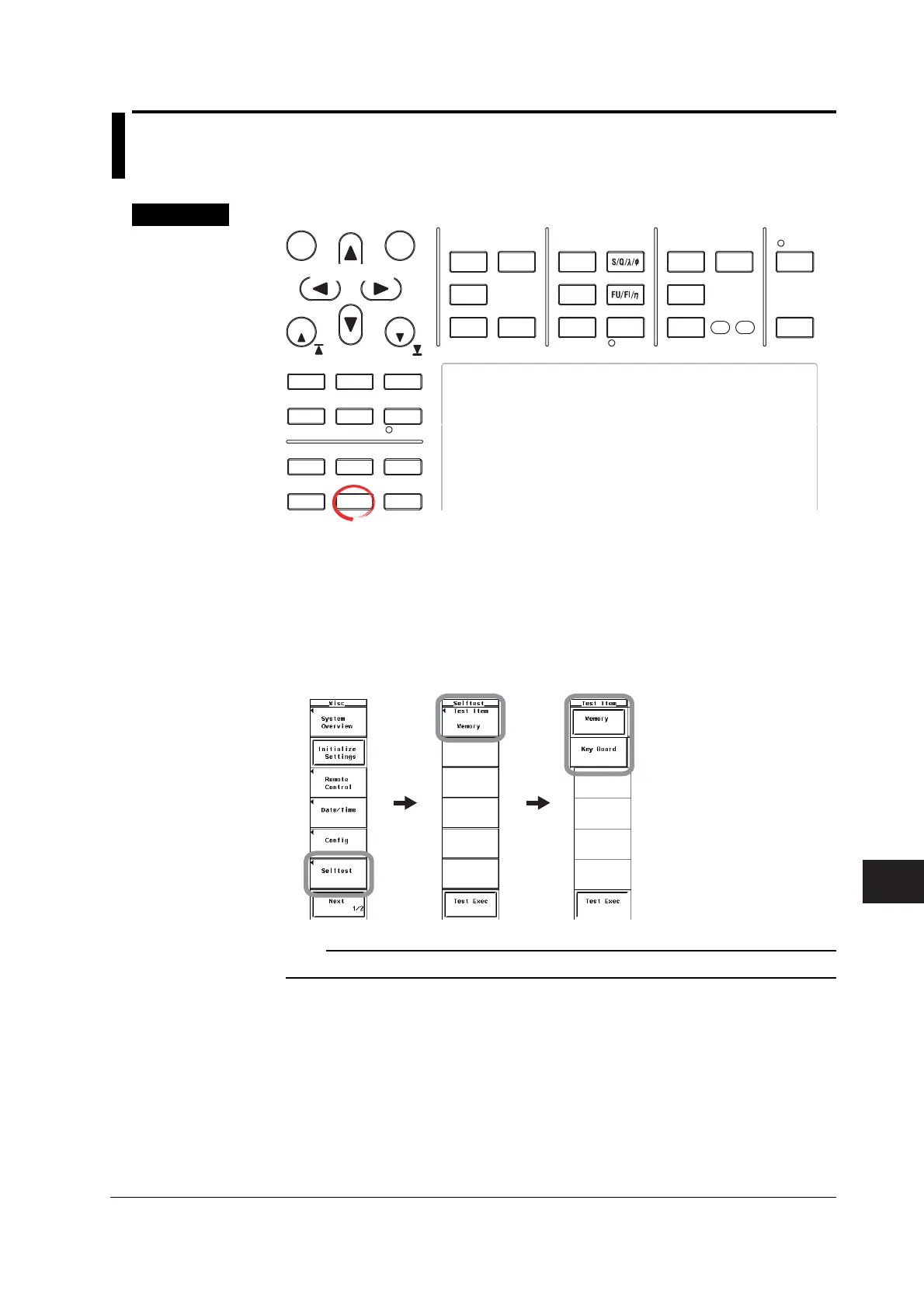

1. Press MISC to display the Misc menu.
2. Press the Selftest soft key to display the Selftest menu.
3. Press the Test Item soft key to display the Test Item menu.
4. Press the Memory or Key Board soft key to select the test item.
If you select Memory, proceed to “Testing the Memory” on the next page.
If you select Key Board, proceed to “Testing the Keys and the Keyboard” on the
next page.
Note
The time display at the lower right corner of the screen may not be updated during the self-test.
• Testing the Memory
5. Press the Memory Test soft key to display the Memory Test menu.
6. Press the System or ACQ RAM soft key to select the memory to be tested.
7. Press the Test Exec soft key to execute the memory test.
