4-29
IM 760301-01E
4
Measurement Conditions
4.11 Hold and Single Measurement

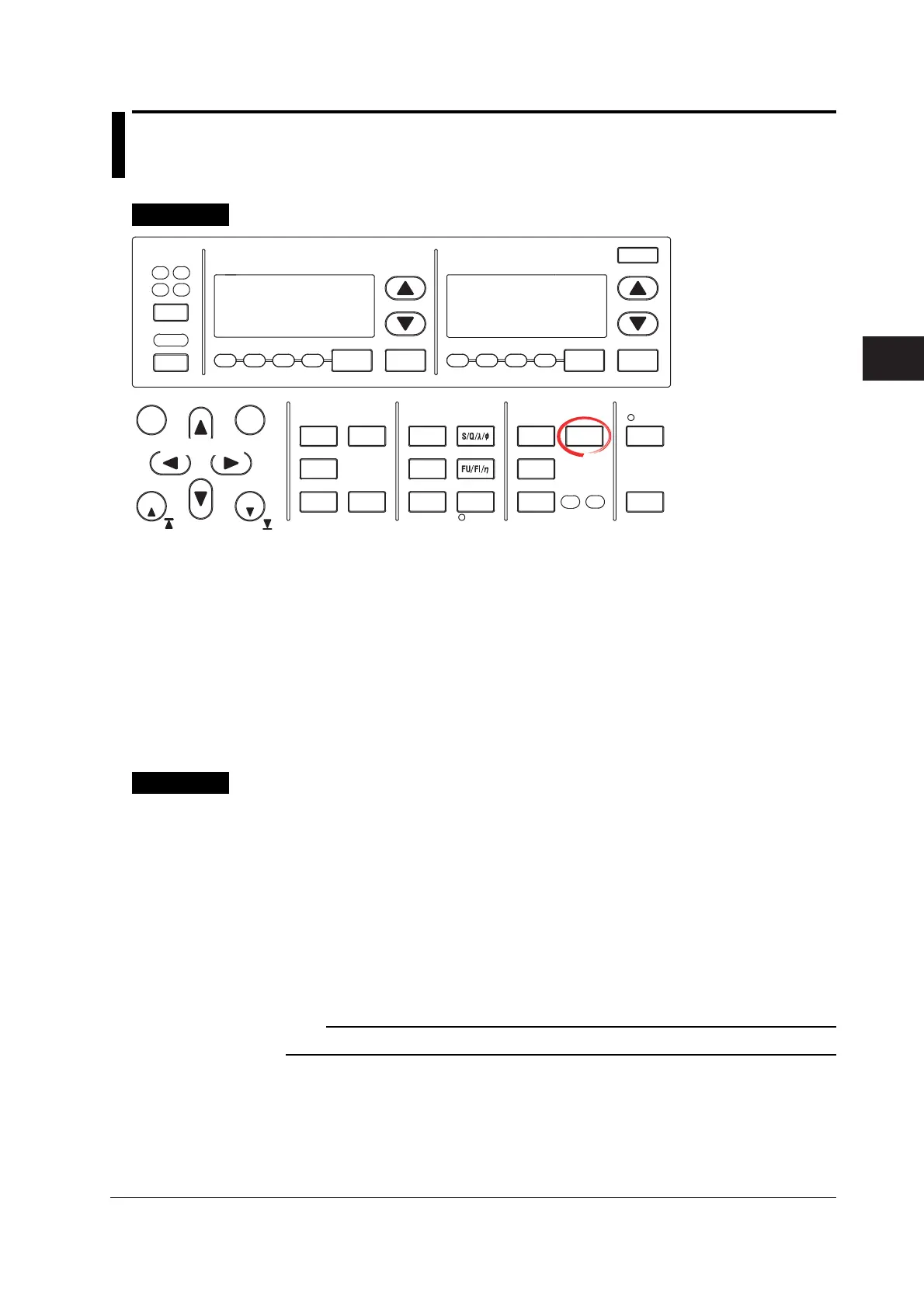

Procedure
START STOP
REMOTE
CAL
SENSOR RATIO
MEASURING
RMS MEAN DC RMEAN
CURRENT RANGEVOLTAGE RANGE
MEASURING
RMS MEAN DC RMEAN
ALL
INPUT INFO.
LOWER ITEM LOWER FORM ALLUSER SET
DISPLAY
ITEM & ELEMENT
2
34
COMPEN
ELEMENT
ELEMENT
1
WIRING
MODE AUTO MODE
AUTO
EXT SENSOR
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
RESET SET
PAGE PAGE
Cursor keys
To exit the menu during
operation, press ESC
located above the soft
keys.
In the procedural
explanation below, the
phrase “press the cursor
keys” may be used. This
phrase refers to the
procedures for selecting
items and entering values
and character strings. For
details on the procedures,
see section 3.14.
• Holding the Numeric Data Display
1. Press HOLD. The HOLD key illuminates, and the numeric data display is held.
• Performing a Single Measurement
2. Press SINGLE. The measurement is performed once and the instrument enters
the hold condition.
• Releasing the Hold Operation
3. Press HOLD while the values are held. The HOLD key turns OFF, and the
numeric data display is updated.
Explanation
• Hold
This function aborts the measurement and display operations that are performed at
the data update rate and holds the data display of various functions. The D/A output,
the numeric data list that the built-in printer prints, the communication output, and
other values are set to the held numeric data.
• Single Measurement
While in the hold condition, the measurement is performed once at the specified data
update rate and enters the hold condition. If you press the SINGLE key when not in
hold condition, measurement is restarted from that point.
Note
For details on the hold function during integration, see section 5.14.
