YOKOGAWA wt3000 - Setting the Manual Integration

5-35
IM 760301-01E
1
2
3
4
5
6
7
8
9
10
11
12
App
Index
Power Measurement
5.12 Setting the Manual Integration
Procedure
START STOP
REMOTE
CAL
SENSOR RATIO
MEASURING
RMS MEAN DC RMEAN
CURRENT RANGEVOLTAGE RANGE
MEASURING
RMS MEAN DC RMEAN
ALL
INPUT INFO.
LOWER ITEM LOWER FORM ALLUSER SET
DISPLAY ITEM & ELEMENT
2
34
COMPEN
ELEMENT
ELEMENT
1
WIRING
MODE AUTO MODE AUTO
EXT SENSOR
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
RESET SET
PAGE PAGE
Cursor keys
To exit the menu during
operation, press ESC
located above the soft
keys.
In the procedural
explanation below, the
phrase “press the cursor
keys” may be used. This
phrase refers to the
procedures for selecting
items and entering values
and character strings. For
details on the procedures,
see section 3.14.

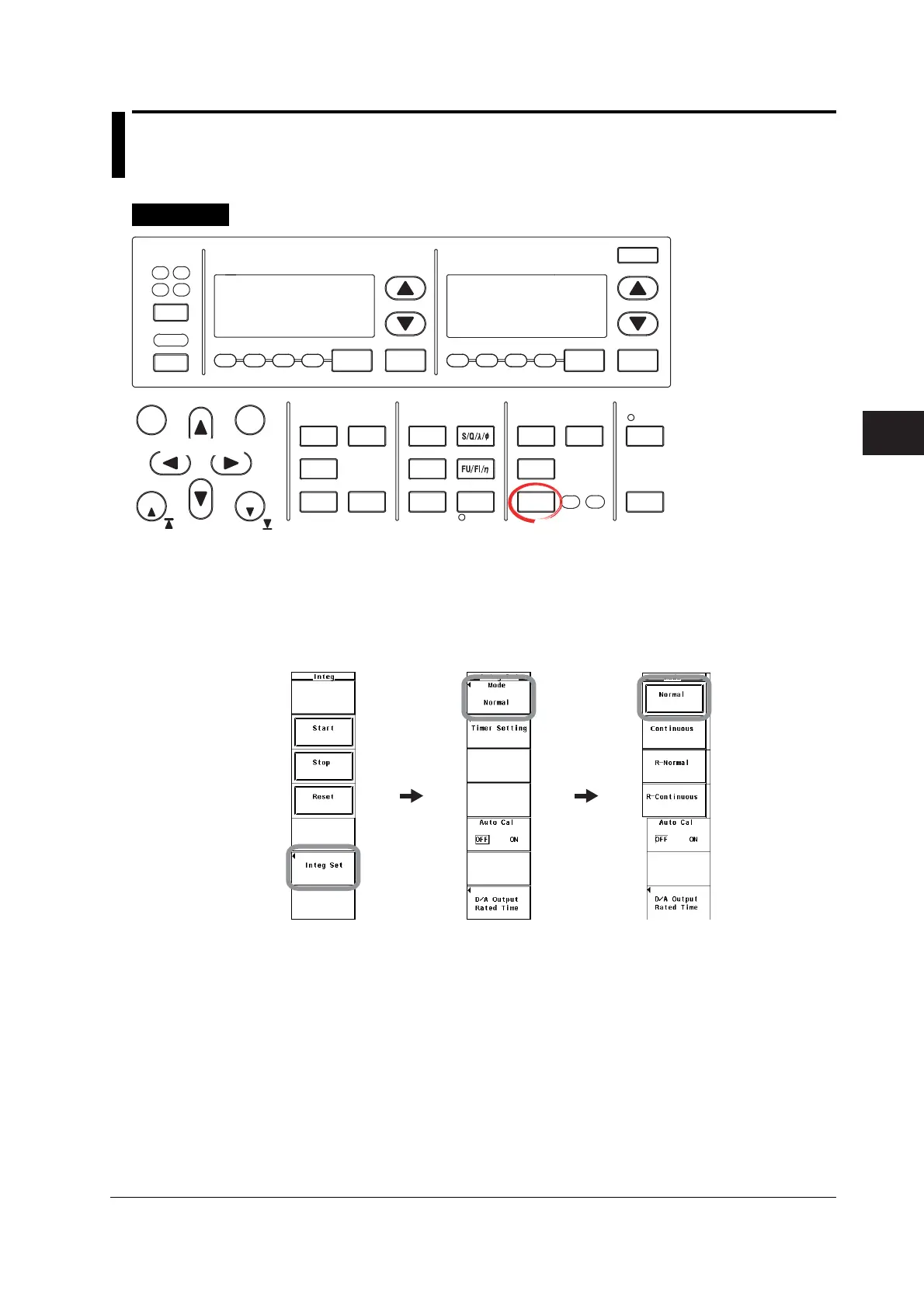

1. Press INTEG to display the Integ menu.
2. Press the Integ Set soft key to display the Integ Set menu.
• Selecting the Normal Integration Mode
3. Press the Mode soft key to display the Mode menu.
4. Press the Normal soft key to select the integration mode.
