9.3 Saving Setup Parameters, Waveform Display
Data, Numeric Data, Waveform Sampling Data
START STOP
REMOTE
CAL
MOTOR
SET
CURSOR NULL
MENU STORE SET
MENU
LOWER ITEM LOWER FORM ALL
USER SET
DISPLAY ITEM & ELEMENT
RESET SET
PAGE PAGE
SCALING
HRM SET MEASURE SYNC SOURCE
AVG LINE FILTER
FREQ
FILTER
FILE
PRINT
MISC
STORE IMAGE SAVE
HELP
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
To exit the menu during operation, press ESC located above
the soft keys.
In the procedural explanation below, the phrase “press the
cursor keys” may be used. This phrase refers to the
procedures for selecting items and entering values and
character strings. For details on the procedures, see section
3.14.
Cursor keys
Procedure

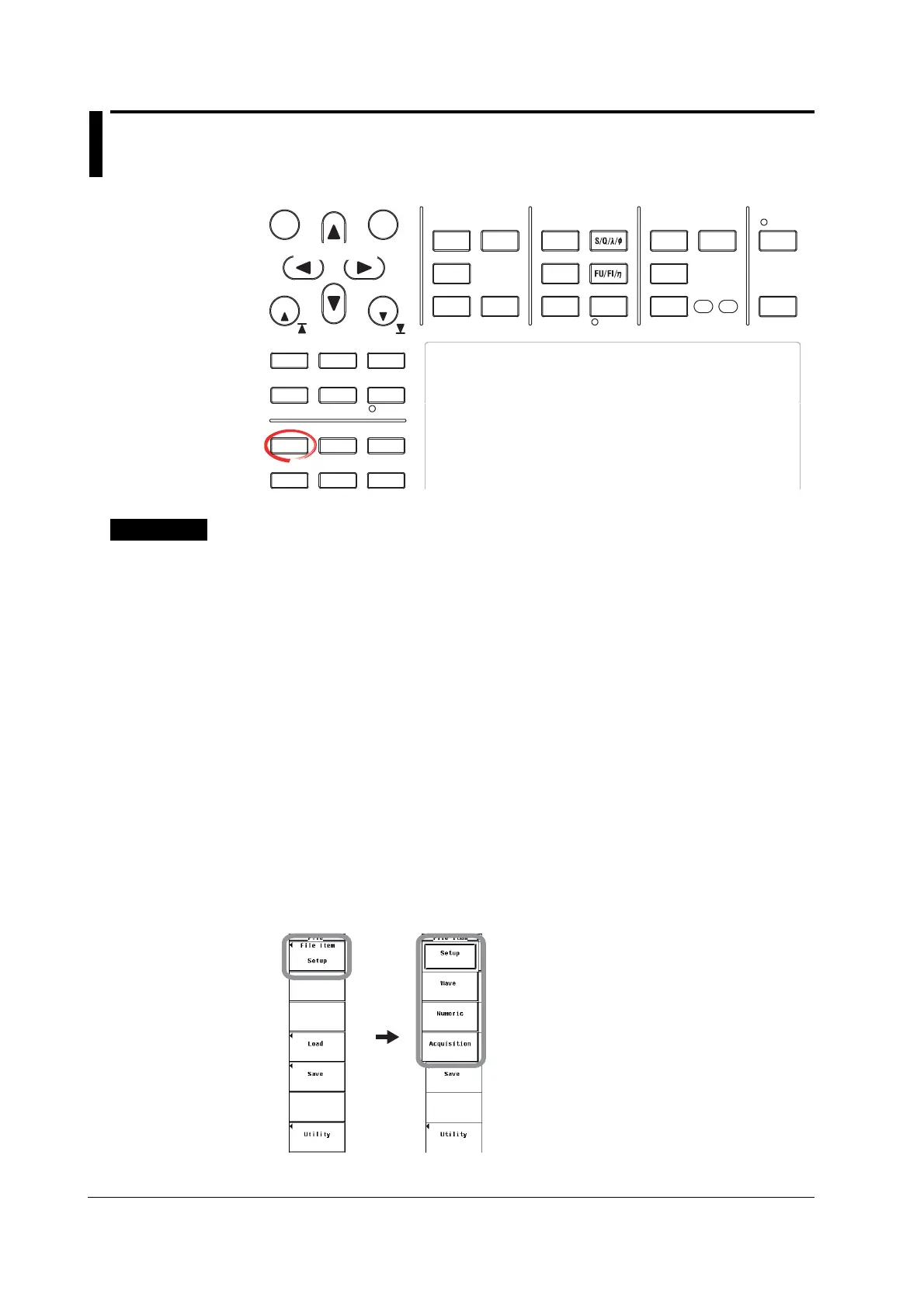

1. Press FILE to display the File menu.
• Selecting the Item to Be Saved
2. Press the File Item soft key to display the File Item menu.
3. Press one of the soft keys from Setup to Numeric or Acquisition* to select the
item to be saved.
Select Acquisition to save the power spectrum waveform data in FFT mode.
Select Numeric to save the measured data of cycle-by-cycle measurement
mode.
If you selected Setup, proceed to step 11 under “Executing/Aborting the Save
Operation” on page 9-10.
If you selected Wave, proceed to “Selecting the Waveform Display Data” on the
next page.
If you selected Numeric, proceed to “Selecting the Numeric Data” on the 9-8.
If Acquisition is selected, proceed to “Selecting the Waveform Sampling Data”
on page 9-9.
* Displayed only to products with the advanced computation (/G6) option.
