Power Measurement
5.15 Turning ON/OFF the Integration Auto
Calibration
Procedure
START STOP
REMOTE
CAL
SENSOR RATIO
MEASURING
RMS MEAN DC RMEAN
CURRENT RANGEVOLTAGE RANGE
MEASURING
RMS MEAN DC RMEAN
ALL
INPUT INFO.
LOWER ITEM LOWER FORM ALLUSER SET
DISPLAY ITEM & ELEMENT
2
34
COMPEN
ELEMENT
ELEMENT
1
WIRING
MODE AUTO MODE AUTO
EXT SENSOR
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
RESET SET
PAGE PAGE
Cursor keys
To exit the menu during
operation, press ESC
located above the soft
keys.
In the procedural
explanation below, the
phrase “press the cursor
keys” may be used. This
phrase refers to the
procedures for selecting
items and entering values
and character strings. For
details on the procedures,
see section 3.14.

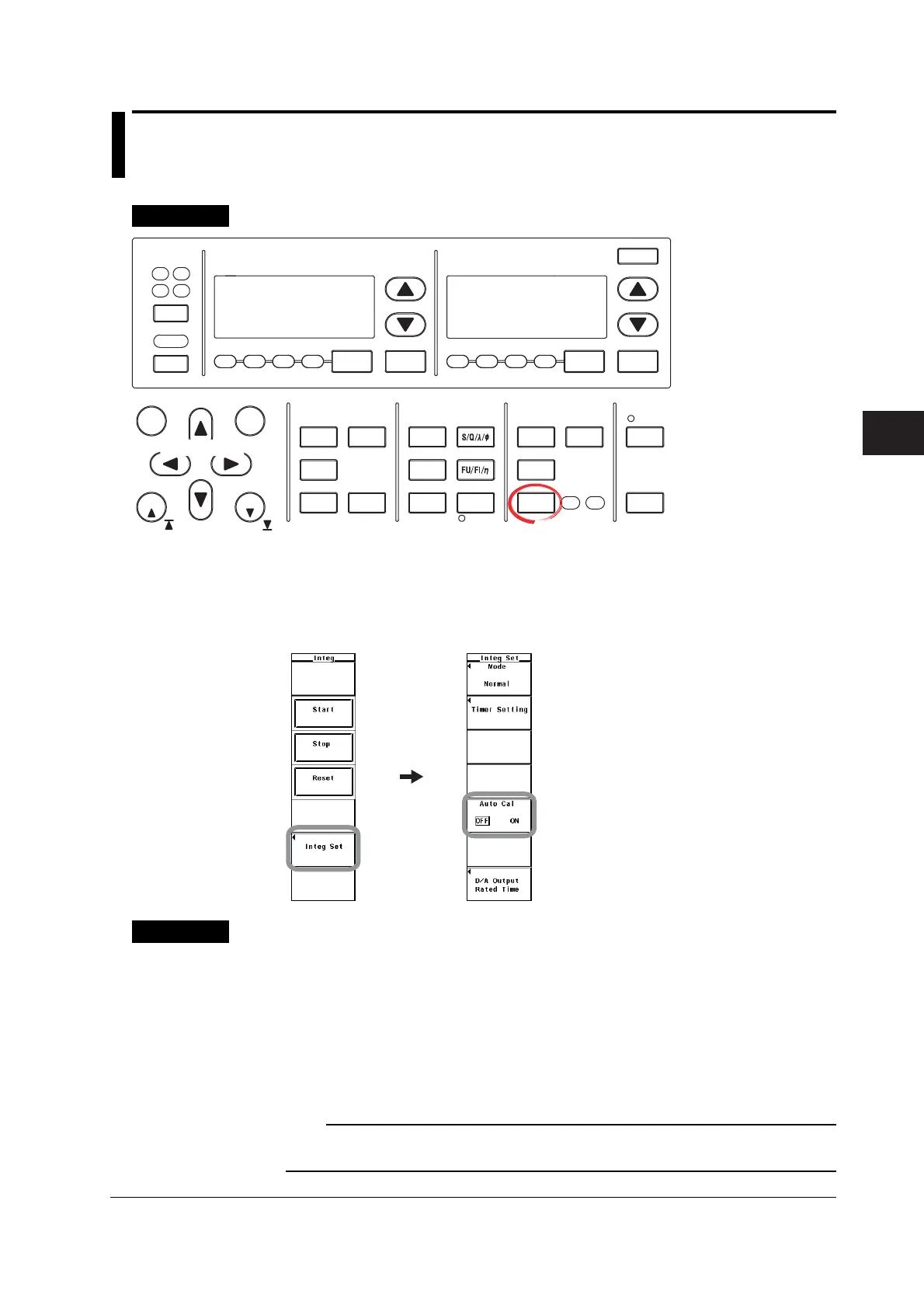

1. Press INTEG to display the Integ menu.
2. Press the Integ Set soft key to display the Integ Set menu.
Turning ON/OFF the Integration Auto Calibration
3. Press the Auto Cal soft key to select ON or OFF.
Explanation
Turning ON/OFF Integration Auto Calibration
Zero-level compensation is normally performed when the measurement range or line
filter is changed. However, zero-level compensation can be automatically performed
during integration.
• ON: Zero-level compensation is automatically performed every hour while
integration is in progress.
• OFF: Zero-level compensation is not automatically performed while integration is
in progress.
Note
When integration auto calibration is ON and zero-level compensation is in progress, the
power or current value measured immediately before is integrated.
