8-4 IM 760301-01E
• Selecting the Numeric Data to Be Stored
(This operation is valid if the stored item was set to Numeric or Numeric+Wave in step 5.)

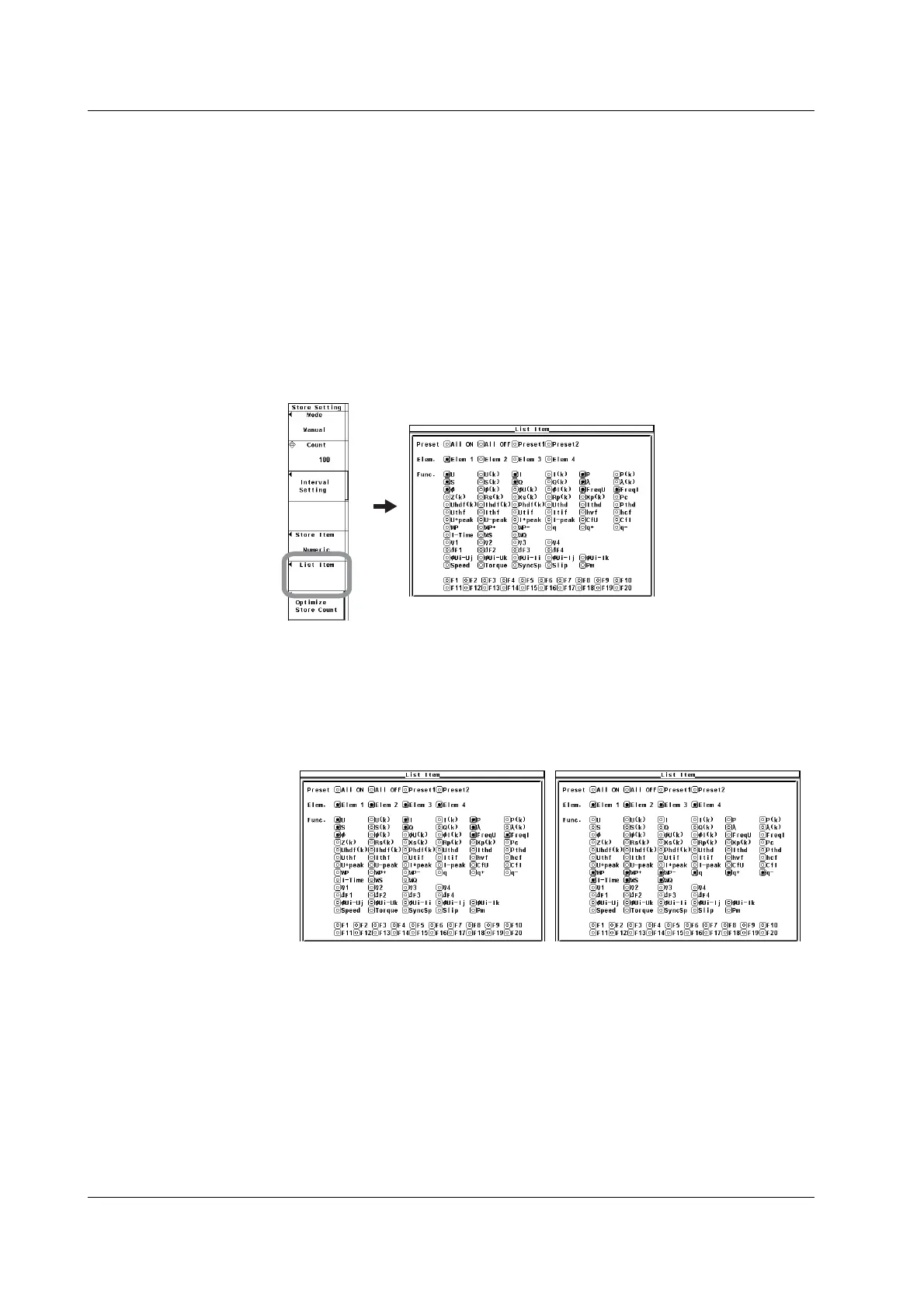

6. Press the List Item soft key to display the List Item dialog box.
• Selecting the Items at Once
7. Press the cursor keys to select All ON.
8. Press SET. The buttons to the left of all the elements and measurement
functions are highlighted indicating that all items will be stored.
• Deselecting All the Items at Once
7. Press the cursor keys to select All OFF.
8. Press SET. The highlighting of the buttons to the left of all the elements and
measurement functions are cleared indicating that all items will not be stored.
• Selecting Only the Items That Are Preset
7. Press the cursor keys to select Preset1 or Preset2.
8. Press SET. The buttons to the left of all the elements and measurement
functions that are specified in Preset1 or Preset2 are highlighted indicating that
the items will be stored.
Items set to Preset1 Items set to Preset2
• Setting the Items One at a Time
7. Press the cursor keys to select the element or measurement function that you
wish to specify.
8. Press SET. When the button to the left of the selected element or measurement
function is highlighted, the numeric data of the measurement function of the
element will be stored. When the highlighting of the button is cleared, the
numeric data of the measurement function of the element will not be stored.
8.2 Setting the Numeric Data and Waveform Display Data to Be Stored
To Next Page
