Storing and Recalling Data and Saving the Stored Data
• Selecting the Waveform Display Data to Be Stored
(This operation is valid if the stored item was set to Wave or Numeric+Wave in step 5.)

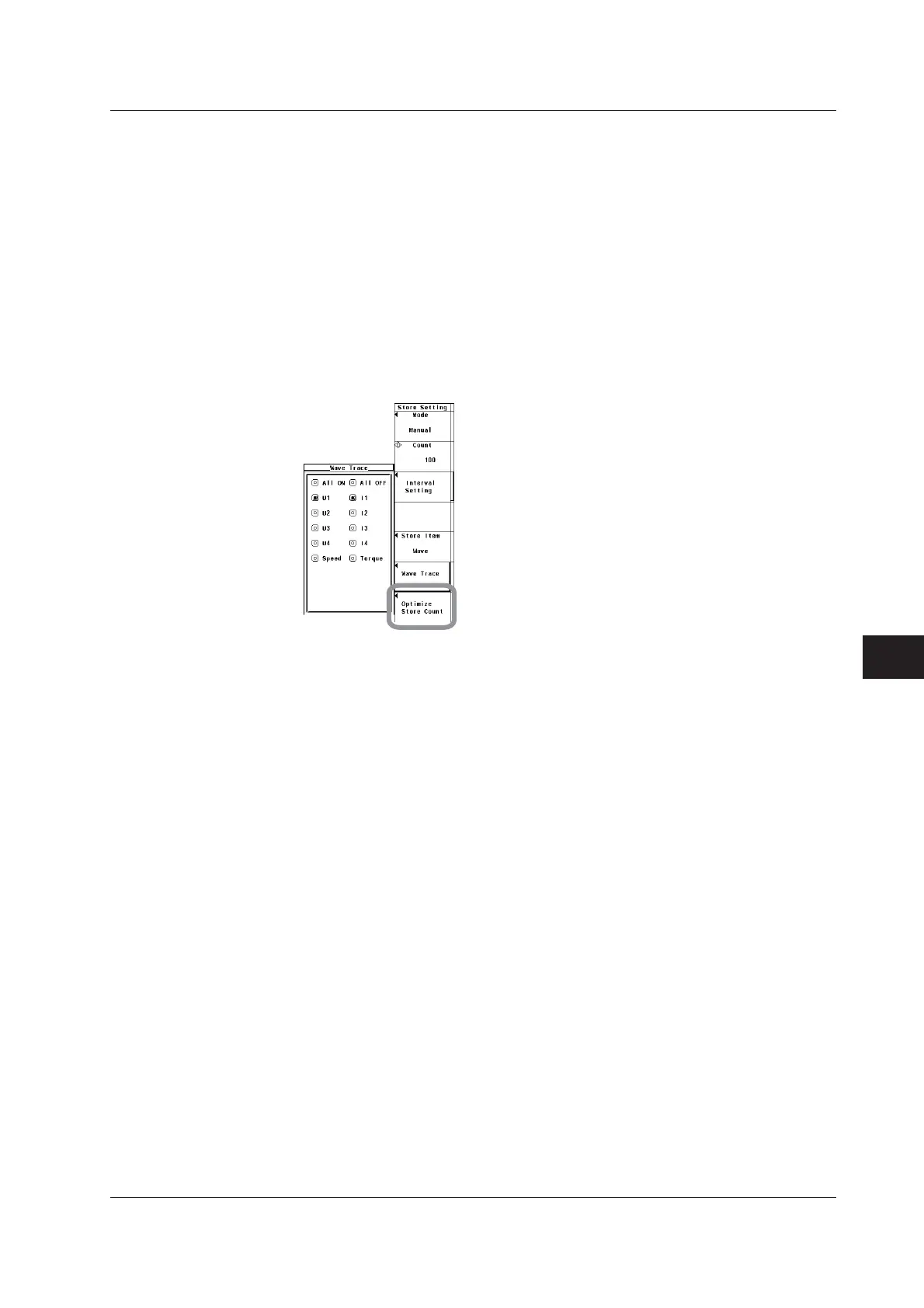

6. Press the Wave Trace soft key to display the Wave Trace dialog box.
• Selecting the Items at Once
7. Press the cursor keys to select All ON.
8. Press SET. The buttons to the left of all the signals are highlighted indicating
that all items will be stored.
• Deselecting All the Items at Once
7. Press the cursor keys to select All OFF.
8. Press SET. The highlighting of the buttons to the left of all the signals are
cleared indicating that all items will not be stored.
• Setting the Items One at a Time
7. Press the cursor keys to select the input signal you wish to set.
8. Press SET. When the button to the left of the selected input signal is highlighted,
the input signal will be stored. If the highlighting of the button is cleared, the
input signal will not be stored.
• Selecting the Numeric Data and Waveform Data to Be Stored
(This operation is valid if the stored item was set to Numeric+Wave in step 5.)
6. Press the List Item & Wave Trace soft key to display the List Item & Wave
Trace dialog box.
7. Select the numeric data to be stored according to steps 7 and 8 in “Selecting the
Numeric Data to Be Stored” on page 8-4.
8. Select the waveform data to be stored according to steps 7 and 8 in “Setting the
Items One at a Time” under “Selecting the Waveform Data to Be Stored”
described above.
8.2 Setting the Numeric Data and Waveform Display Data to Be Stored
To Next Page
