• Setting the CT Ratio

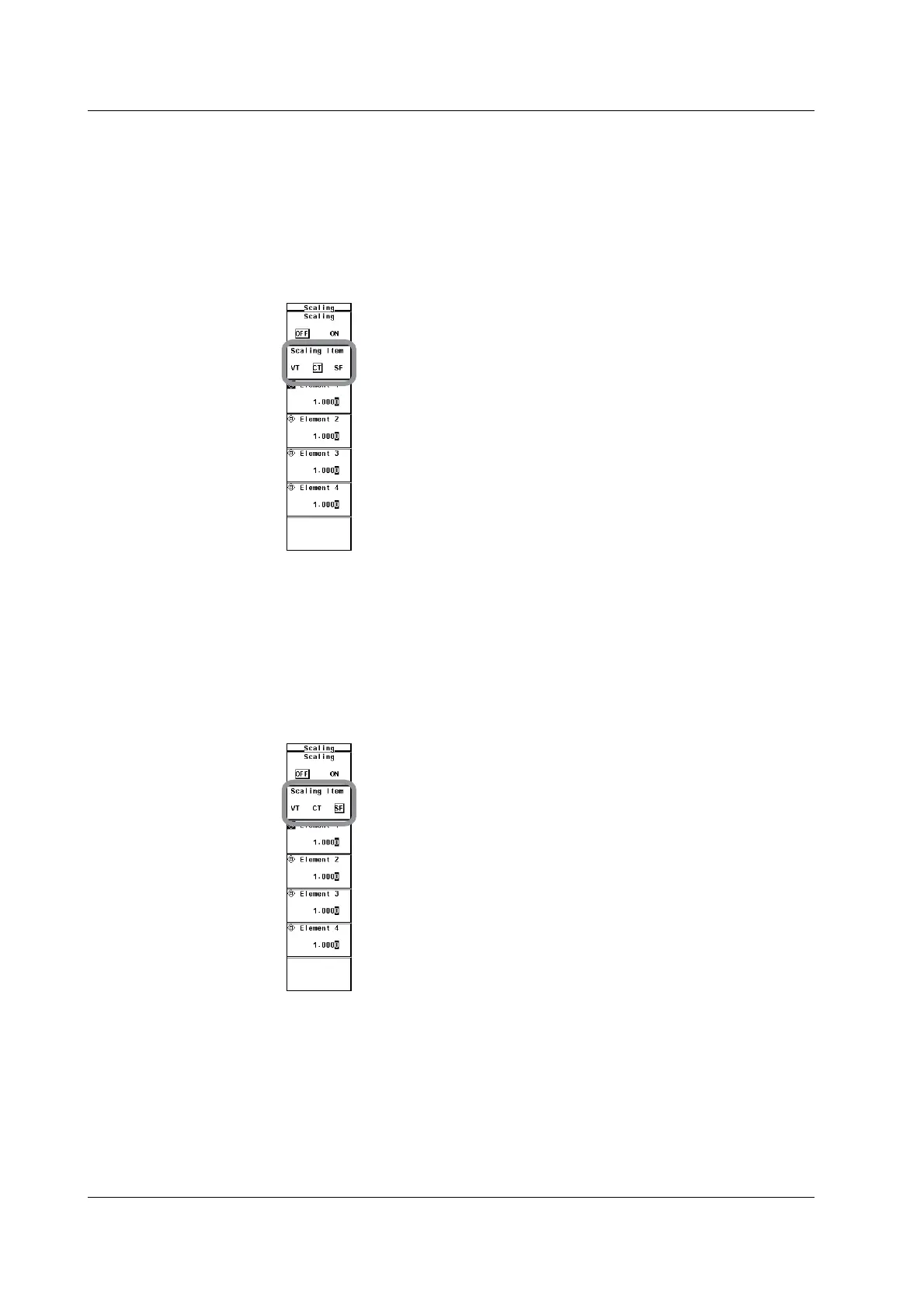

3. Press the Scaling Item soft key to select CT.
• Selecting the Target Element
4. Press one of the soft keys corresponding to the displayed element to select the
target element.
5. Press the cursor keys to set the CT ratio.
6. Repeat steps 4 and 5 to set the CT ratio for all elements.
• Setting the Power Coefficient
3. Press the Scaling Item soft key to select SF (Scaling Factor).
• Selecting the Target Element
4. Press one of the soft keys corresponding to the displayed element to select the
target element.
5. Press the cursor keys to set the power coefficient.
6. Repeat steps 4 and 5 to set the SF ratio for all elements.
4.5 Setting the Scaling Function When Using VT/CT
