8-18 IM 760301-01E
Explanation
• Selecting the Data Type
Select the data type from below. The extension is automatically added.
• ASCII
• Numerical data or waveform display data is saved in ASCII format.
• The file can be used on your PC for analysis.
• The file cannot be loaded into the WT3000.
• Float
• Numeric data or waveform display data is saved in 32-bit floating format.
• The file cannot be loaded into the WT3000.
• Extension and Data Size of the Numeric Data
Data Type Extension Data Size (Bytes)
ASCII .CSV Approx. 5 K (condition: number of elements 1, store item Preset1,
store count 10)
Float .WTD When integration is not performed
Approx. (8 K + (4×D
n
+ 16×number of storage operations))
When integration is performed
Approx. (4K + (8×D
n
+ 16 + 16×T
i
)×number of storage
operations)
D
n
: Number of numerical data to be stored
(Number of measurement functions×(number of elements +
number of wiring units))
T
i
: Number of integration time to be stored
• Extension and Data Size of the Waveform Display Data File
Data Type Extension Data Size (Bytes)
ASCII .CSV Approx. 115 K (condition: when there is one waveform to be
stored, store count 10)
Float .WTD Approx. (4K + (8×1002×T
w
+ 16)×number of storage operations)
T
w
is the number of waveforms to be stored
• Selecting the Medium and Directory

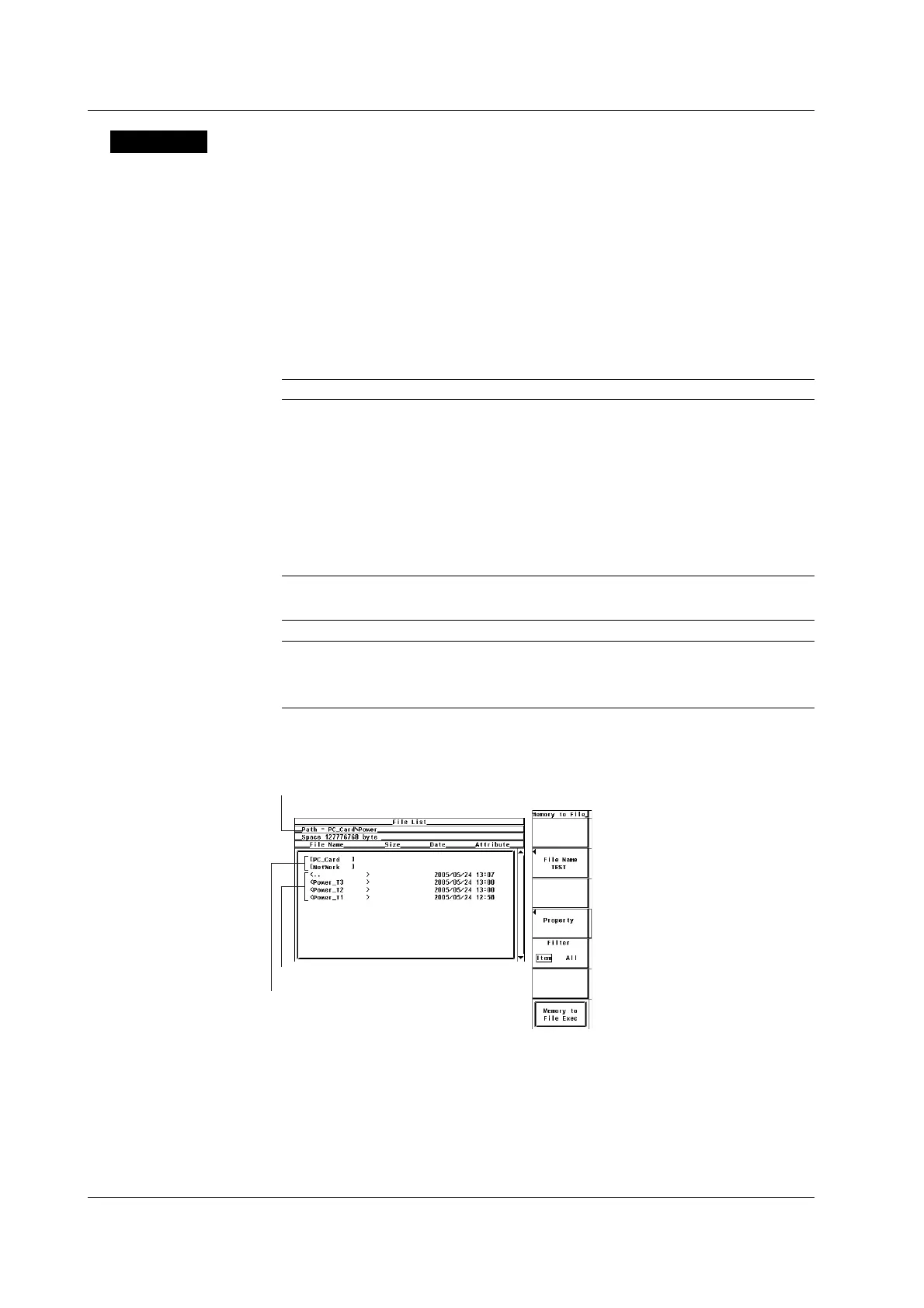

The save destination medium and directory are displayed in the File List dialog box.
Currently selected medium and directory
Directory
Save destination medium
Display Example of Storage Media
[PC_Card]: PC card
[USB2]: USB memory (option) with ID number 2
[NetWork]: Network drive (option. see
Expansion Function User’s Manual IM760301-
51E
)
8.5 Saving the Stored Data
To Next Page
