YOKOGAWA wt3000 User Manual

v
IM 760301-01E
Optional Accessories (Sold Separately)
The optional accessories below are available for purchase separately.
Item Model/ Quantity Note
Part No.
Measurement lead 758917 1 Two leads in one set, used with the
separately sold 758922 or 758929 adapter,
length 0.75 m, ratings 1000 V
Safety terminal adapter set 758923 1 2 pieces in one set. Rated voltage 600 V.
758931 1 2 pieces in one set. Rated voltage 1000 V.
Alligator clip adapter set 758922 1 Two pieces in one set, for the 758917
measurement lead. Rated voltage 300 V
758929 1 Two pieces in one set, for the 758917
measurement lead. Rated voltage 1000 V
Fork terminal 758921 1 Two pieces in one set, for the 758917
measurement lead Rated voltage 1000 V, rated current 25 A
adapter set
BNC-BNC 366924 1 42 V or less, length 1 m
measurement lead 366925 1 42 V or less, length 2 m
External sensor cable B9284LK 1 For connecting the current sensor input
connector of the WT3000, length 0.5 m
Conversion adapter 758924 1 BNC-4 mm socket adapter, rated voltage
500 V
Serial port adapter 366971 1 9 pin
*1
-25 pin
*2
adapter
*1 EIA-574 Standard
*2 EIA-232 Standard (RS-232)

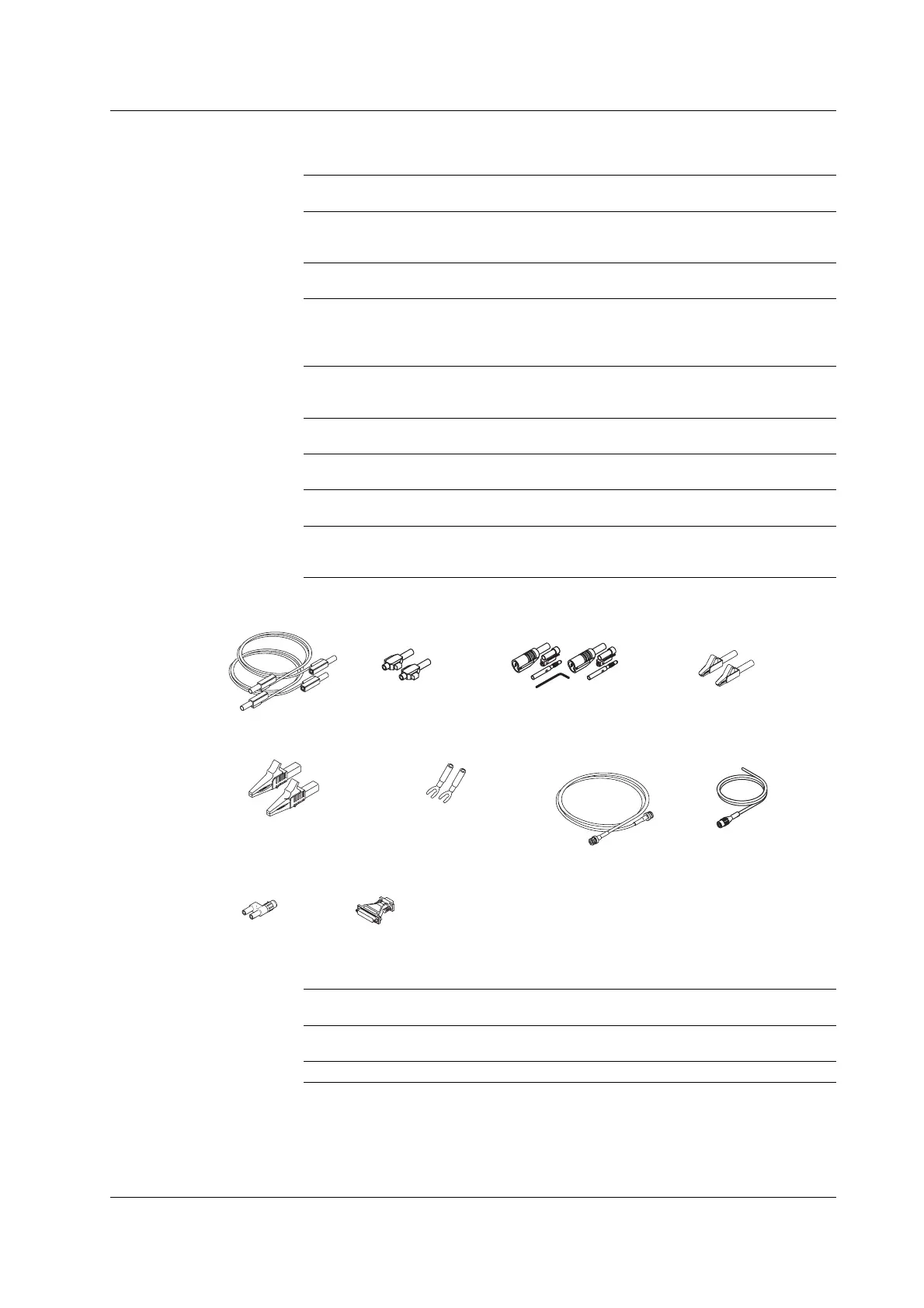

Measurement lead
758917
Alligator clip adapter set
758922
Alligator clip adapter set
758929
Fork terminal
adapter set
758921
Safety terminal
adapter set
758923
External sensor cable
B9284LK
Safety terminal
adapter set
758931
BNC cable
366924 (1 m)
366925 (2 m)
Serial port
adapter
366971
Conversion
adapter
758924
Spare Parts (Sold Separately)
The spare parts below are available for purchase separately.
Item Model/ Quantity Note
Part No.
Printer roll paper B9316FX 10 One roll is one set, thermal-sensitive paper,
total length 10 m
Power fuse A1463EF 2 250 V, 6.3 A, time lag
Checking the Contents of the Package

YOKOGAWA wt3000 Specifications

General

Frequency Range	DC, 0.1 Hz to 1 MHz
Number of Input Elements	Up to 4 elements
Harmonic Measurement	Up to 500th order
Interfaces	USB, Ethernet, RS-232
Sampling Rate	2 MS/s
Voltage Range	1.5 V to 1000 V
Display	8.4-inch LCD
