Setting the Current Mode for Current Integration (q Mode)
4.

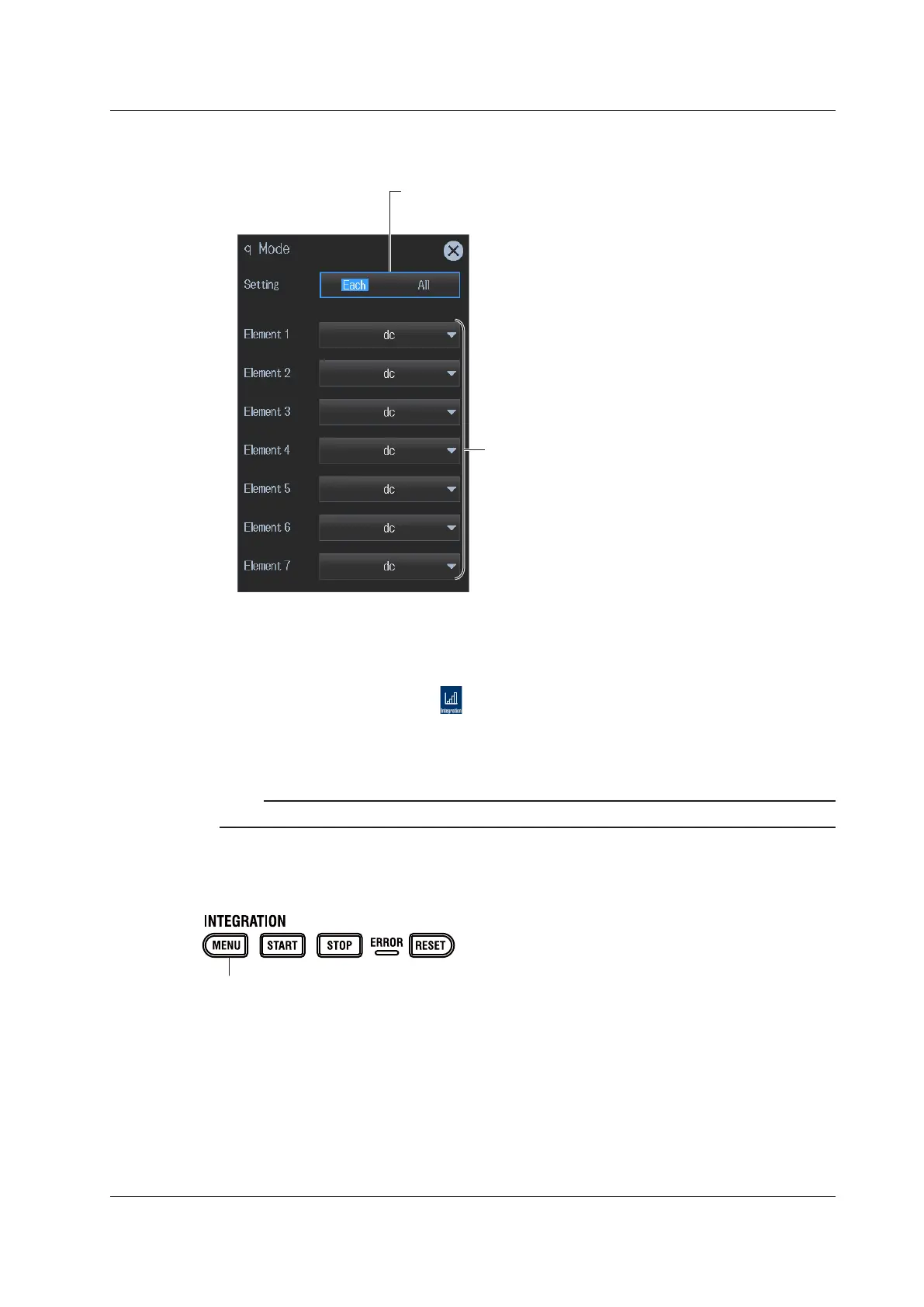

Tap q Mode. The following screen appears.
Select the current mode setup method (Each, All).
When you select Each, you can set the current mode for each input element.
Set the current mode.
(rms, mean, dc, r-mean, ac)
Procedure Using the Menu Icons
You can also use the menu icons shown on the right side of the screen to set the integration
conditions.
1.
Tap the Integration menu icon . An Integration menu appears in the sub menu area on the
right side of the screen.
By tapping the displayed items, you can specify the same settings as when using the screen explained
earlier.
Note
For details on the Integration menu, see page xii.
Procedure Using Keys
You can also use the front panel keys to set integration.
Set the integration conditions.
The Setup menu appears.
4.1 Setting Integration Conditions
