YOKOGAWA WT5000 User Manual

5-2
IM WT5000-02EN
Note
You can also display the computation/output settings overview screen by moving the cursor on the
Computation/Output tab using the arrow keys and then pressing SET.
Setting the Input Element Group (Element Set)
4.

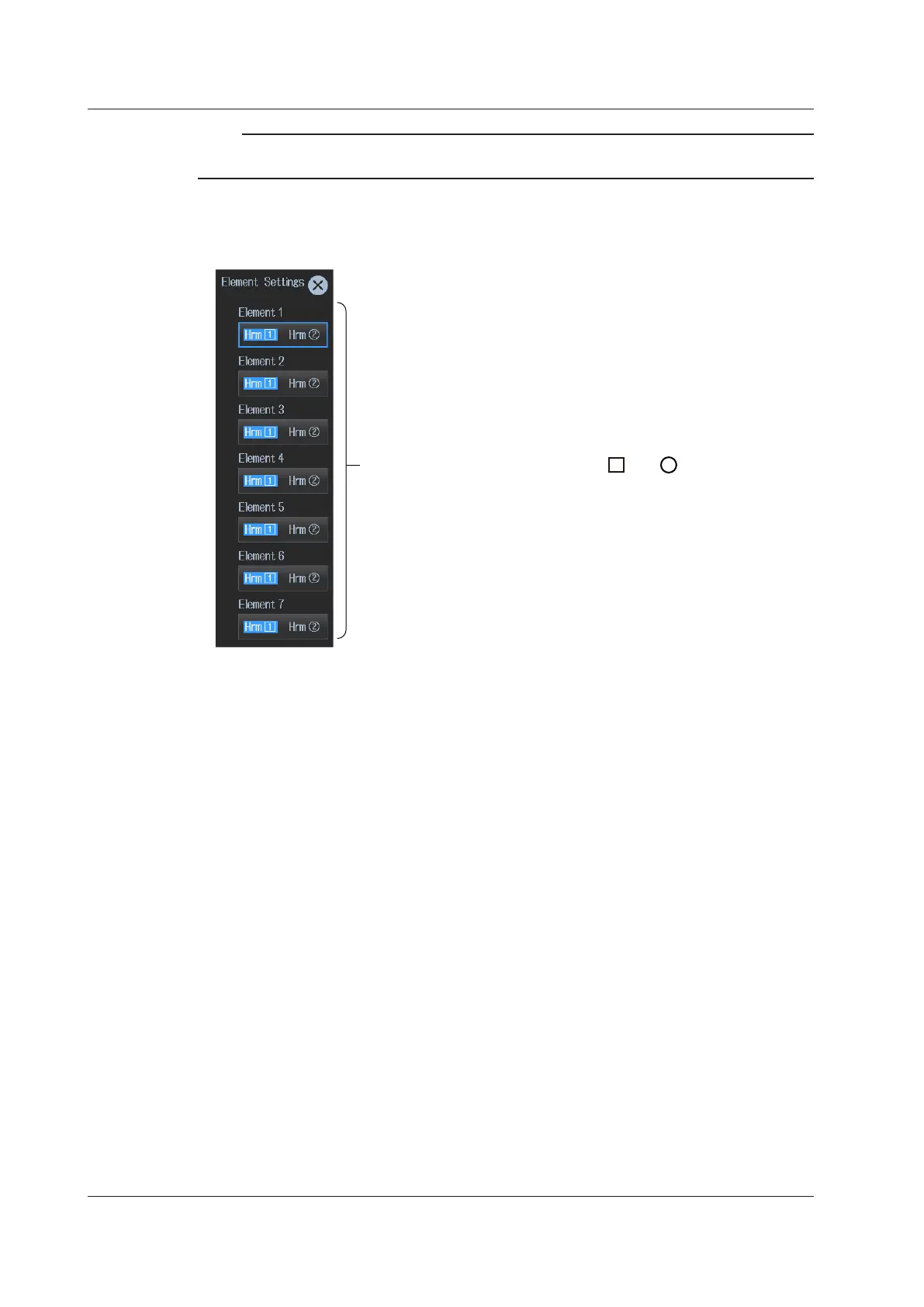

Tap Elements. The Element Settings screen appears.
Configure the input element groups (Hrm 1 , Hrm 2 ).
Input elements that are assigned to the same wiring unit are
set to the same group.
5.1 Setting Harmonic Measurement Conditions

YOKOGAWA WT5000 Specifications

General

Frequency Range	DC, 0.1 Hz to 1 MHz
Number of Channels	Up to 7
Interfaces	USB, Ethernet, GP-IB, RS232
Sampling Rate	10 MS/s
Harmonic Analysis	Up to the 500th order
Weight	Approximately 15 kg
Display	10.1-inch WXGA (1280 x 800) TFT LCD
