Display settings
You can switch the display format of the Numeric (numeric display) and Graph (graph display) screens.
Numeric (numeric display)
Shows only numeric data in a single screen For details on the numeric display,
see chapter 3.
Graph (graph display)
Shows only graphs in a single screen
Numeric (numeric display)/Numeric (numeric display)
Shows numeric data (see chapter 3) in the top and bottom halves of the screen
Numeric (numeric display)/Graph(graph display)
Shows numeric data (see chapter 3) in the top half of the screen and graphs
in the bottom half
Graph (graph display)/Numeric (numeric display)
Show graphs in the top half of the screen and numeric data (see chapter 3)
in the bottom half
Graph (graph display)/Graph (graph display)
Shows graphs in the top and bottom halves of the screen

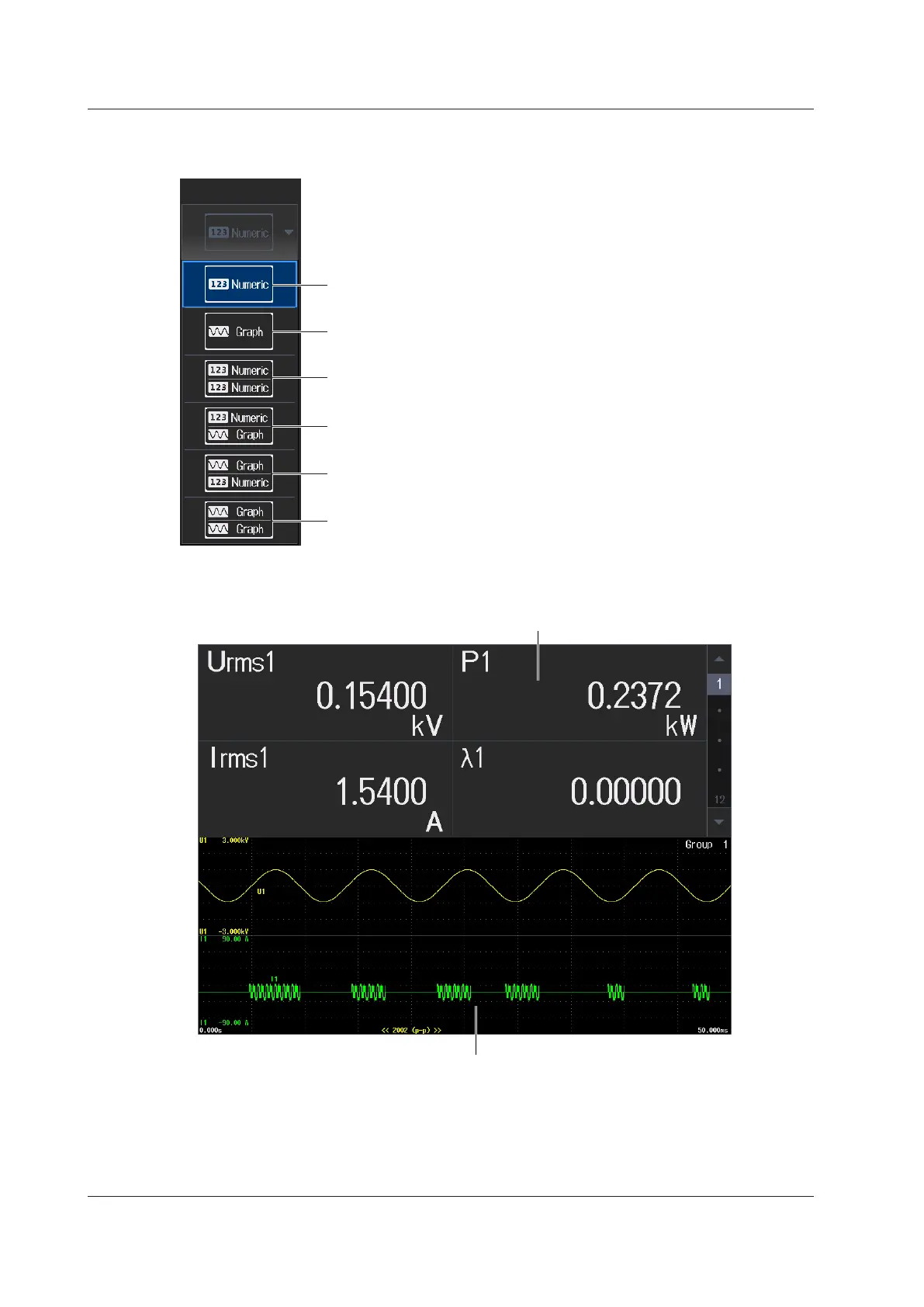

Example of Numeric (numeric display)/Graph(graph display)
Numeric (numeric display) in the top half
For details on the numeric display, see chapter 3.
Graph (waveform display) in the bottom half
6.1 Setting the Display Format
