Integration Icon
Use this icon to set integration conditions.

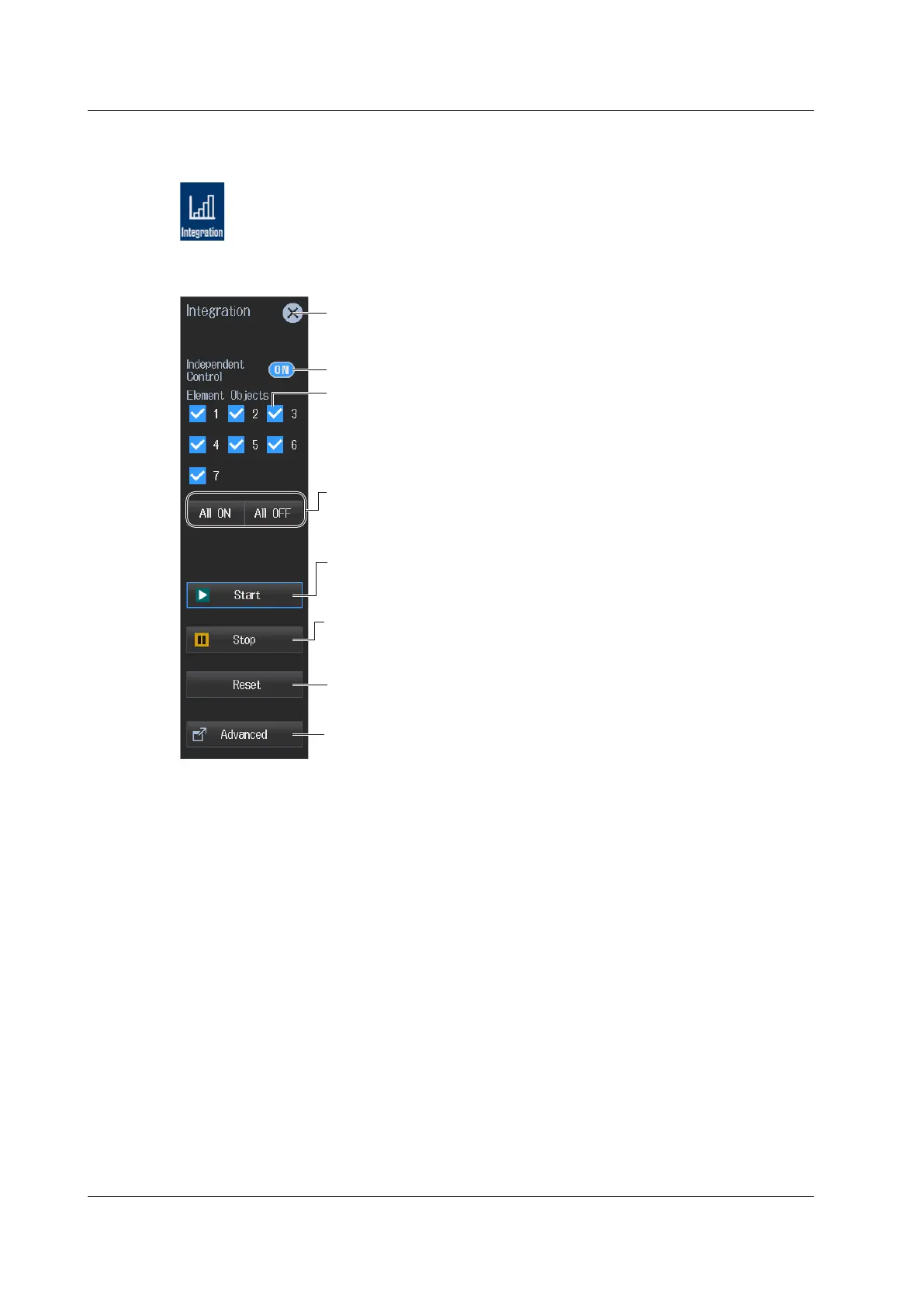

Integration Menu
Closes the menu
Starts integration
Integration starts according to the specified integration conditions (see section 4.1).
The START key in the INTEGRATION area turns on.
Stops integration
Integration stops automatically according to the specified integration conditions.
The START key in the INTEGRATION area turns off, and the STOP key turns on.
Resets the integration time and integrated value.
All integration data is deleted, and the no-data display, “-------,” appears. The
STOP key in the INTEGRATION area turns off.
Turns independent computation on and off
Select the input elements that you want independent computation to
be performed on.
You can set this when independent computation is set to on.
Collectively selects input elements to perform independent computation on.
All ON: All input elements will be selected.
All OFF: All input elements will be unselected.
Set integration conditions (see section 4.1).
When you set the measurement mode (see section 1.1) to “IEC Flicker,” the Integration icon changes
to the Flicker icon. See the next page.
Menu Icons

YOKOGAWA WT5000 Specifications

General

Frequency Range	DC, 0.1 Hz to 1 MHz
Number of Channels	Up to 7
Interfaces	USB, Ethernet, GP-IB, RS232
Sampling Rate	10 MS/s
Harmonic Analysis	Up to the 500th order
Weight	Approximately 15 kg
Display	10.1-inch WXGA (1280 x 800) TFT LCD
