Setting the Display Format (Form)
Set the divisions of the bar graph screen and the range of harmonic orders to display (Start Order, End
Order).
6.

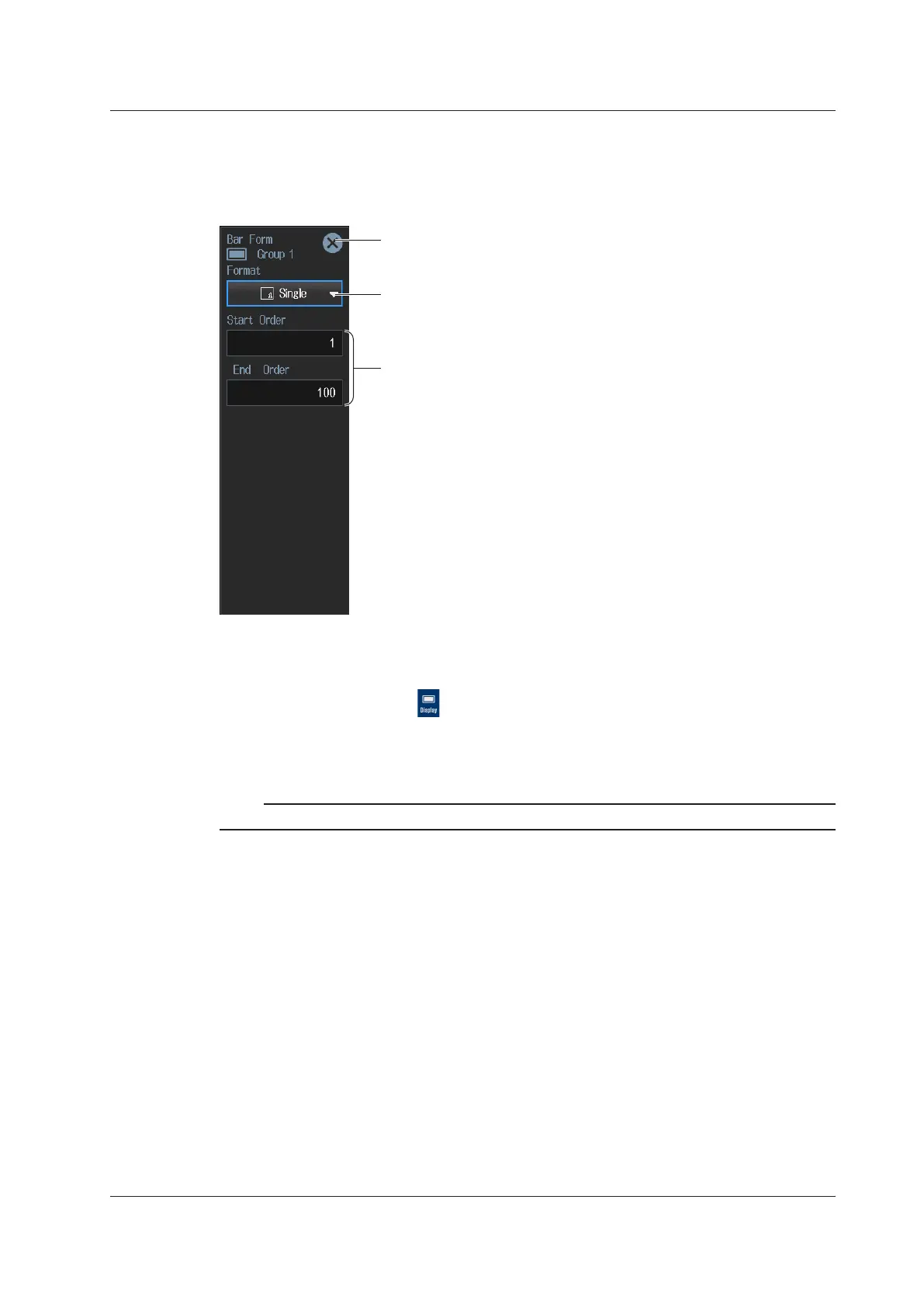

Tap Form. A Bar Form screen appears.
Closes the menu
Set the number of divisions on the bar graph screen (Single, Dual, Triad).
Set the bar graph display range.
• The display’ s starting harmonic order (0 to 490)
• The display’ s ending harmonic order (10 to 500)
You can set the range to any value provided that the end harmonic
order is larger than the start harmonic order by 10 or more.
Procedure Using the Menu Icons
You can also use the menu icons shown on the right side of the screen to switch the displayed items.
1.
Tap the Display menu icon . A Display menu appears in the sub menu area on the right side
of the screen.
By tapping the displayed items, you can specify the same operation as explained in “Switching the
Displayed Items” described earlier.
Note
For details on the Display menu, see page iv.
