7-7
IM WT5000-02EN

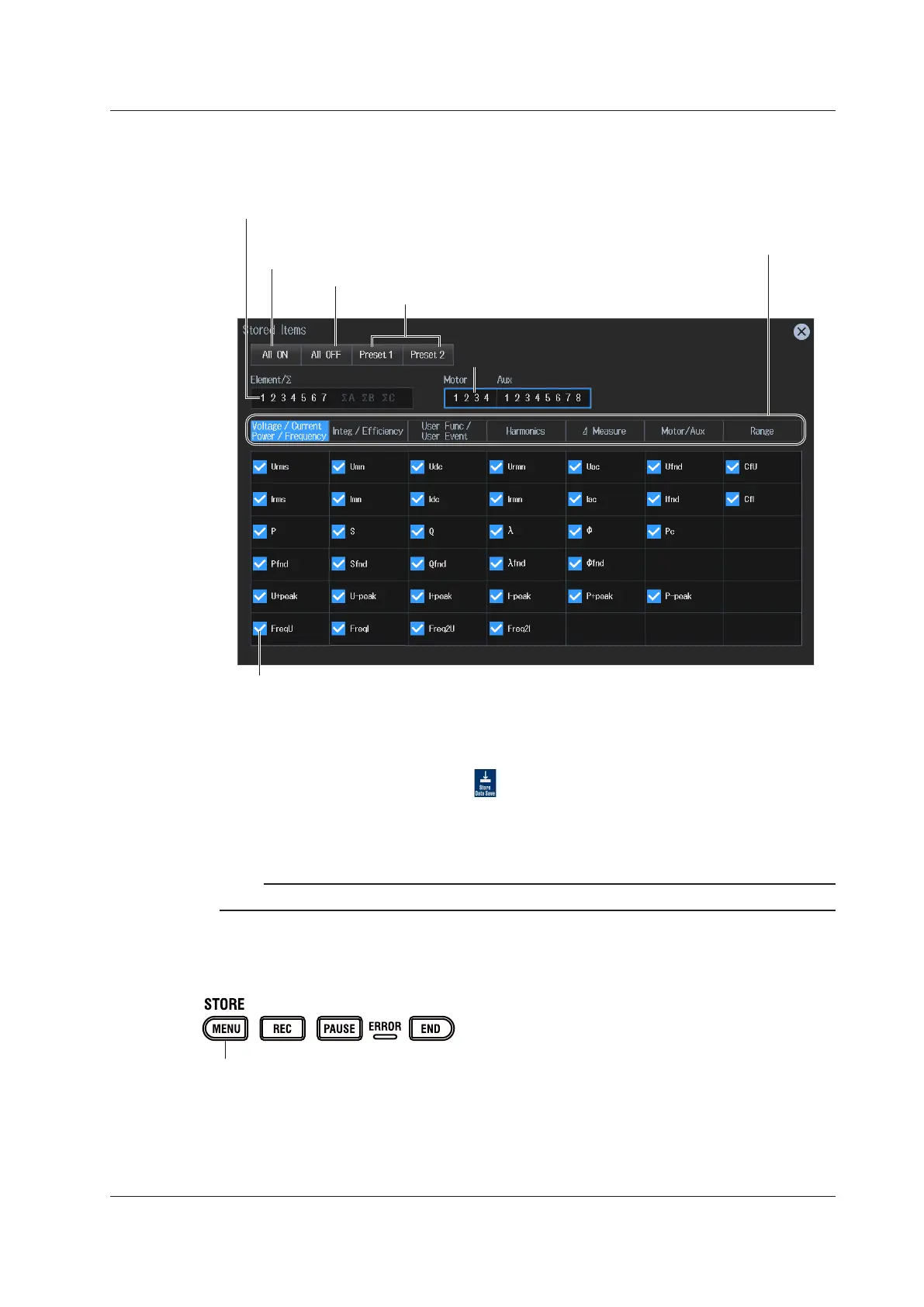

Selecting the Numeric Data Items (Selected Stored Items)
Tap Selected Stored Items for selecting the numeric data items. A Stored Items screen
appears.
Selects all the numeric data items
Clears the selection of all the numeric data items
Selects the preset numeric data items
Select the numeric items that you want to store.
Measurement function group selection buttons
Switch the displayed numeric data items to be stored.
Select the input elements or wiring units to be stored.
Select the motor evaluation configuration
channels to be stored.
Procedure Using the Menu Icons
You can also use the menu icons shown on the right side of the screen to set the storage.
1.
Tap the Store Data Save menu icon . A Store-Save menu appears in the sub menu area on
the right side of the screen.
By tapping the displayed items, you can specify the same settings as when using the screen explained
earlier.
Note
For details on the Store/Data Save menu, see page xi.
Procedure Using Keys
You can also use the front panel keys to set storage.
Configure the storage.
The Setup menu appears.
7.2 Setting Stored Items
To Next Page
