2-14
IM WT5000-02EN
2.4 Setting the Voltage Transformer (VT) and Current Transformer (CT) Ratios
Setting the VT Ratio, CT Ratio, and Power Coefficient (Scaling)
3.

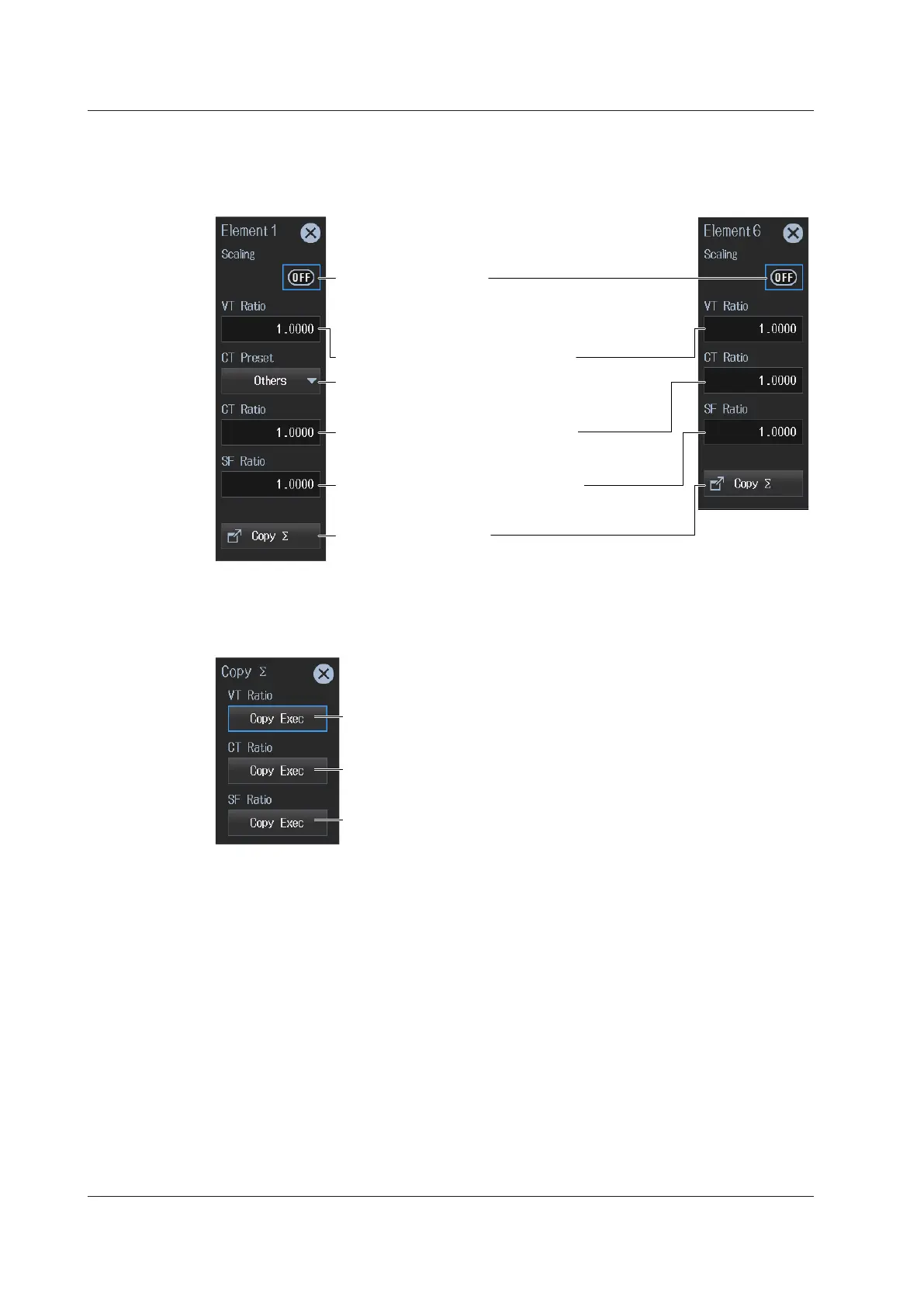

Tap Scaling of the input element number you want to configure. A scaling setup menu appears.
VT ratio, CT ratio, and power coefficient
Input element 760901 or 760902
Input element 760903
Turns scaling on or off
When you want to multiply the external current sensor output by
the conversion ratio and read the current of the circuit under
measurement directly, turn the VT/CT scaling feature off. If it is
turned on, the value will be further multiplied by the CT ratio.
Set the VT ratio (0.0001 to 99999.9999).
Set the CT ratio (0.0001 to 99999.9999).
Set the power coefficient (scaling factor)
(0.0001 to 99999.9999).
Set the CT ratio preset (CT2000A, CT1000A,
CT1000, CT200, CT60, Others).
Set this when using the dedicated CT.
Copies the coefficients
Copying VT Ratio, CT Ratio, and Power Coefficient (Exec Copy Σ)
You can copy the ratio or coefficient of the input element that is indicated by the cursor to all the input
elements in that element's wiring unit.
Copies the VT ratio
Copies the power coefficients
Copies the CT ratio
To Next Page
